| Step | Derivation/Formula | Reasoning |
|---|---|---|

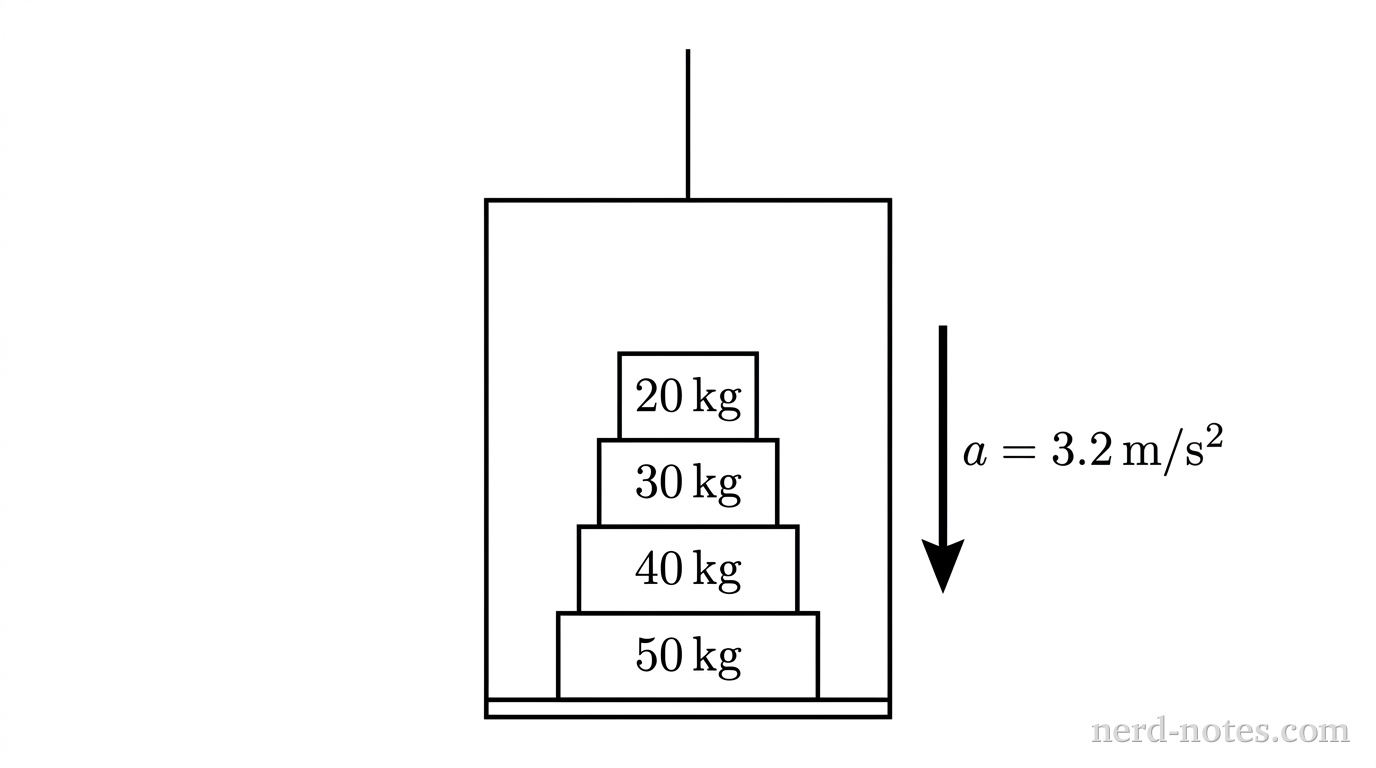

| 1 | \[m_{\text{top}} = 20\,\text{kg} + 30\,\text{kg} = 50\,\text{kg}\] | Combine the masses of the top two blocks (20 kg and 30 kg) that are above the contact between the 30 kg and 40 kg blocks. |
| 2 | \[50\,\text{kg}\,g – F = 50\,\text{kg}\,a\] | Apply Newton’s second law to the combined system. The total weight of the top blocks (\(50\,\text{kg}\,g\)) minus the contact force \(F\) (exerted by the 40 kg block upward on the 30 kg block) must equal the net force needed to accelerate the system downward at \(a = 3.2\,\text{m/s}^2\). |
| 3 | \[F = 50\,\text{kg}\,(g – a)\] | Solve for the contact force \(F\) by isolating it in the equation. |
| 4 | \[F = 50\,\text{kg}\,(9.8\,\text{m/s}^2 – 3.2\,\text{m/s}^2) = 50\,\text{kg}\,(6.6\,\text{m/s}^2) = 330\,\text{N}\] | Substitute \(g = 9.8\,\text{m/s}^2\) and \(a = 3.2\,\text{m/s}^2\) into the equation and calculate the force. |
| 5 | \[\boxed{330\,\text{N}}\] | This is the contact force between the 30 kg and 40 kg masses. |
A Major Upgrade To Phy Is Coming Soon — Stay Tuned
We'll help clarify entire units in one hour or less — guaranteed.
A self paced course with videos, problems sets, and everything you need to get a 5. Trusted by over 15k students and over 200 schools.
Shown above are three masses of \(6 \, \text{kg}\), \(3 \, \text{kg}\), and \(1 \, \text{kg}\) (in order from left to right). You pull on the 1kg mass with a force \(F\) of \(15 \, \text{N}\) along a frictionless surface.
Two blocks made of different materials, connected by a thin cord, slide down a plane ramp inclined at an angle \( \theta = 32^\circ \) above the horizontal. If the coefficients of friction are \( \mu_A = 0.2 \) and \( \mu_B = 0.3 \) and if \( m_A = m_B = 5.0 \) \( \text{kg} \), determine:
In the diagram above, block \(A\) has a mass of \(3.2 \, \text{kg}\) and block \(B\) a mass of \(2.4 \, \text{kg}\). The pulley is frictionless and has no mass.
A \( 1 \) \( \text{kg} \) mass on a \( 37^{\circ} \) incline is connected to a \( 3.0 \) \( \text{kg} \) mass on a horizontal surface, as shown. The surfaces and the pulley are frictionless. If \( F = 12 \) \( \text{N} \):
Block \(m_2\) is stacked on top of block \(m_1\). Block \(m_1\) is connected by a light cord to block \(m_3\), which is pulled along a frictionless surface with a force \(F\) as shown in the diagram above. Block \(m_1\) is accelerated at the same rate as block \(m_2\) because of the frictional forces between the two blocks. If all three blocks have the same mass \(m\), what is the minimum coefficient of static friction between block \(m_1\) and block \(m_2\)?
A person with a weight of \( 600 \) \( \text{N} \) stands on a scale in an elevator. What is the acceleration of the elevator when the scale reads \( 900 \) \( \text{N} \)?
Three blocks of masses \( 1.0 \, \text{kg} \), \( 2.0 \, \text{kg} \), and \( 4.0 \, \text{kg} \) are connected by massless strings, one of which passes over a frictionless pulley of negligible mass, as shown above. Calculate each of the following.
Three blocks of masses \(m_3 = 1.0 \, \text{kg}\), \(m_2 = 2.0 \, \text{kg}\), and \(m_1 = 4.0 \, \text{kg}\) are connected by massless strings, one of which passes over a frictionless pulley of negligible mass, as shown above.
A pulley system consists of two blocks of mass \( 5 \) \( \text{kg} \) and \( 10 \) \( \text{kg} \), connected by a rope of negligible mass that passes over a pulley of radius \( 0.1 \) \( \text{m} \) and mass \( 2 \) \( \text{kg} \). The pulley is free to rotate about its axis. The system is released from rest, and the block of mass \( 10 \) \( \text{kg} \) starts to move downwards. Assume the pulley has a frictional force of \(5.7\) Newtons acting on the outer edge of the pulley.
Three blocks are stacked on top of one another. The top block has a mass of \( 4.6 \, \text{kg} \), the middle one has a mass of \( 1.2 \, \text{kg} \), and the bottom one has a mass of \( 3.7 \, \text{kg} \).
Identify and calculate any normal forces between the objects.
\(330 \, \text{N}\)
