| Step | Reasoning |
|---|---|
| Identify the target quantity and the appropriate kinematic equation. \[ v_f^2 = v_i^2 + 2a\Delta x \] |
The question asks for the stopping distance \( \Delta x \) given initial velocity, final velocity (zero), and constant acceleration. |

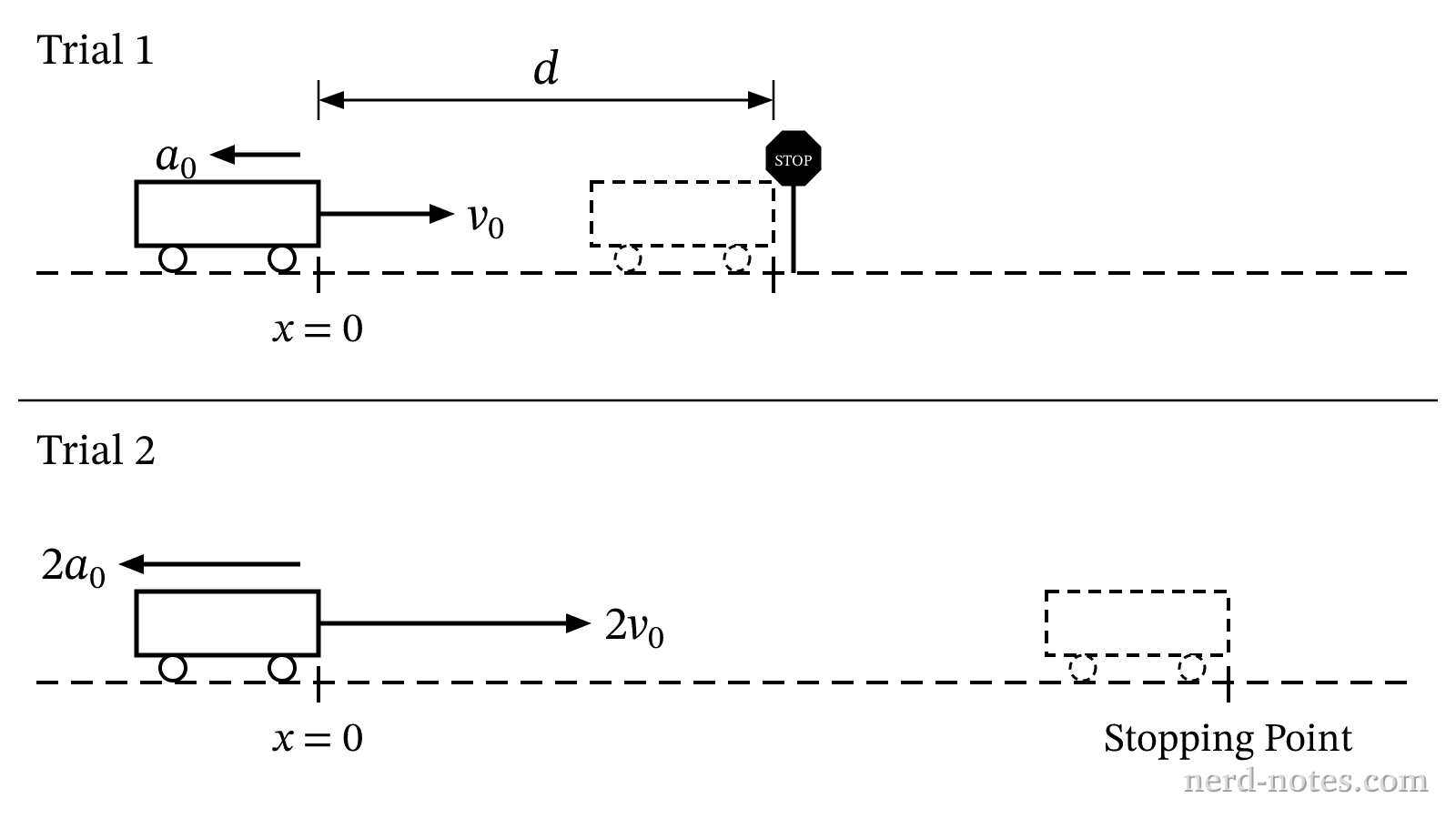

| Express the distance \( d \) from the first trial in terms of the given variables. \[ 0 = v_0^2 + 2(-a_0)d \implies d = \dfrac{v_0^2}{2a_0} \] |
We need a baseline expression to compare the second trial to. Setting \( v_f = 0 \), \( v_i = v_0 \), and the acceleration to \( -a_0 \) (to represent deceleration): |
| Determine the functional dependence of stopping distance on speed and acceleration. \[ \Delta x \propto \dfrac{v_i^2}{a} \] |
This allows us to see how changes in these variables scale the result. |
| Calculate the stopping distance for the second trial using the new parameters. \[ d_{new} = \dfrac{(2v_0)^2}{2(2a_0)} = \dfrac{4v_0^2}{4a_0} = \dfrac{v_0^2}{a_0} \] |
In the second trial, the speed is doubled (\( 2v_0 \)) and the magnitude of deceleration is doubled (\( 2a_0 \)). |
| Compare the new distance to the original distance \( d \). \[ d_{new} = 2 \left( \dfrac{v_0^2}{2a_0} \right) = 2d \] |
The final answer must be in terms of \( d \). |
Why each choice is correct or incorrect:
(A) Incorrectly assumes that doubling speed and doubling deceleration results in half the distance, likely from misarranging the kinematic equation.
(B) Incorrectly assumes stopping distance is linearly proportional to speed, neglecting the squared relationship in the kinematic equation.
(C) This is the correct answer; the squared speed quadruples the distance while the doubled deceleration halves it, resulting in a net factor of 2.
(D) Correctly squares the velocity factor but neglects to divide by the increased factor of acceleration.
A Major Upgrade To Phy Is Coming Soon — Stay Tuned
We'll help clarify entire units in one hour or less — guaranteed.
A self paced course with videos, problems sets, and everything you need to get a 5. Trusted by over 15k students and over 200 schools.
A car travels along a straight road between two cities separated by a total distance of \(2D\). The car travels the first distance \(D\) at a constant speed \(v_0\) and the remaining distance \(D\) at a constant speed \(3v_0\). Which of the following correctly identifies the average speed \(v_{avg}\) of the car for the entire trip and provides a valid justification?
A student conducts a laboratory experiment where a cart is moved \(2.0 \text{ m}\) to the right and then \(1.0 \text{ m}\) to the left along a straight, horizontal track. The student calculates the total distance traveled and the final displacement of the cart. Which of the following correctly classifies these quantities and provides a valid justification?
An experimental automated cart is tested on a linear track. A computer-controlled sensor measures the cart’s velocity \(v\) as a function of time \(t\), as shown in the graph. What is the displacement of the cart during the time interval from \(t = 0 \text{ s}\) to \(t = 10 \text{ s}\)?
A hiker starts at a trailhead and walks \(3.0 \text{ km}\) due North. The hiker then turns and walks \(5.0 \text{ km}\) in a direction \(37^\circ\) South of East to reach a campsite. (Note: \(\sin 37^\circ \approx 0.60\); \(\cos 37^\circ \approx 0.80\)). What is the magnitude of the hiker’s total displacement from the trailhead to the campsite?
A laboratory cart is restricted to motion along a horizontal track. A motion sensor records the direction of the cart’s velocity and the direction of its acceleration at three different times, as shown in the table below.
| Time | Direction of Velocity | Direction of Acceleration |
| :— | :— | :— |
| \(t_1\) | Right | Left |
| \(t_2\) | Left | Left |
| \(t_3\) | Left | Right |
Which of the following correctly describes the motion of the cart at each time?
A test rocket moves along a straight, horizontal track. A sensor records the rocket’s acceleration as a function of time, as shown in the graph below.
What is the average acceleration of the rocket during the time interval from \(t = 0 \text{ s}\) to \(t = 5 \text{ s}\)?
A sprinter crosses the finish line of a race moving with a velocity of \(12 \text{ m/s}\). The sprinter continues to run at this constant velocity for a reaction time of \(1.0 \text{ s}\) before beginning to slow down with a constant acceleration. If the sprinter comes to a complete stop exactly \(4.0 \text{ s}\) after crossing the finish line, what is the magnitude of the sprinter’s acceleration during the braking phase?
A surveyor starts at point \(P\) and walks a distance \(d\) due north. The surveyor then turns and walks an equal distance \(d\) in a direction \(60^{\circ}\) west of north to reach point \(Q\). What is the magnitude of the surveyor’s total displacement from point \(P\) to point \(Q\)?
A small experimental vehicle starts from rest and accelerates with a constant acceleration \(a\) over a horizontal distance \(d\). After this distance, the vehicle’s engine is adjusted such that it continues to accelerate at a constant rate of \(\dfrac{a}{2}\) for an additional horizontal distance \(d\). Which of the following expressions represents the speed of the vehicle after it has traveled the total distance \(2d\)?
A cyclist starts from rest and moves along a straight horizontal path with a constant acceleration \(a\) for a distance \(D\). Immediately after reaching distance \(D\), the cyclist begins to slow down with a constant acceleration of magnitude \(2a\) until coming to a complete stop. Which of the following expressions represents the total time the cyclist was in motion?
C
By continuing you (1) agree to our Terms of Use and Terms of Sale and (2) consent to sharing your IP and browser information used by this site’s security protocols as outlined in our Privacy Policy.
| Kinematics | Forces |
|---|---|
| \(\Delta x = v_i t + \frac{1}{2} at^2\) | \(F = ma\) |
| \(v = v_i + at\) | \(F_g = \frac{G m_1 m_2}{r^2}\) |
| \(v^2 = v_i^2 + 2a \Delta x\) | \(f = \mu N\) |
| \(\Delta x = \frac{v_i + v}{2} t\) | \(F_s =-kx\) |
| \(v^2 = v_f^2 \,-\, 2a \Delta x\) |
| Circular Motion | Energy |
|---|---|
| \(F_c = \frac{mv^2}{r}\) | \(KE = \frac{1}{2} mv^2\) |
| \(a_c = \frac{v^2}{r}\) | \(PE = mgh\) |
| \(T = 2\pi \sqrt{\frac{r}{g}}\) | \(KE_i + PE_i = KE_f + PE_f\) |
| \(W = Fd \cos\theta\) |
| Momentum | Torque and Rotations |
|---|---|
| \(p = mv\) | \(\tau = r \cdot F \cdot \sin(\theta)\) |
| \(J = \Delta p\) | \(I = \sum mr^2\) |
| \(p_i = p_f\) | \(L = I \cdot \omega\) |
| Simple Harmonic Motion | Fluids |
|---|---|
| \(F = -kx\) | \(P = \frac{F}{A}\) |
| \(T = 2\pi \sqrt{\frac{l}{g}}\) | \(P_{\text{total}} = P_{\text{atm}} + \rho gh\) |
| \(T = 2\pi \sqrt{\frac{m}{k}}\) | \(Q = Av\) |
| \(x(t) = A \cos(\omega t + \phi)\) | \(F_b = \rho V g\) |
| \(a = -\omega^2 x\) | \(A_1v_1 = A_2v_2\) |
| Constant | Description |
|---|---|
| [katex]g[/katex] | Acceleration due to gravity, typically [katex]9.8 , \text{m/s}^2[/katex] on Earth’s surface |
| [katex]G[/katex] | Universal Gravitational Constant, [katex]6.674 \times 10^{-11} , \text{N} \cdot \text{m}^2/\text{kg}^2[/katex] |
| [katex]\mu_k[/katex] and [katex]\mu_s[/katex] | Coefficients of kinetic ([katex]\mu_k[/katex]) and static ([katex]\mu_s[/katex]) friction, dimensionless. Static friction ([katex]\mu_s[/katex]) is usually greater than kinetic friction ([katex]\mu_k[/katex]) as it resists the start of motion. |
| [katex]k[/katex] | Spring constant, in [katex]\text{N/m}[/katex] |
| [katex] M_E = 5.972 \times 10^{24} , \text{kg} [/katex] | Mass of the Earth |
| [katex] M_M = 7.348 \times 10^{22} , \text{kg} [/katex] | Mass of the Moon |
| [katex] M_M = 1.989 \times 10^{30} , \text{kg} [/katex] | Mass of the Sun |
| Variable | SI Unit |
|---|---|
| [katex]s[/katex] (Displacement) | [katex]\text{meters (m)}[/katex] |
| [katex]v[/katex] (Velocity) | [katex]\text{meters per second (m/s)}[/katex] |
| [katex]a[/katex] (Acceleration) | [katex]\text{meters per second squared (m/s}^2\text{)}[/katex] |
| [katex]t[/katex] (Time) | [katex]\text{seconds (s)}[/katex] |
| [katex]m[/katex] (Mass) | [katex]\text{kilograms (kg)}[/katex] |
| Variable | Derived SI Unit |
|---|---|
| [katex]F[/katex] (Force) | [katex]\text{newtons (N)}[/katex] |
| [katex]E[/katex], [katex]PE[/katex], [katex]KE[/katex] (Energy, Potential Energy, Kinetic Energy) | [katex]\text{joules (J)}[/katex] |
| [katex]P[/katex] (Power) | [katex]\text{watts (W)}[/katex] |
| [katex]p[/katex] (Momentum) | [katex]\text{kilogram meters per second (kgm/s)}[/katex] |
| [katex]\omega[/katex] (Angular Velocity) | [katex]\text{radians per second (rad/s)}[/katex] |
| [katex]\tau[/katex] (Torque) | [katex]\text{newton meters (Nm)}[/katex] |
| [katex]I[/katex] (Moment of Inertia) | [katex]\text{kilogram meter squared (kgm}^2\text{)}[/katex] |
| [katex]f[/katex] (Frequency) | [katex]\text{hertz (Hz)}[/katex] |
Metric Prefixes
Example of using unit analysis: Convert 5 kilometers to millimeters.
Start with the given measurement: [katex]\text{5 km}[/katex]
Use the conversion factors for kilometers to meters and meters to millimeters: [katex]\text{5 km} \times \frac{10^3 \, \text{m}}{1 \, \text{km}} \times \frac{10^3 \, \text{mm}}{1 \, \text{m}}[/katex]
Perform the multiplication: [katex]\text{5 km} \times \frac{10^3 \, \text{m}}{1 \, \text{km}} \times \frac{10^3 \, \text{mm}}{1 \, \text{m}} = 5 \times 10^3 \times 10^3 \, \text{mm}[/katex]
Simplify to get the final answer: [katex]\boxed{5 \times 10^6 \, \text{mm}}[/katex]
Prefix | Symbol | Power of Ten | Equivalent |
|---|---|---|---|
Pico- | p | [katex]10^{-12}[/katex] | |
Nano- | n | [katex]10^{-9}[/katex] | |
Micro- | µ | [katex]10^{-6}[/katex] | |
Milli- | m | [katex]10^{-3}[/katex] | |
Centi- | c | [katex]10^{-2}[/katex] | |
Deci- | d | [katex]10^{-1}[/katex] | |
(Base unit) | – | [katex]10^{0}[/katex] | |
Deca- or Deka- | da | [katex]10^{1}[/katex] | |
Hecto- | h | [katex]10^{2}[/katex] | |
Kilo- | k | [katex]10^{3}[/katex] | |
Mega- | M | [katex]10^{6}[/katex] | |
Giga- | G | [katex]10^{9}[/katex] | |
Tera- | T | [katex]10^{12}[/katex] |
