9.5 Specific Heat and Thermal Conductivity
IntermediateMCQProportional AnalysisConceptual22.7k

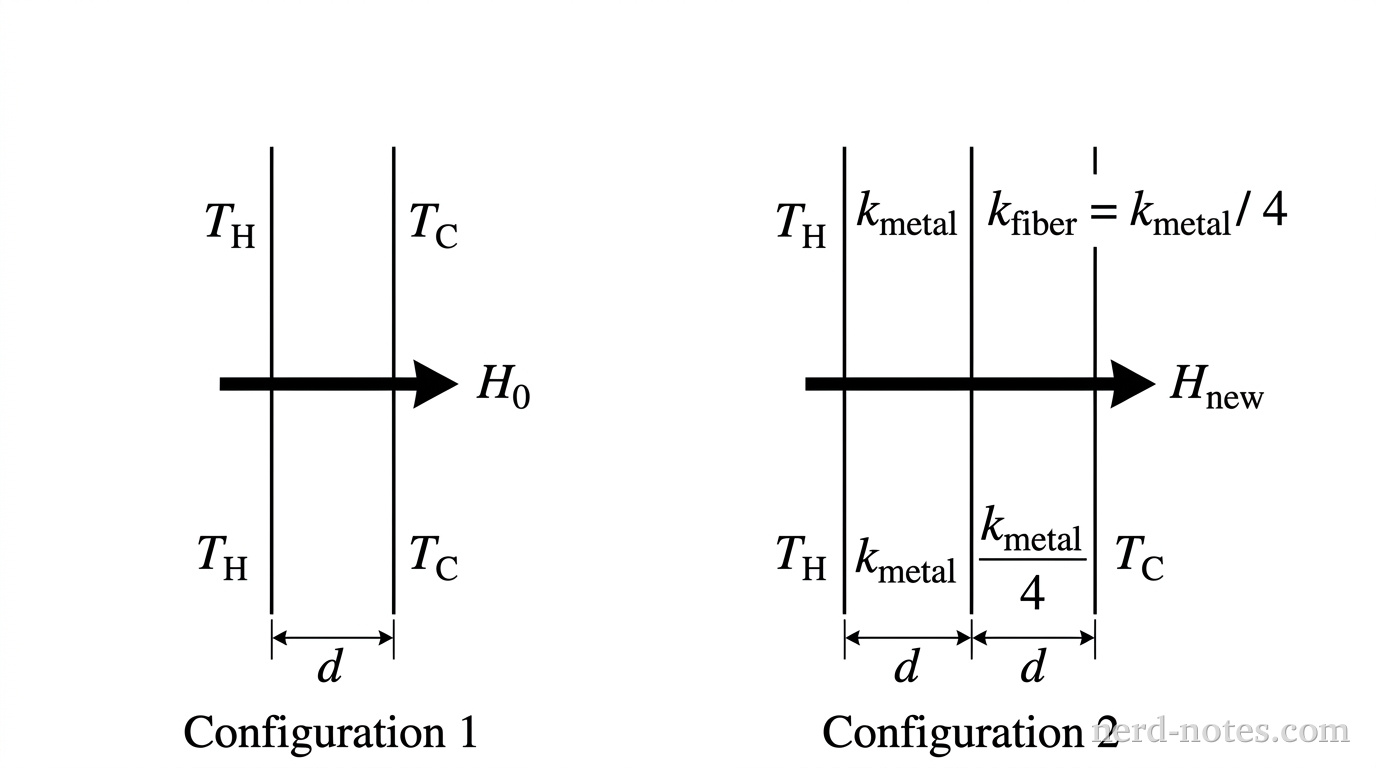

Two side-by-side cross-sectional diagrams labeled Configuration 1 and Configuration 2. On the left, Configuration 1 shows a single vertical wall layer of thickness d with temperature T_H on the left face and T_C on the right face. A horizontal arrow pointing right through the wall is labeled H_0. On the right, Configuration 2 shows two adjacent vertical wall layers each of thickness d. The left layer is labeled k_metal and the right layer is labeled k_fiber = k_metal / 4. Temperature T_H is on the far-left face and T_C is on the far-right face. A horizontal arrow pointing right through both layers is labeled H_new. No other labels, lines, text, or axes appear.

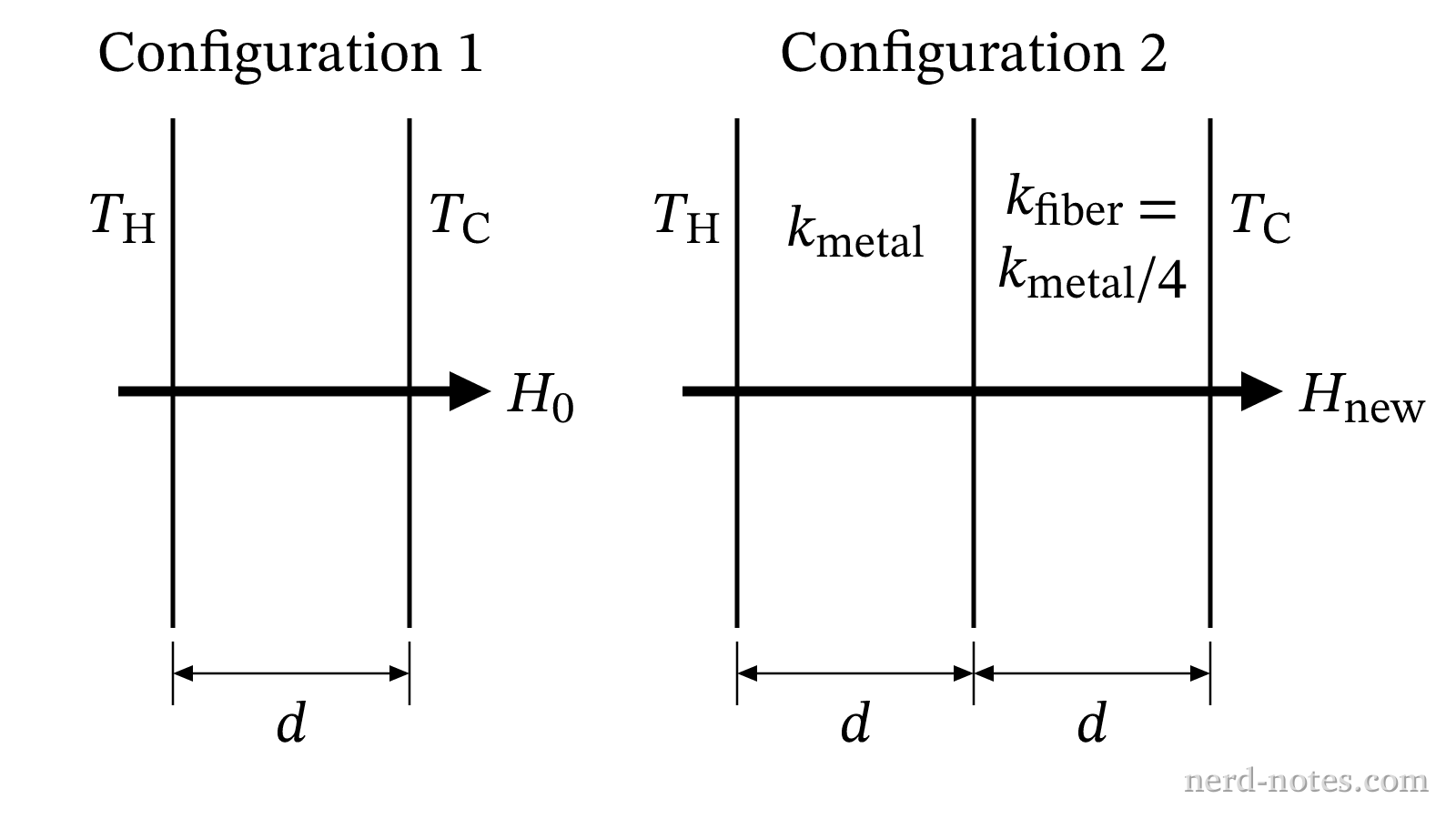

Cross sections of uninsulated and insulated wall configurations.
A flat metal wall of a storage tank has a thickness \(d\) and thermal conductivity \(k_{\text{metal}}\). Thermal energy transfers through the wall at a rate \(H_0\) when a constant temperature difference \(\Delta T\) is maintained across its inner and outer surfaces. To reduce heat transfer, a layer of fiberglass insulation of the same thickness \(d\) and thermal conductivity \(k_{\text{fiber}} = \dfrac{1}{4}k_{\text{metal}}\) is added directly to the outer surface of the wall, while maintaining the same overall temperature difference \(\Delta T\) across the combined two-layer boundary. What is the ratio \(H_{\text{new}} / H_0\) of the new rate of thermal energy transfer to the original rate?
