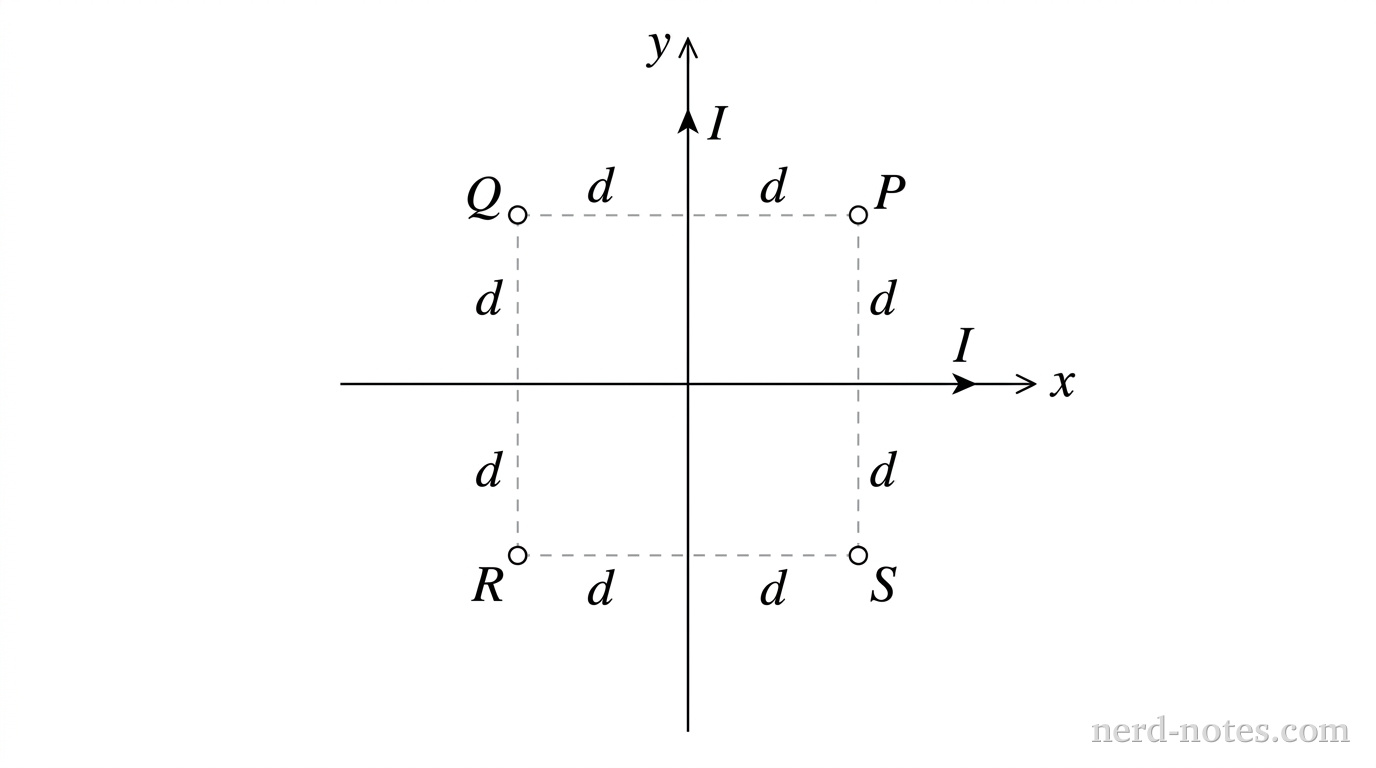

A two-dimensional Cartesian coordinate system showing two long, thin, perpendicular straight wires lying along the x-axis and y-axis. The wire along the x-axis carries a current I in the positive x-direction, indicated by an arrow pointing right labeled I. The wire along the y-axis carries an equal current I in the positive y-direction, indicated by an arrow pointing up labeled I. Four points are labeled in the four quadrants, each at a distance d from both axes: point P at (d, d) in Quadrant I, point Q at (-d, d) in Quadrant II, point R at (-d, -d) in Quadrant III, and point S at (d, -d) in Quadrant IV. No other labels, lines, text, or axes appear.
Two perpendicular current-carrying wires and four surrounding points.
Two long, straight, perpendicular wires lie in the xy-plane along the x-axis and y-axis. Each wire carries an electric current of equal magnitude \(I\), with current flowing in the \(+x\)-direction along the x-axis and in the \(+y\)-direction along the y-axis. Four points—\(P\), \(Q\), \(R\), and \(S\)—are located in the four quadrants, each at a distance \(d\) from both wires, as shown in the figure. Which of the following correctly ranks the magnitude of the net magnetic field \(B\) at these four points?
