AP Physics 2
10.6 Capacitors
IntermediateMCQProportional AnalysisConceptual24.9k

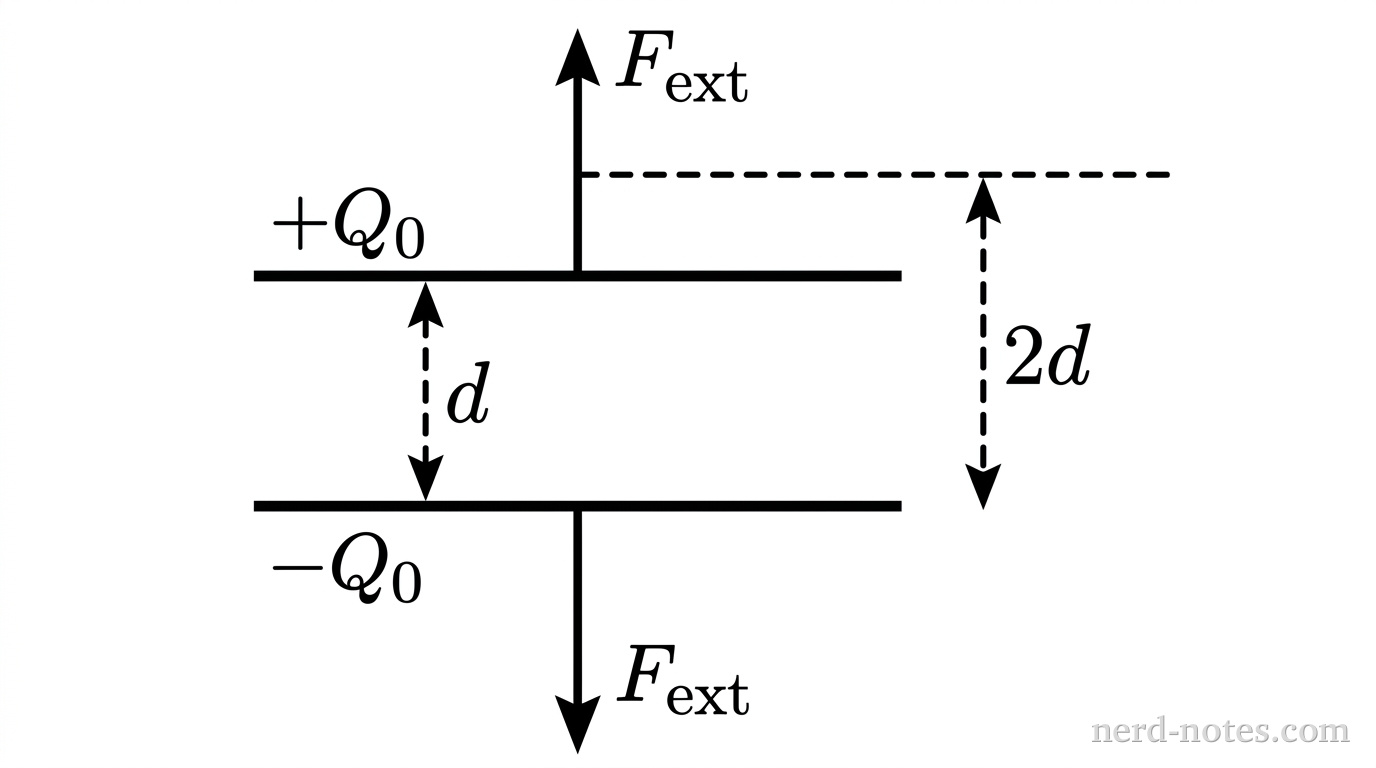

Two parallel horizontal conducting plates are shown in side-view as thick horizontal line segments separated vertically by distance d. The top plate is labeled +Q_0 and the bottom plate is labeled -Q_0. A dashed vertical dimension line between the plates is labeled d. An upward vertical arrow above the top plate and a downward vertical arrow below the bottom plate are both labeled F_{ext}. A dashed outline above the top plate indicates its displaced position, with a second vertical dimension line indicating a new separation distance of 2d. No other labels, lines, text, or axes appear.

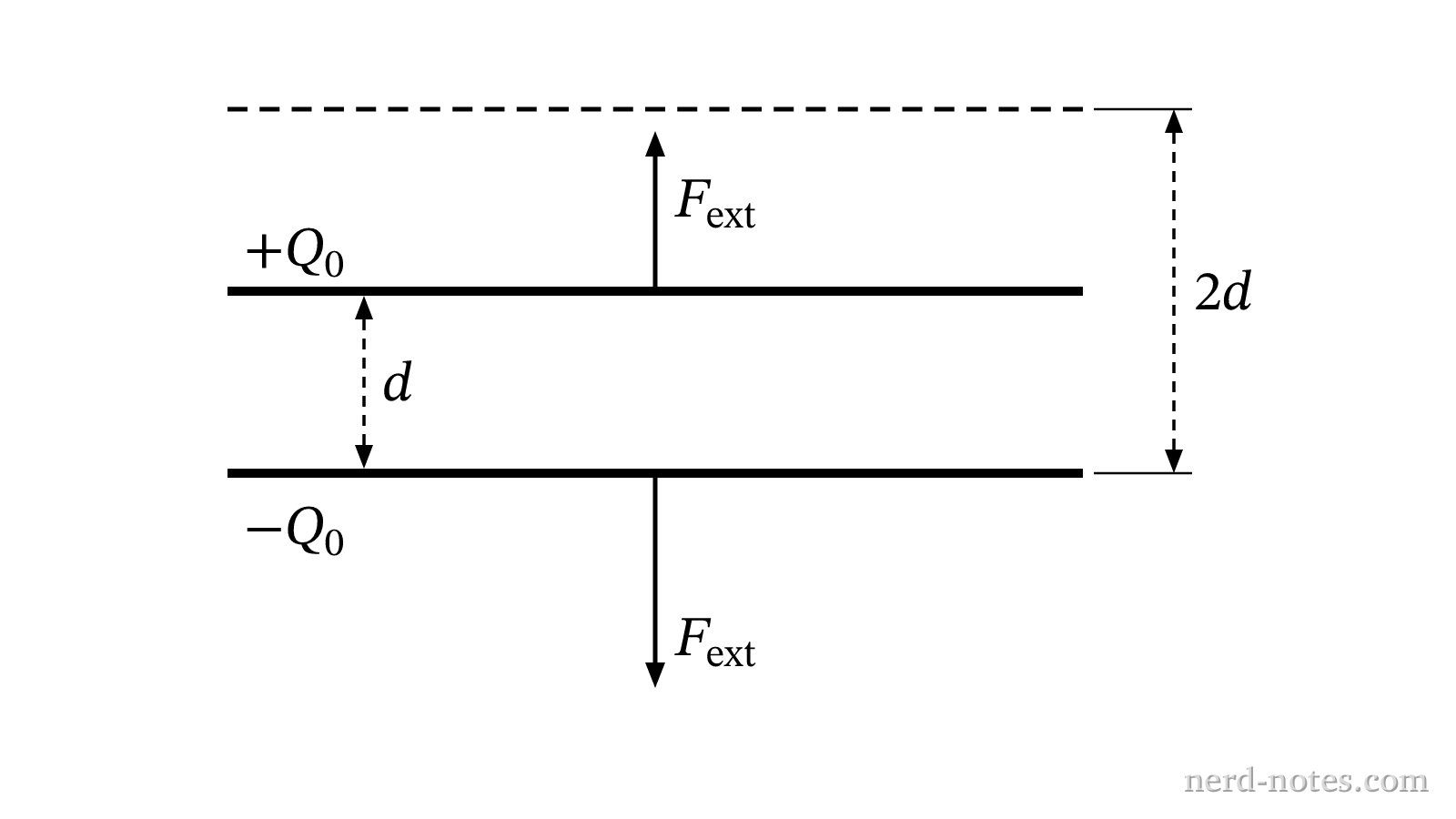

A charged, isolated parallel-plate capacitor being pulled apart.
A parallel-plate capacitor with capacitance \(C_0\) is connected to a battery of potential difference \(V_0\) until fully charged, storing total charge \(Q_0\). The capacitor is then disconnected from the battery. An external force then slowly pulls the plates apart, increasing their separation from \(d\) to \(2d\). Which of the following correctly describes the change in the electric potential energy stored in the capacitor and provides the correct physical justification?
