11.1 Electric Current
IntermediateMCQGraphicalMathematical15.4k

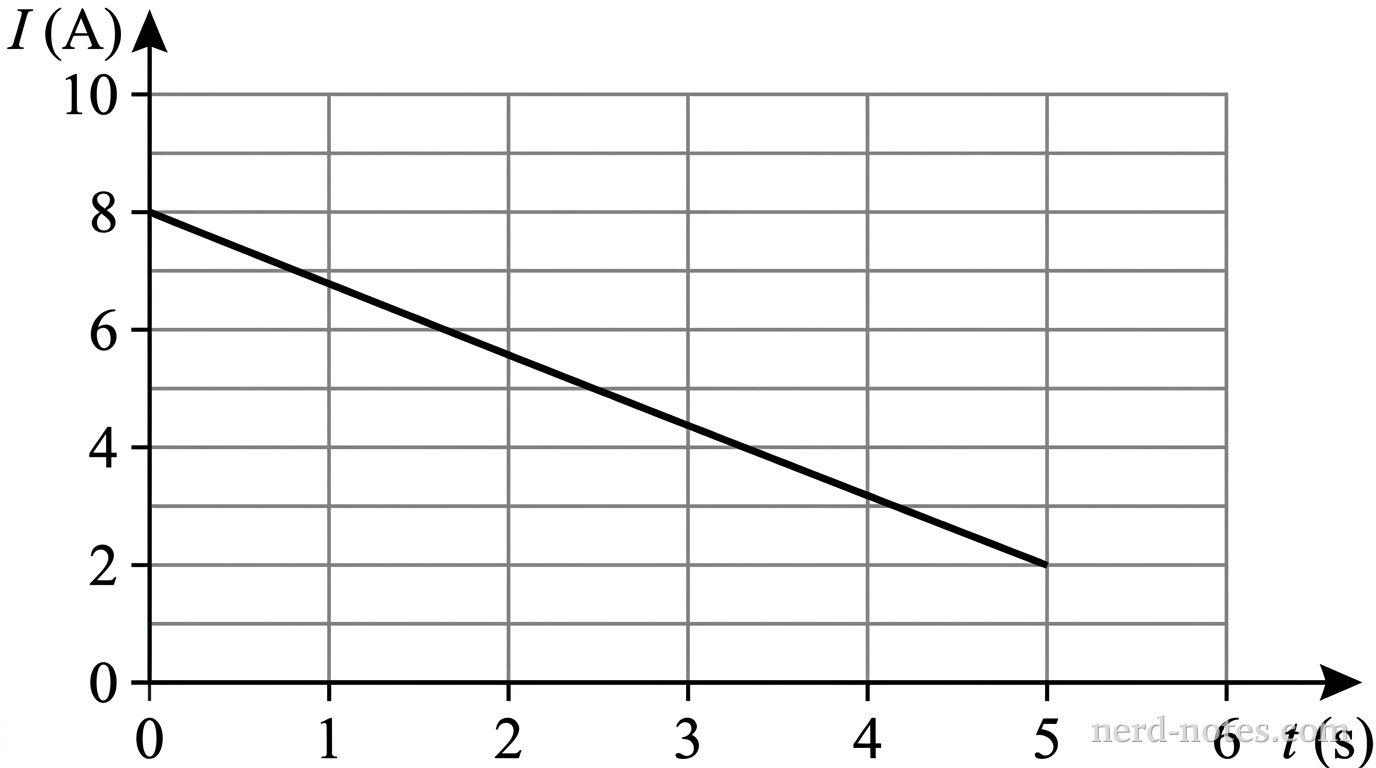

A line graph plotting current I in amperes on the vertical axis versus time t in seconds on the horizontal axis. The vertical axis ranges from 0 to 10 A with grid lines every 2 A. The horizontal axis ranges from 0 to 6 s with grid lines every 1 s. A solid line segment starts at point (0, 8.0) and decreases linearly to point (5.0, 2.0). Axis labels are I (A) for the vertical axis and t (s) for the horizontal axis. No other labels or lines appear.
Current I as a function of time t.
A variable potential difference is applied across a circuit component, causing the electric current \(I\) through a cross section of the component to vary with time \(t\) as shown in the graph. What is the total electric charge that passes through the cross section of the component between \(t = 0\text{ s}\) and \(t = 5.0\text{ s}\)?
