11.3 Resistance, Resistivity, and Ohm’s Law
IntermediateMCQGraphicalMathematical13.2k

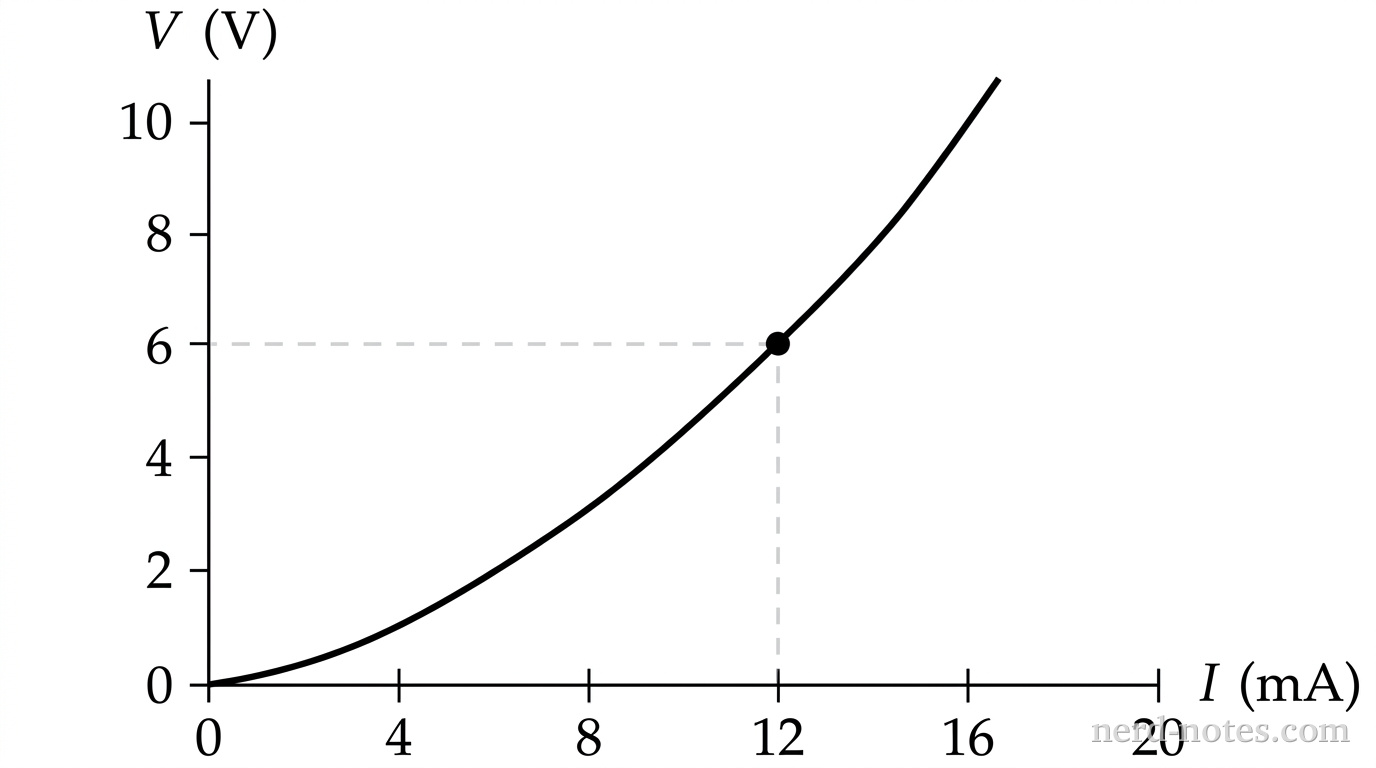

Graph of potential difference vs. current for the non-ohmic element.
Graph of potential difference vs. current for the non-ohmic element.
A non-ohmic circuit element is connected in a test circuit, and the potential difference \(V\) across the element is measured for various values of current \(I\). The resulting graph of potential difference \(V\) as a function of current \(I\) is shown. Based on the graph, what is the resistance of the circuit element when the operating voltage across it is \(6.0\text{ V}\)?
