AdvancedMCQGraphicalMathematicalConceptual21.5k

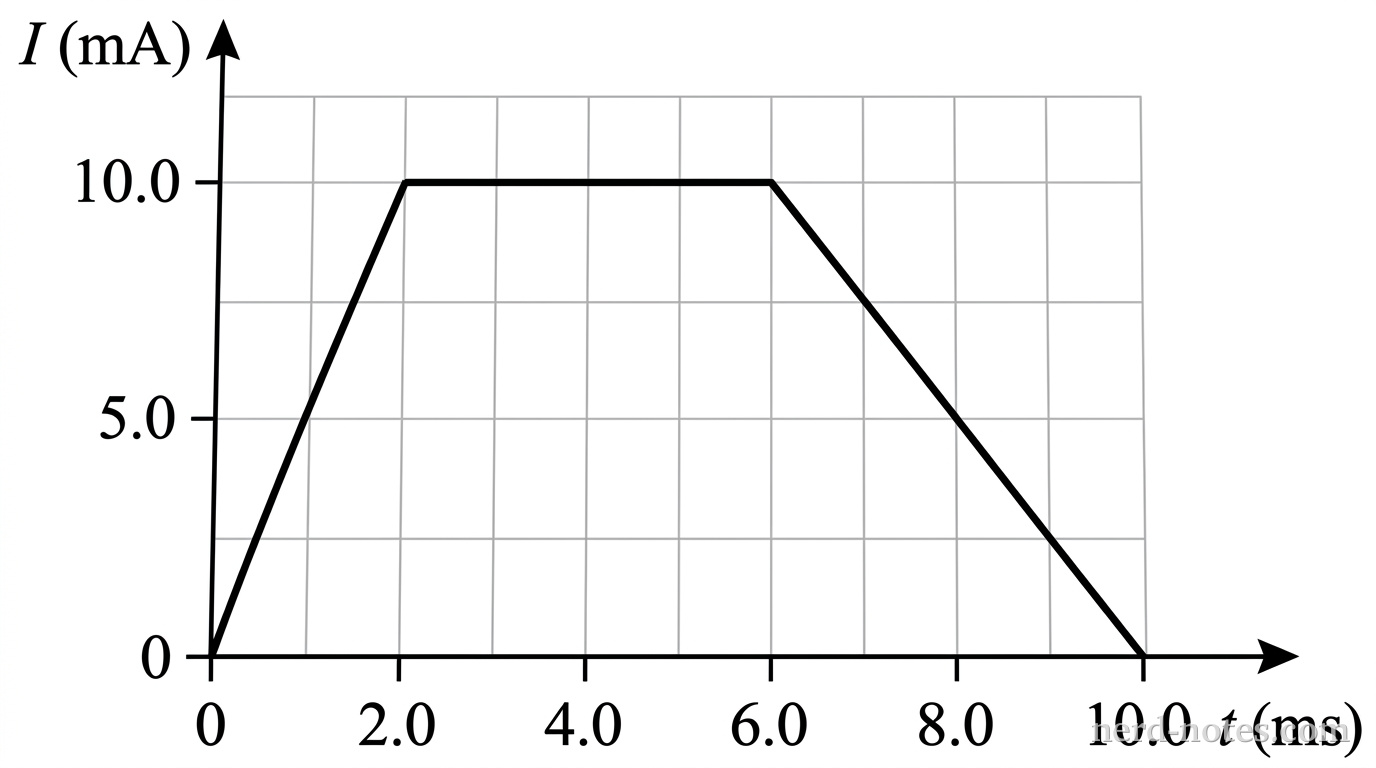

A graph of current I in milliamperes (mA) versus time t in milliseconds (ms). The vertical axis is labeled 'Current I (mA)' with tick marks at 0, 5.0, and 10.0. The horizontal axis is labeled 'Time t (ms)' with tick marks at 0, 2.0, 4.0, 6.0, 8.0, and 10.0. A straight line segment starts at the origin (0, 0) and rises linearly to (2.0, 10.0). A horizontal straight line segment extends from (2.0, 10.0) to (6.0, 10.0). A third straight line segment falls linearly from (6.0, 10.0) to (10.0, 0). Gridlines extend across the plot area for ease of reading. No other labels, lines, text, or axes appear.

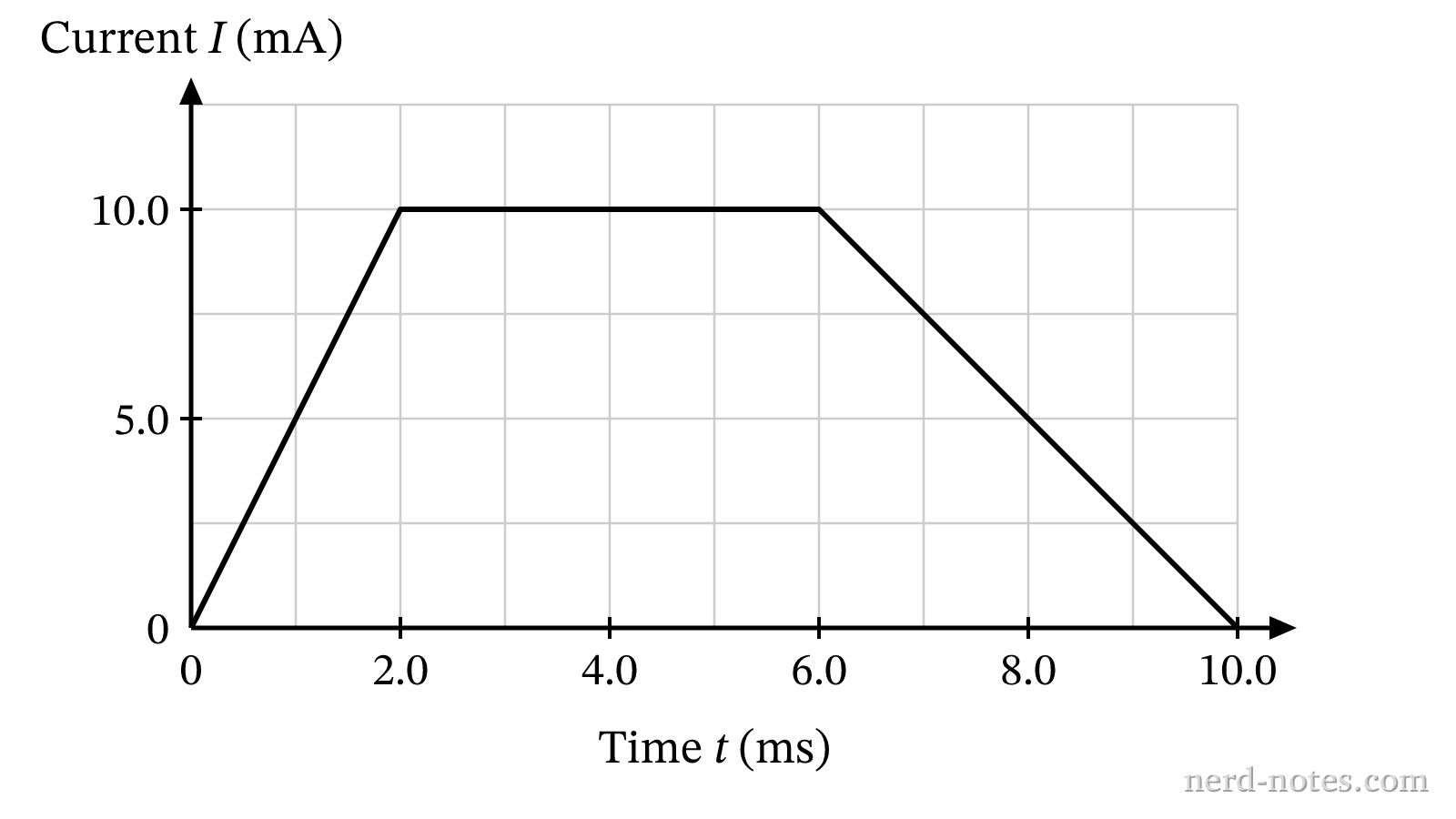

Current versus time for the series circuit.
A circuit consists of a variable potential source, a \(200\text{ }\Omega\) resistor, and an initially uncharged \(5.0\text{ }\mu\text{F}\) capacitor connected in series. The variable source is adjusted so that the current \(I\) through the circuit varies with time \(t\) as shown in the graph. What is the potential difference across the variable potential source at time \(t = 6.0\text{ ms}\)?
