12.1 Magnetic Fields
BeginnerMCQDrawing RepresentationsConceptual13.2k

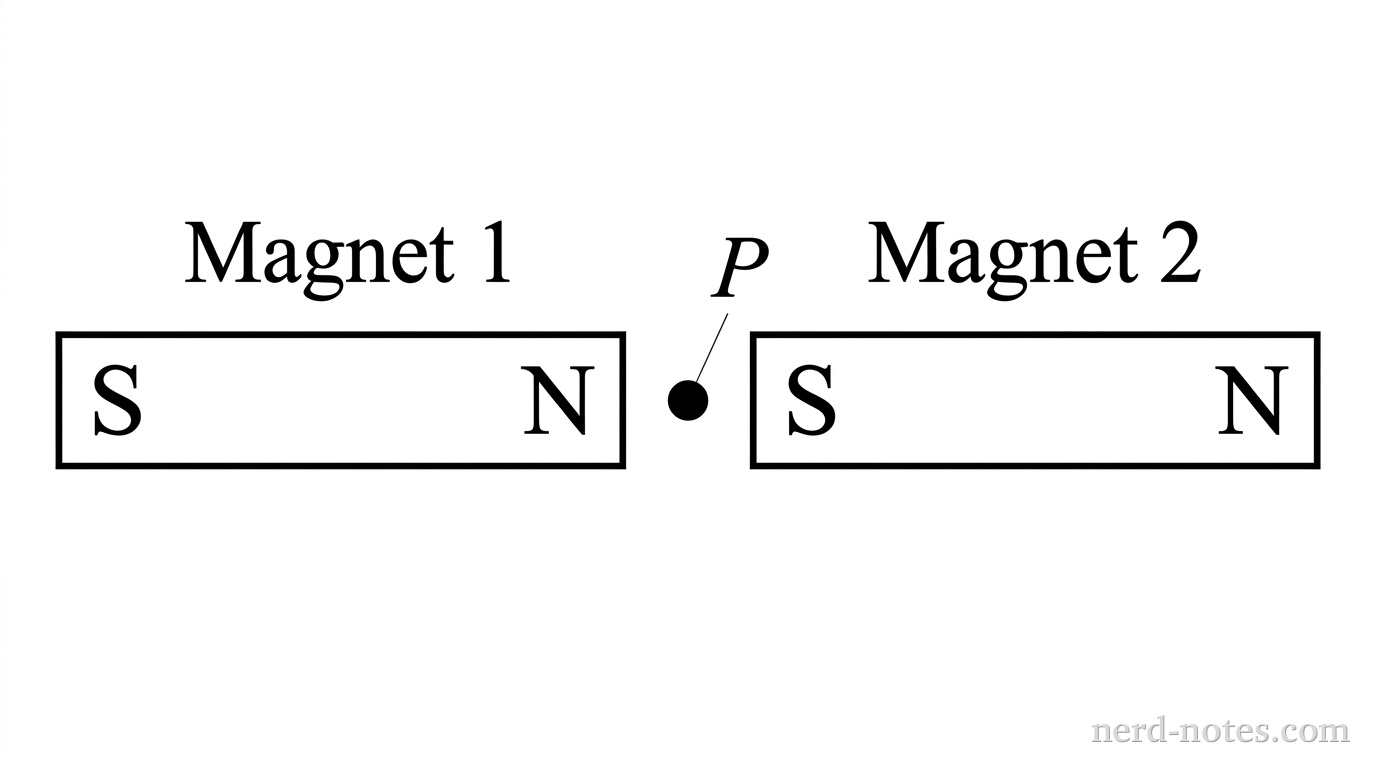

A horizontal arrangement showing two rectangular bar magnets separated by a small air gap along a single horizontal axis. The magnet on the left is labeled Magnet 1, with its left end labeled S and its right end labeled N. The magnet on the right is labeled Magnet 2, with its left end labeled S and its right end labeled N. A solid dot labeled P is positioned on the horizontal centerline directly in the middle of the gap between the facing N pole of Magnet 1 and the S pole of Magnet 2. No field lines or vector arrows are drawn.
Two bar magnets placed near each other along a horizontal axis.
Two bar magnets are fixed along a horizontal line with opposite poles facing each other, as shown. Magnet 1 has its North pole facing right, and Magnet 2 has its South pole facing left. Point \(P\) lies on the horizontal central axis midway between the two facing poles.

Which of the following correctly describes the pattern of the magnetic field lines in the region between the poles and the direction of the magnetic field vector \(\vec{B}\) at point \(P\)?
