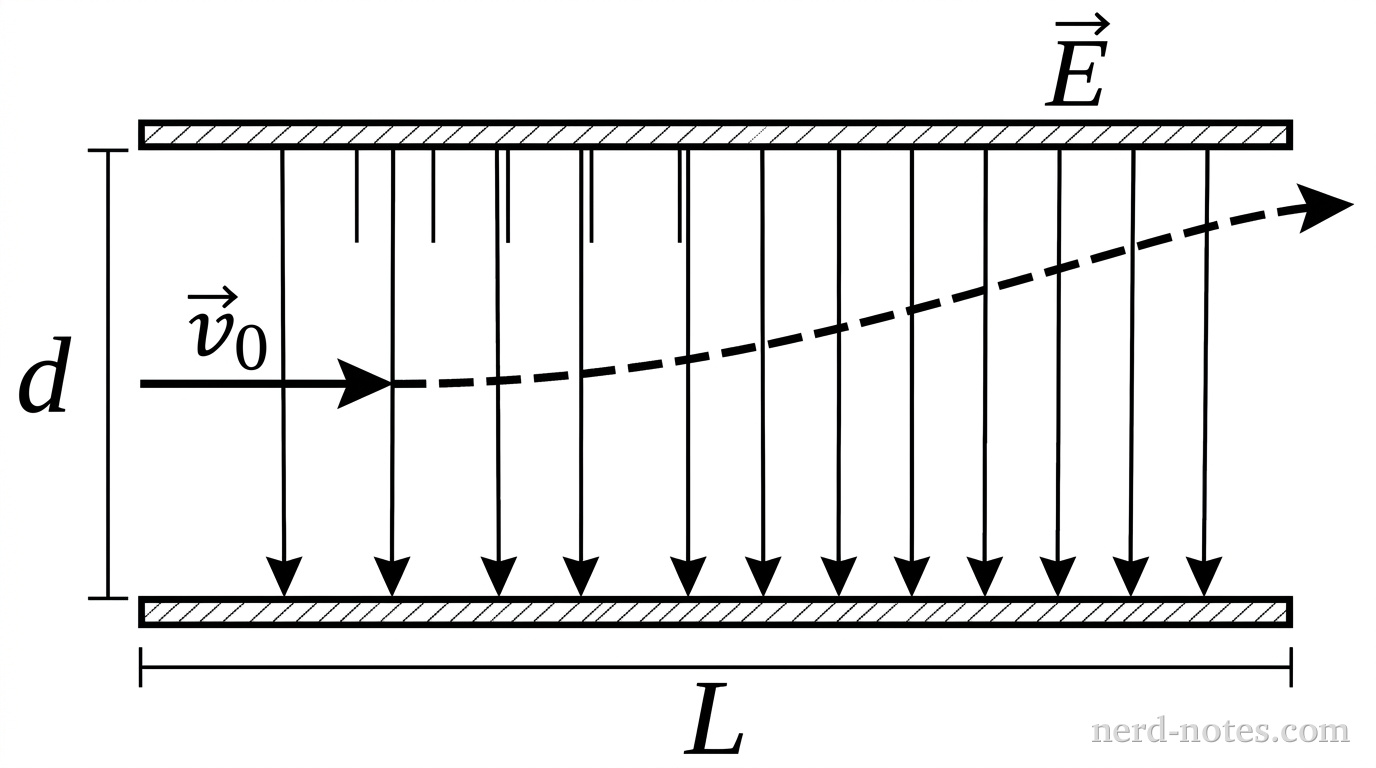

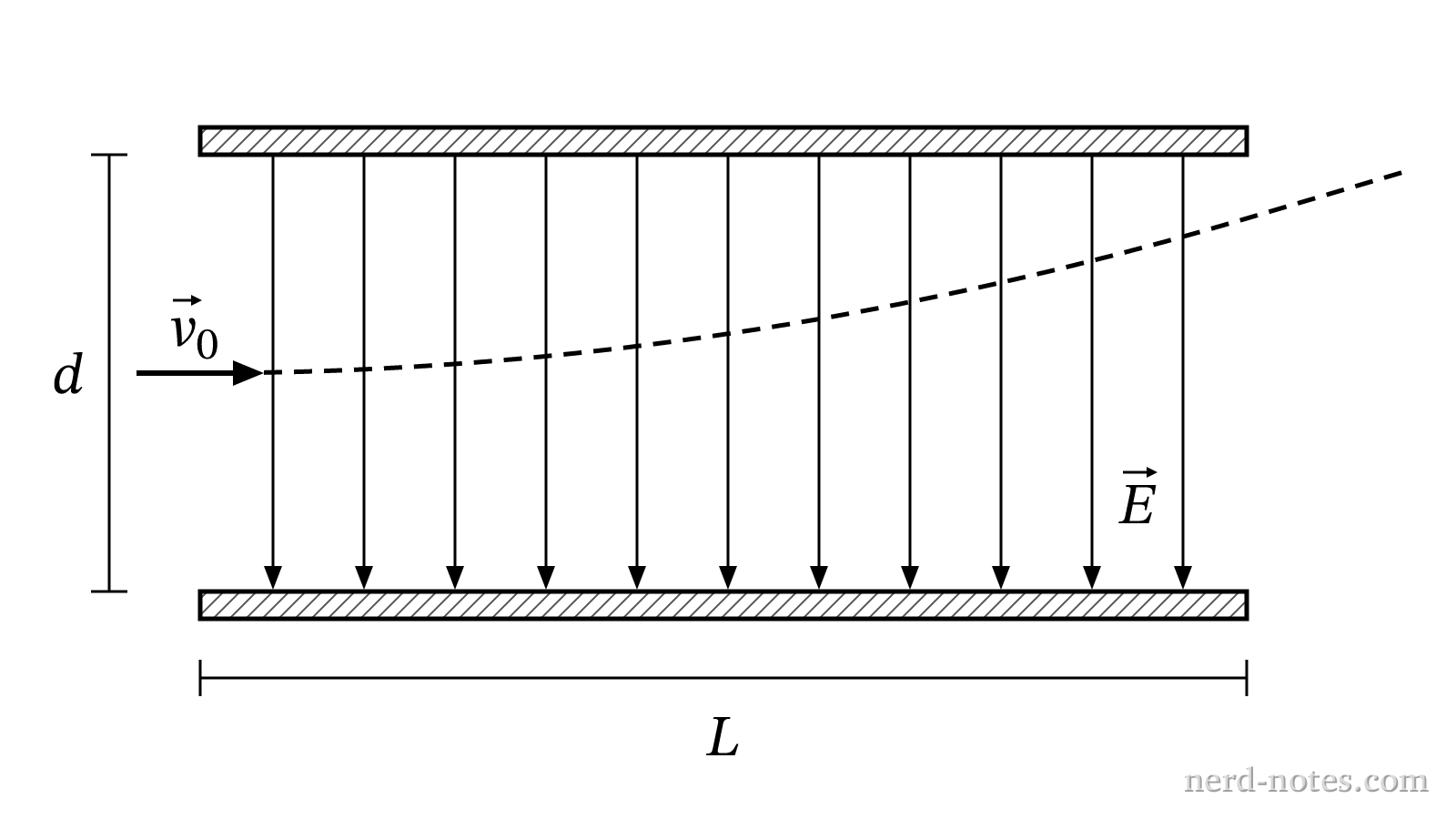

An electron and a proton are individually launched horizontally with the same initial speed $v_0$ into a uniform electric field $\vec{E}$ between two horizontal parallel plates of length $L$ and separation $d$, as shown. Neither particle strikes either plate while traveling between the plates. How does the kinetic energy gained by the electron, $\Delta K_e$, compare to the kinetic energy gained by the proton, $\Delta K_p$, upon exiting the region between the plates, and why?(a) $\Delta K_e = \Delta K_p$, because both particles carry a charge of magnitude $e$ and traverse a region with the same potential difference $\Delta V$. , (b) $\Delta K_e = \Delta K_p$, because the electron’s smaller mass produces a larger vertical acceleration that exactly cancels the mass dependence in the kinetic energy formula. , (c) $\Delta K_e \Delta K_p$, because both particles experience the same magnitude of electric force for the same time interval, causing the electron to undergo a larger vertical displacement in the direction of the force. :

An electron and a proton are individually launched horizontally with the same initial speed $v_0$ into a uniform electric field $\vec{E}$ between two horizontal parallel plates of length $L$ and separation $d$, as shown. Neither particle strikes either plate while traveling between the plates. How does the kinetic energy gained by the electron, $\Delta K_e$, compare to the kinetic energy gained by the proton, $\Delta K_p$, upon exiting the region between the plates, and why? • Nerd Notes

AP Physics

Unit 1 - Vectors and Kinematics

MCQ

Mathematical

Advanced

Step	Reasoning
Relate the kinetic energy gained by each particle to the work done by the electric field. \[ \Delta K = W = F_E \Delta y \]	The question asks for a comparison of kinetic energy gained ($\Delta K_e$ vs. $\Delta K_p$), which equals the work done by the electrostatic force according to the work-energy theorem.
Determine the time $t$ spent by each particle inside the field region. \[ t = \dfrac{L}{v_0} \]	Since there is no horizontal electric force, the horizontal component of velocity remains constant at $v_0$. The time spent between plates depends only on the plate length $L$ and initial horizontal speed $v_0$.
Calculate the electric force magnitude $F_E$ and vertical acceleration $a$ for a particle of charge magnitude $e$ and mass $m$. \[ F_E = eE \implies a = \dfrac{eE}{m} \]	Both particles carry charge magnitude $e$, so they experience the same force magnitude, but their accelerations differ due to mass.
Calculate the vertical displacement $\Delta y$ and total work done $W$ during time $t$. \[ \Delta y = \dfrac{1}{2} a t^2 = \dfrac{1}{2} \left(\dfrac{eE}{m}\right) \left(\dfrac{L}{v_0}\right)^2 = \dfrac{e E L^2}{2 m v_0^2} \]	Substituting the acceleration and time into kinematic displacement gives the vertical distance shifted, which determines the work done.
Combine work done and electric force to find $\Delta K$ as a function of mass $m$. \[ \Delta K = (eE) \left(\dfrac{e E L^2}{2 m v_0^2}\right) = \dfrac{e^2 E^2 L^2}{2 m v_0^2} \implies \Delta K \propto \dfrac{1}{m} \]	Evaluating $W = F_E \Delta y$ yields the functional dependence of kinetic energy gain on mass.

Why each choice is correct or incorrect:

(A) Incorrect. The particles exit the sides of the plates and do not travel across the full potential difference $\Delta V$ between the plates; their actual potential change depends on their vertical displacement, which is larger for the electron.

(B) Incorrect. While vertical velocity is $v_y = a t \propto 1/m$, kinetic energy depends on $v_y^2 \propto 1/m^2$, so $\Delta K = \frac{1}{2} m v_y^2 \propto m (1/m^2) = 1/m$. Mass does not cancel out.

(C) Incorrect. The electric force depends on charge and field strength ($F_E = eE$), not mass. Both particles experience the exact same electric force magnitude.

(D) This is the correct answer. Both particles spend the same time $t = L/v_0$ in the field and experience the same electric force $F_E = eE$. The smaller mass of the electron leads to a greater vertical acceleration, resulting in a larger vertical displacement $\Delta y$ and therefore more work done by the field ($W = F_E \Delta y$).
