| Step | Reasoning |
|---|---|
| Identify the relationship for the horizontal linear impulse exerted by the pivot. \[ J_{\text{pivot}} = P_f – P_i \] |
The impulse on the system equals its total change in linear momentum according to the impulse-momentum theorem. |

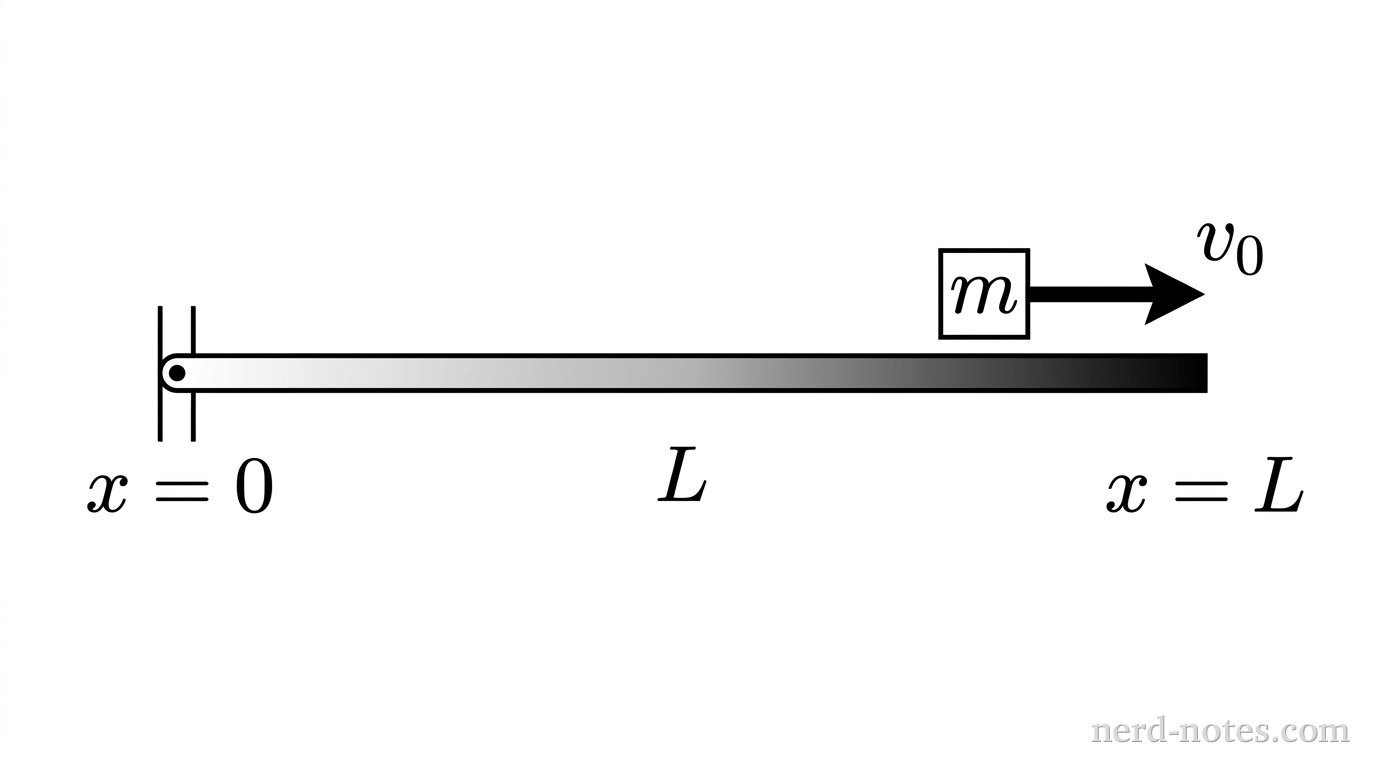

| Express the initial linear momentum \(P_i\) and formulate the final linear momentum \(P_f\) in terms of the post-collision angular speed \(\omega_f\). \[ P_i = m v_0 \] \[ P_f = M v_{\text{cm}} + m v_{\text{block}} = M (x_{\text{cm}} \omega_f) + m (L \omega_f) = (M x_{\text{cm}} + m L) \omega_f \] |
Before the collision, only mass \(m\) is moving; after the collision, both the rod’s center of mass and mass \(m\) rotate with angular speed \(\omega_f\). |
| Use calculus to calculate the density constant \(C\), the rod’s rotational inertia \(I_{\text{rod}}\), and its center of mass position \(x_{\text{cm}}\). \[ M = \int_0^L C x \, dx = \frac{1}{2} C L^2 \implies C = \frac{2M}{L^2} \] \[ I_{\text{rod}} = \int_0^L x^2 \lambda(x) \, dx = \int_0^L x^2 \left(\frac{2M x}{L^2}\right) dx = \frac{2M}{L^2} \left[\frac{x^4}{4}\right]_0^L = \frac{1}{2} M L^2 \] \[ x_{\text{cm}} = \frac{1}{M} \int_0^L x \lambda(x) \, dx = \frac{1}{M} \int_0^L x \left(\frac{2M x}{L^2}\right) dx = \frac{2}{L^2} \left[\frac{x^3}{3}\right]_0^L = \frac{2}{3} L \] |
Because the density \(\lambda(x) = C x\) is non-uniform, \(I_{\text{rod}}\) and \(x_{\text{cm}}\) must be determined by integration. |
| Apply conservation of angular momentum about the pivot to solve for \(\omega_f\). \[ L_i = L_f \] \[ m v_0 L = (I_{\text{rod}} + m L^2) \omega_f = \left(\frac{1}{2} M L^2 + m L^2\right) \omega_f \] \[ \omega_f = \frac{m v_0 L}{\left(\frac{1}{2} M + m\right) L^2} = \frac{2 m v_0}{(M + 2m) L} \] |
The pivot exerts no torque about itself, so total angular momentum about the pivot is conserved during the collision. |
| Substitute \(x_{\text{cm}}\) and \(\omega_f\) into the expressions for \(P_f\) and \(J_{\text{pivot}}\). \[ P_f = \left[ M \left(\frac{2}{3} L\right) + m L \right] \left[ \frac{2 m v_0}{(M + 2m) L} \right] = \left( \frac{2}{3} M + m \right) \frac{2 m v_0}{M + 2m} = \frac{\left(\frac{4}{3} M + 2m\right) m v_0}{M + 2m} \] \[ J_{\text{pivot}} = P_f – P_i = \frac{\left(\frac{4}{3} M + 2m\right) m v_0}{M + 2m} – m v_0 = m v_0 \left( \frac{\frac{4}{3} M + 2m – (M + 2m)}{M + 2m} \right) = \frac{M m v_0}{3(M + 2m)} \] |
This evaluates the final net momentum and yields the magnitude of the impulse exerted by the pivot. |
Why each choice is correct or incorrect:
(A) This is the correct answer.
(B) This value results from assuming the rod has uniform mass density with \(I_{\text{rod}} = \frac{1}{3} M L^2\) and \(x_{\text{cm}} = \frac{1}{2} L\).
(C) This value results from accounting only for the rod’s linear momentum \(P_{\text{rod}} = M x_{\text{cm}} \omega_f\) and neglecting the block’s momentum \(m L \omega_f\) after collision.
(D) This value results from incorrectly combining the algebraic terms in \(P_f – P_i\), dropping a factor of 2 in the numerator difference.
