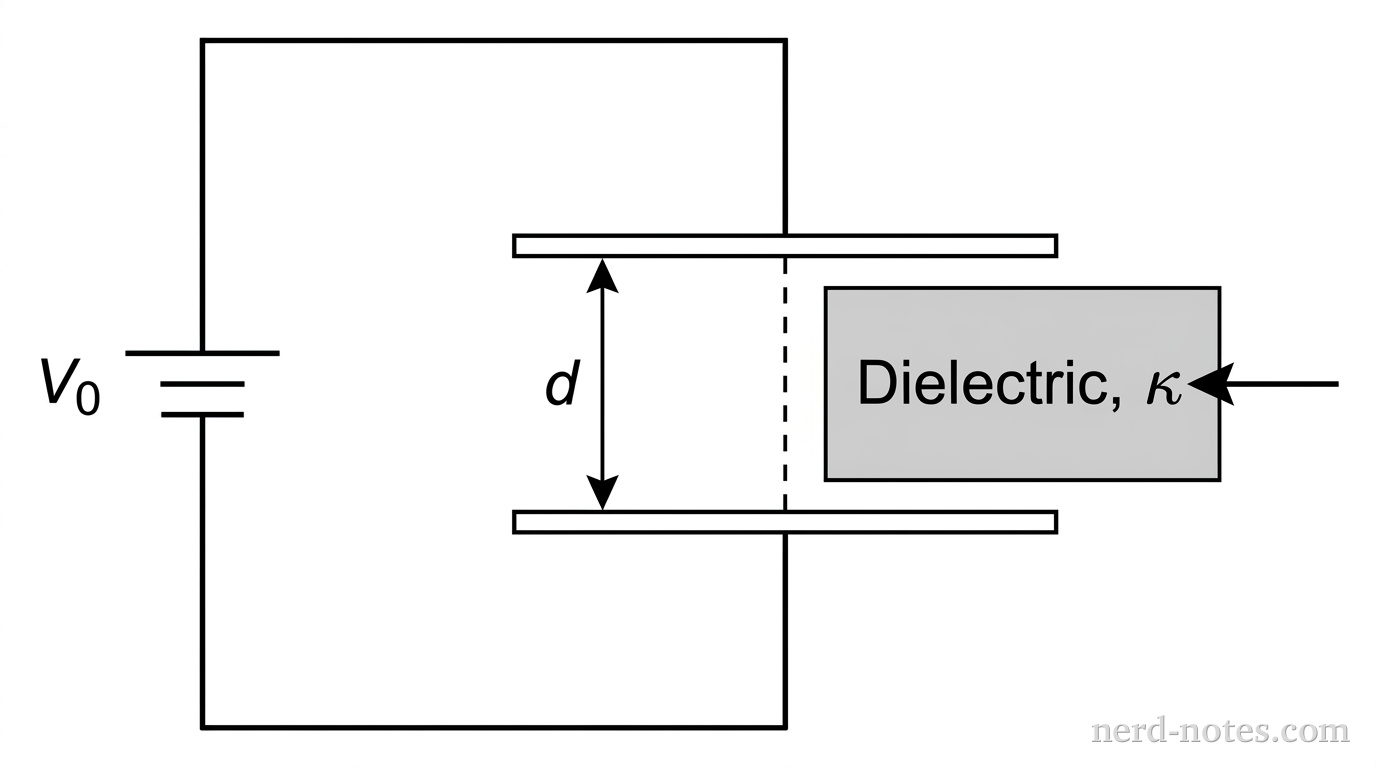

A schematic showing a DC battery with a voltage label \( V_0 \) connected by wires to a parallel-plate capacitor. The capacitor consists of two horizontal, parallel plates. To the right of the plates, a rectangular shaded block labeled 'Dielectric, \( \kappa \)' is shown partially inserted between the plates. A horizontal arrow points to the left from the right edge of the dielectric, indicating its direction of movement into the capacitor gap. Vertical dashed lines with a double-headed arrow indicate the plate separation distance \( d \). No other labels, lines, text, or axes appear.
Figure 1. A dielectric being inserted into a connected capacitor.
A parallel-plate capacitor with plate area \( A \) and separation distance \( d \) is connected in a circuit to a battery that maintains a constant potential difference \( V_0 \). Initially, there is a vacuum between the plates, and the capacitor is fully charged. A solid dielectric slab with dielectric constant \( \kappa \) (where \( \kappa > 1 \)) is placed just outside the plates. An external agent slowly pushes the slab into the capacitor until it completely fills the space between the plates. The capacitor remains connected to the battery during this entire process.
