13.4 Images Formed by Lenses
AdvancedFRQGraphicalMathematicalConceptualExperimental22.3k

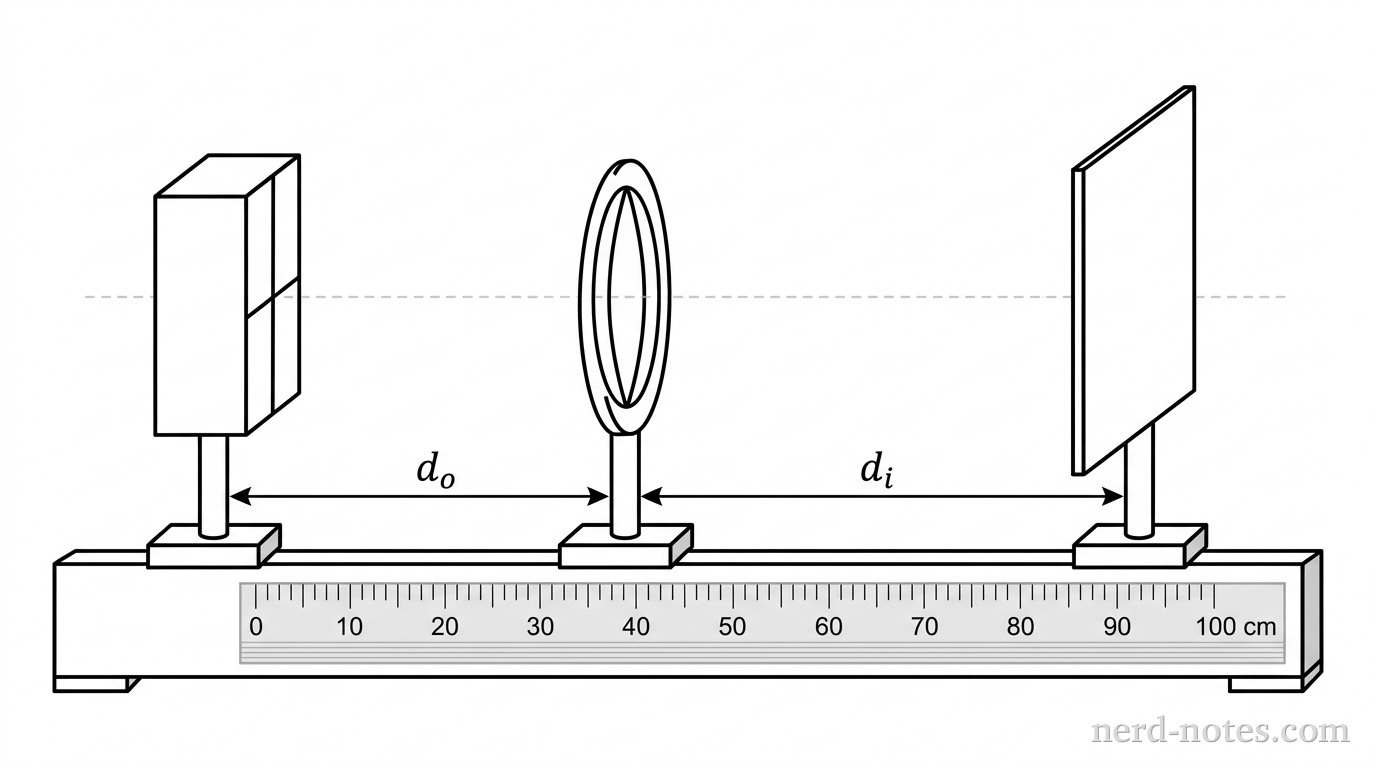

An optics bench extending horizontally. From left to right on the bench are three components: an illuminated object (a box with a crosshair pattern on its right face), a converging lens mounted vertically in a circular holder, and a flat vertical viewing screen. A meterstick runs along the bottom of the bench. The objects are aligned along the same central horizontal optical axis.
Figure 1. Experimental setup on the optics bench.
A group of students is tasked with experimentally determining the focal length \( f \) of a converging lens. They are provided with an optics bench (a long track with a meterstick attached), the converging lens mounted on a holder, an illuminated object (a light source with a distinct geometric pattern), and a white viewing screen. All components can slide along the track and their positions can be read from the attached meterstick.
