Figure 1. The RC circuit.
Figure 1. The RC circuit.

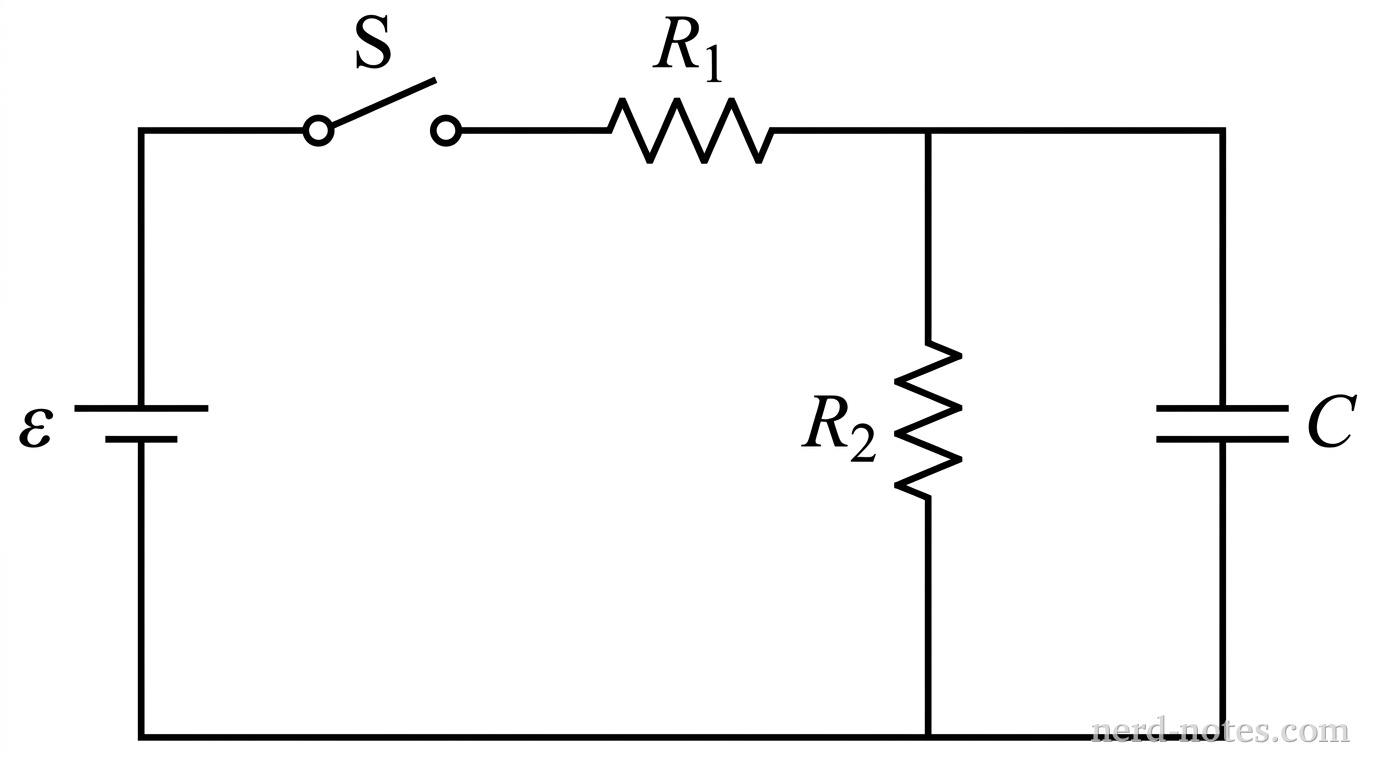

A circuit is constructed with an ideal battery of emf \( \varepsilon \), a switch S, two resistors of resistances \( R_1 \) and \( R_2 \), and an initially uncharged capacitor of capacitance \( C \), as shown in Figure 1. At time \( t = 0 \), the switch S is closed.
