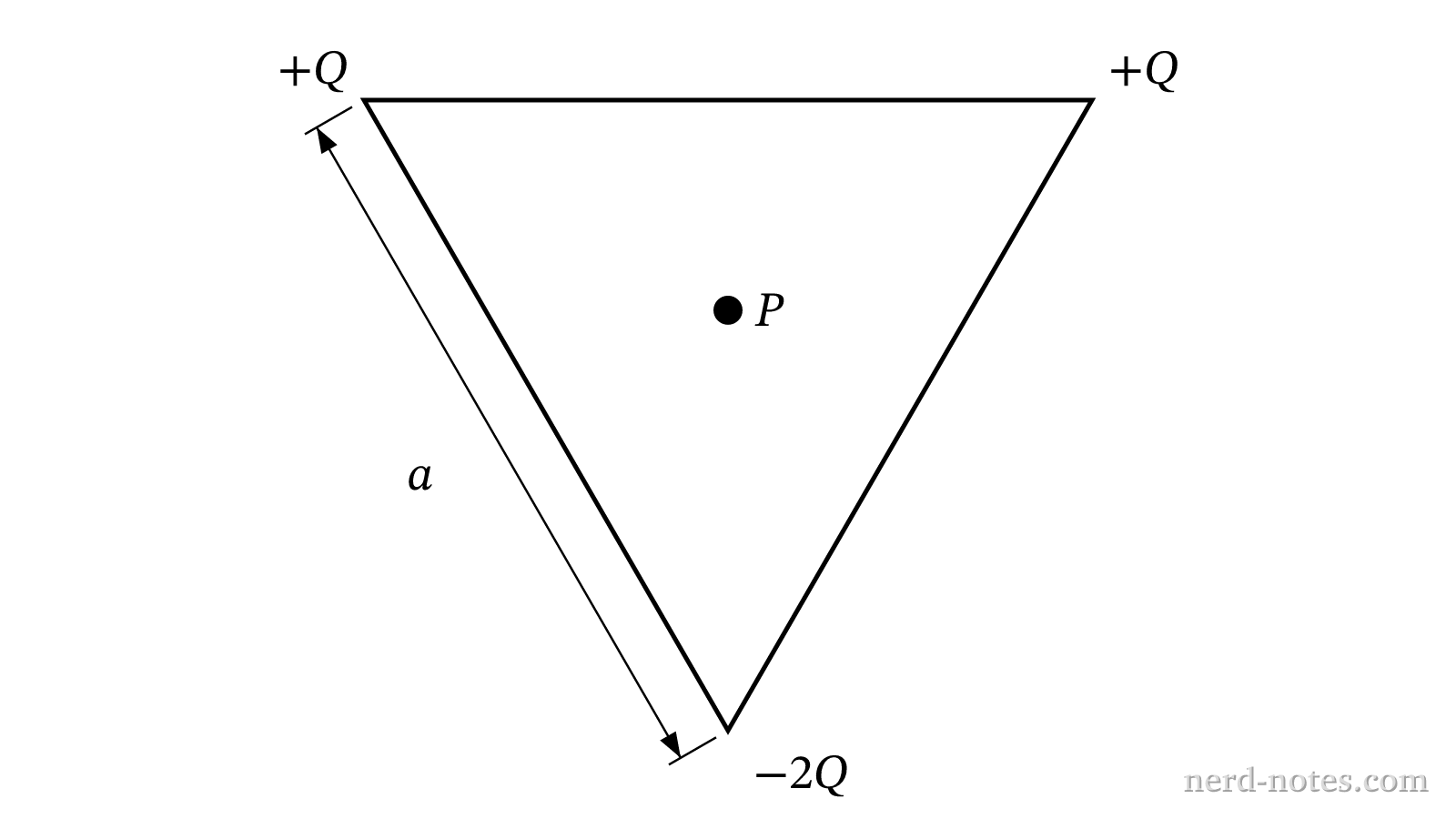

Three point charges are fixed at the vertices of an equilateral triangle with side length $a$, as shown in the figure. Two vertices each hold a charge of $+Q$, while the third vertex holds a charge of $-2Q$. What is the magnitude of the net electric field at the center of the triangle, in terms of $Q$, $a$, and Coulomb's constant $k$? • Nerd Notes

AP Physics

Unit 1 - Vectors and Kinematics

MCQ

Mathematical

Intermediate

Step	Reasoning
Identify the target quantity and express the superposition principle for the net electric field. \[\vec{E}_{net} = \vec{E}_{+Q,1} + \vec{E}_{+Q,2} + \vec{E}_{-2Q}\]	The net electric field at the center is the vector sum of the electric fields produced by each of the three point charges.
Determine the distance $r$ from any vertex of an equilateral triangle of side length $a$ to its center. \[r = \dfrac{a}{\sqrt{3}} \implies r^2 = \dfrac{a^2}{3}\]	The magnitude of each field contribution depends on the distance $r$ between the charge and point $P$.
Calculate the vector sum of the electric fields due to the two $+Q$ charges. \[E_{+Q,\text{comb}} = 2 E_Q \cos(60^\circ) = 2 \left(\dfrac{3 k Q}{a^2}\right) \left(\dfrac{1}{2}\right) = \dfrac{3 k Q}{a^2}\]	Both $+Q$ charges produce fields of equal magnitude $E_Q = \dfrac{k Q}{r^2} = \dfrac{3 k Q}{a^2}$ pointing away from their respective vertices. By symmetry, their horizontal components cancel, while their vertical components pointing toward the $-2Q$ vertex add together.
Combine the net field of the two $+Q$ charges with the field from the $-2Q$ charge. \[E_{-2Q} = \dfrac{k \|-2Q\|}{r^2} = \dfrac{2 k Q}{\frac{a^2}{3}} = \dfrac{6 k Q}{a^2}\] \[E_{net} = E_{+Q,\text{comb}} + E_{-2Q} = \dfrac{3 k Q}{a^2} + \dfrac{6 k Q}{a^2} = \dfrac{9 k Q}{a^2}\]	The $-2Q$ charge produces a field pointing directly toward itself (in the exact same direction as $E_{+Q,\text{comb}}$). Thus, their magnitudes add directly.

Why each choice is correct or incorrect:

(A) Uses the side length $a$ as the distance to the center, leading to $E_{net} = \dfrac{3 k Q}{a^2}$.

(B) This is the correct answer.

(C) Adds field magnitudes as scalars ($E_A + E_B + E_C = \dfrac{3kQ}{a^2} + \dfrac{3kQ}{a^2} + \dfrac{6kQ}{a^2} = \dfrac{12kQ}{a^2}$) without accounting for vector component cancellation.

(D) Assumes the center distance is $r = \dfrac{a}{3}$, giving $r^2 = \dfrac{a^2}{9}$ and overestimating the field magnitude.
