A solid insulating sphere of radius $R$ contains a total net charge $Q$. The volume charge density $\rho$ inside the sphere varies directly with radial distance $r$ from the center, such that $\rho(r) = C r$ for $r \le R$, where $C$ is a constant. In terms of $Q$, $R$, $r$, and fundamental constants, which of the following expressions represents the magnitude of the electric field at a distance $r < R$ from the center of the sphere? • Nerd Notes

AP Physics

Unit 1 - Vectors and Kinematics

MCQ

Mathematical

Intermediate

Step	Reasoning

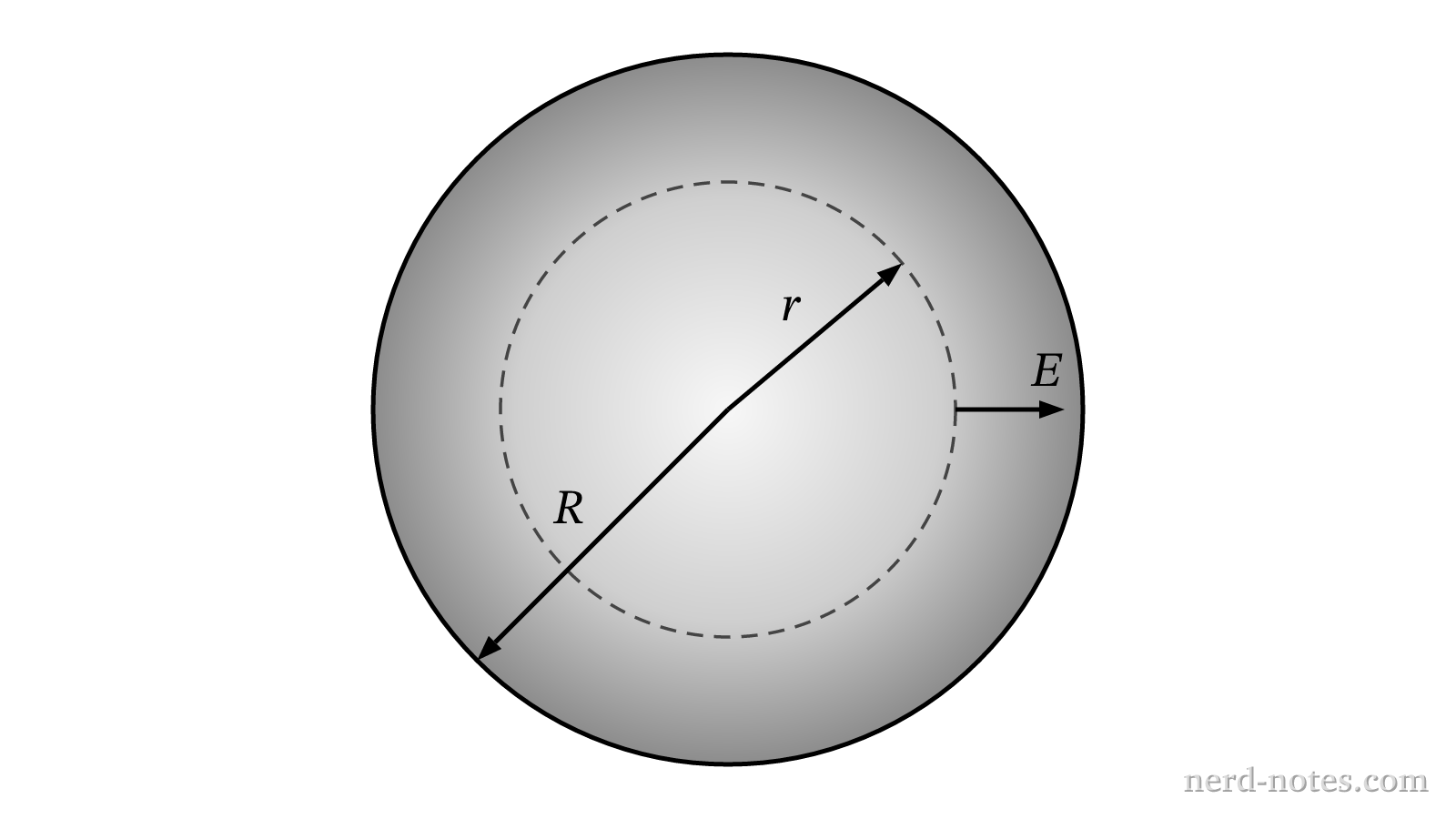

Apply Gauss’s law to a concentric spherical Gaussian surface of radius $r < R$. \[ \oint \vec{E} \cdot d\vec{A} = E(r)(4\pi r^2) = \dfrac{q_{\text{enc}}(r)}{\varepsilon_0} \]	The question asks for the electric field inside a spherically symmetric charge distribution.
Calculate the enclosed charge $q_{\text{enc}}(r)$ by integrating the non-uniform volume charge density. \[ q_{\text{enc}}(r) = \int_0^r \rho(r’) \, dV = \int_0^r (C r’)(4\pi r’^2 \, dr’) = 4\pi C \int_0^r r’^3 \, dr’ = \pi C r^4 \]	To evaluate Gauss’s law, we need the enclosed charge inside radius $r$.
Relate the constant $C$ to the total charge $Q$ of the sphere. \[ Q = q_{\text{enc}}(R) = \pi C R^4 \implies C = \dfrac{Q}{\pi R^4} \]	The final expression must be in terms of given variables $Q$ and $R$ rather than the constant $C$.
Substitute $C$ back into the enclosed charge expression and solve for $E(r)$. \[ q_{\text{enc}}(r) = \left(\dfrac{Q}{\pi R^4}\right) \pi r^4 = Q \dfrac{r^4}{R^4} \]	Combining the enclosed charge with Gauss’s law isolates the electric field magnitude $E(r)$.
Solve Gauss’s law for $E(r)$. \[ E(r) \cdot 4\pi r^2 = \dfrac{1}{\varepsilon_0} \left( Q \dfrac{r^4}{R^4} \right) \implies E(r) = \dfrac{Q r^2}{4\pi \varepsilon_0 R^4} \]	Dividing enclosed charge by $4\pi \varepsilon_0 r^2$ yields the final expression.

Why each choice is correct or incorrect:

(A) This is the correct answer, derived by integrating $\rho(r) = Cr$ over a spherical volume element to determine enclosed charge as a function of total charge $Q$.

(B) Incorrectly assumes electric field is proportional to $r$, which holds for uniform charge density but fails for a non-uniform distribution.

(C) Incorrectly determines $C$ by setting $C R = Q / (\frac{4}{3}\pi R^3)$ using average density rather than evaluating $Q = \int \rho \, dV$.

(D) Results from an integration error in powers of $r$ when calculating total charge versus enclosed charge.
