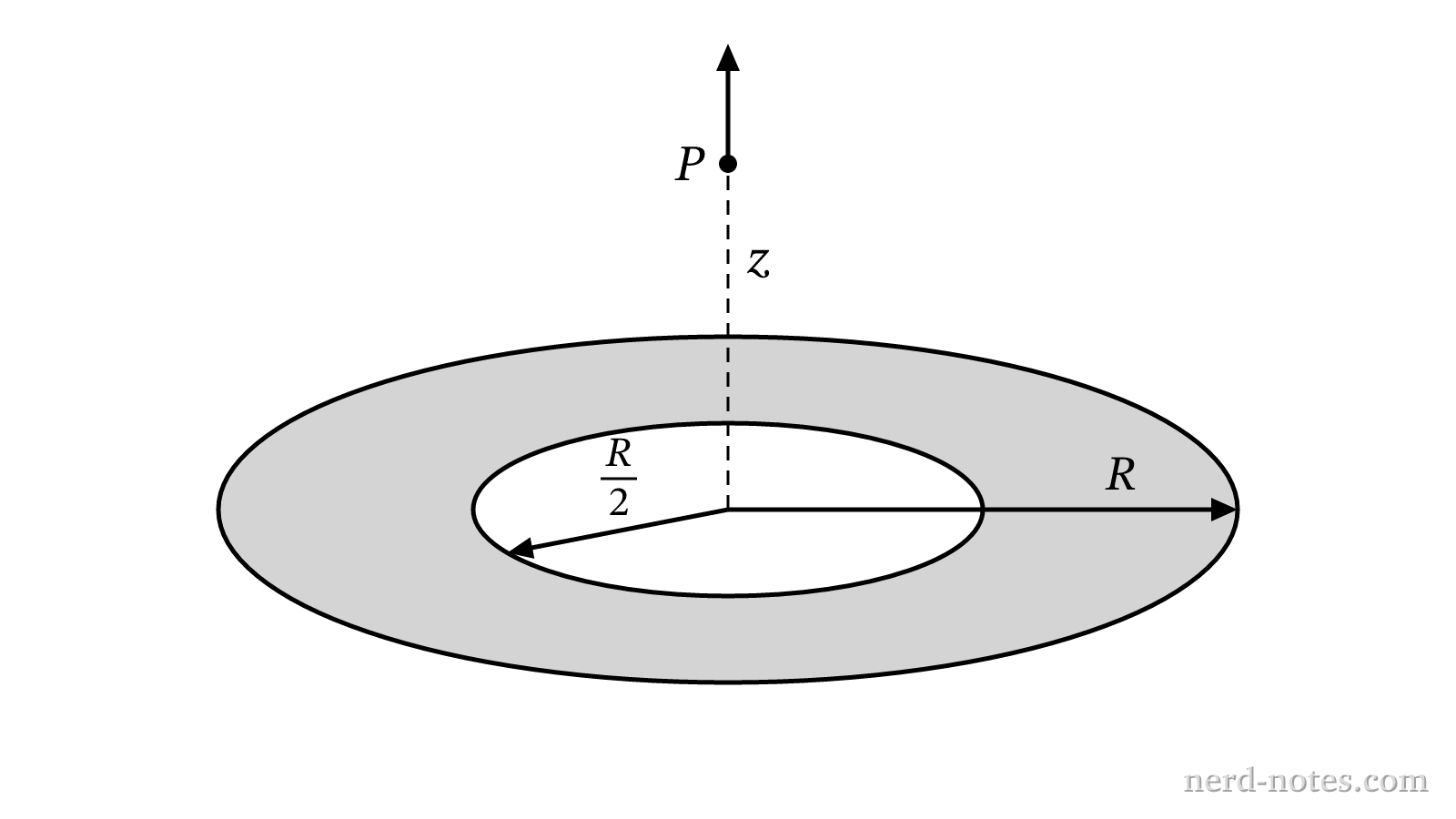

A thin, flat, nonconducting annular disk lies in the $xy$-plane centered at the origin. The disk has an outer radius $R$, a central circular hole of radius $\dfrac{R}{2}$, and carries a uniform surface charge density $\sigma$. A point $P$ is located on the positive $z$-axis at a distance $z$ from the origin. Which of the following expressions gives the magnitude of the electric field at point $P$? • Nerd Notes

AP Physics

Unit 1 - Vectors and Kinematics

MCQ

Mathematical

Intermediate

Step	Reasoning
Identify the target quantity and divide the continuous charge distribution into element rings. \[ dE_z = \dfrac{1}{4\pi\varepsilon_0} \dfrac{dq \cdot z}{(r^2 + z^2)^{3/2}} \]	The question asks for the electric field along the axis of symmetry of a charged planar shape. A flat annulus can be decomposed into thin concentric rings of radius $r$ and width $dr$.
Express the differential charge element $dq$ in terms of surface charge density $\sigma$. \[ dq = \sigma \cdot dA = \sigma (2\pi r \, dr) \]	To integrate over the surface, $dq$ must be written in terms of the geometry of a ring element of radius $r$ and area $dA = 2\pi r \, dr$.
Substitute $dq$ into the electric field element equation and simplify. \[ dE_z = \dfrac{1}{4\pi\varepsilon_0} \dfrac{\sigma (2\pi r \, dr) z}{(r^2 + z^2)^{3/2}} = \dfrac{\sigma z}{2\varepsilon_0} \dfrac{r \, dr}{(r^2 + z^2)^{3/2}} \]	This provides the differential field contribution $dE_z$ from a single ring element as a function of $r$.
Integrate $dE_z$ over the inner and outer radius boundaries of the annular disk. \[ E_z = \dfrac{\sigma z}{2\varepsilon_0} \int_{R/2}^{R} \dfrac{r \, dr}{(r^2 + z^2)^{3/2}} = \dfrac{\sigma z}{2\varepsilon_0} \left[ -\dfrac{1}{\sqrt{r^2 + z^2}} \right]_{R/2}^{R} \]	The charge distribution extends from the inner hole at $r = \dfrac{R}{2}$ to the outer edge at $r = R$.
Evaluate the definite integral at the limits. \[ E_z = \dfrac{\sigma z}{2\varepsilon_0} \left( \dfrac{1}{\sqrt{\dfrac{1}{4}R^2 + z^2}} – \dfrac{1}{\sqrt{R^2 + z^2}} \right) \]	Evaluating at $r = R$ and $r = \dfrac{R}{2}$ yields the final net electric field expression.

Why each choice is correct or incorrect:

(A) Incorrect because it evaluates the integration limits as (upper limit) minus (lower limit) in reverse order, resulting in a negative magnitude.

(B) Incorrect because it integrates from $r = 0$ to $r = R$, which gives the field of a solid disk and neglects the central circular hole.

(C) Incorrect because it attempts to subtract the area of the hole inside the square root term $\sqrt{R^2 – (R/2)^2 + z^2}$ rather than integrating the ring contributions separately.

(D) This is the correct answer.
