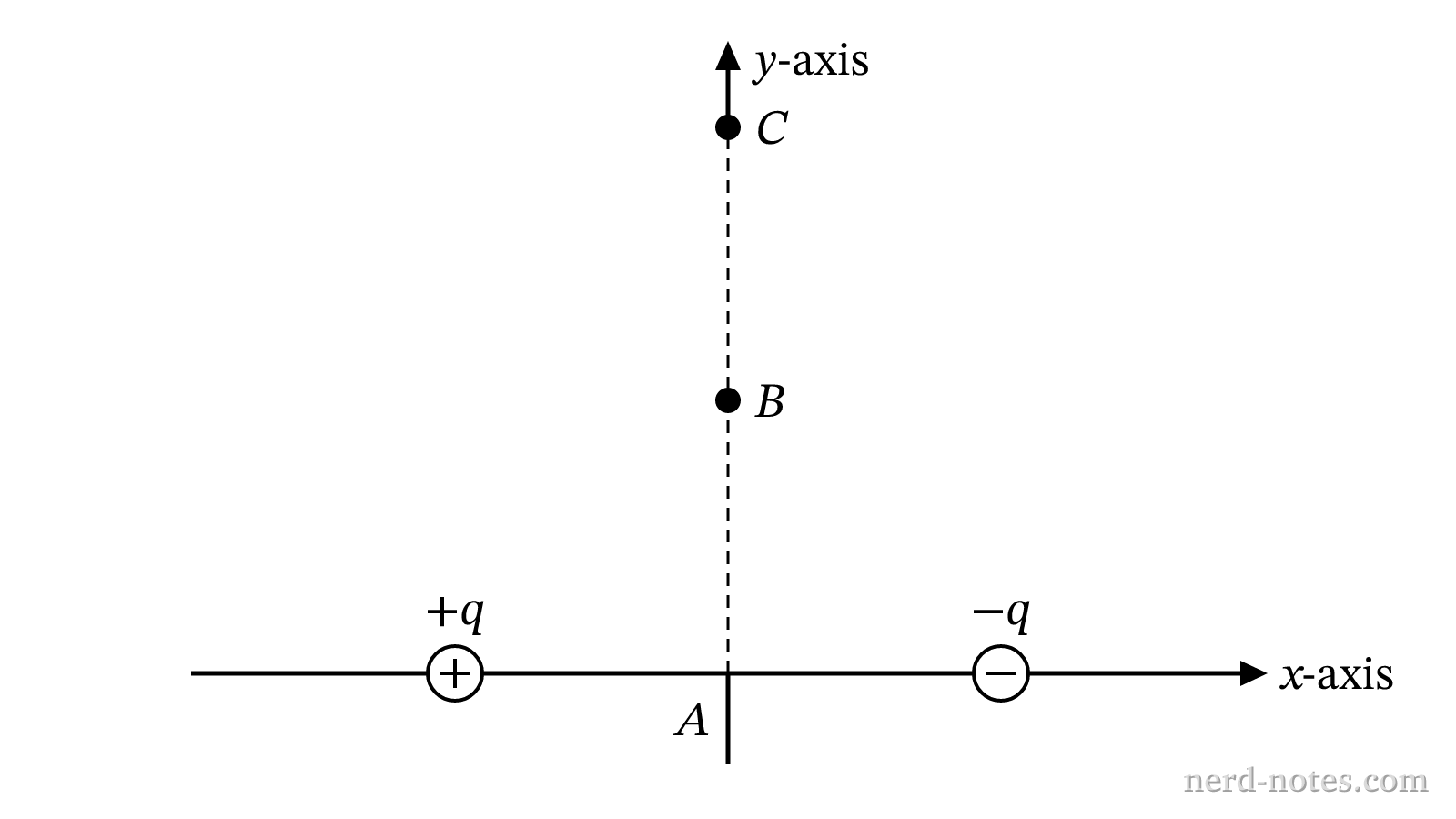

Two point charges of equal magnitude $q$ but opposite sign are fixed on the $x$-axis at $x = -d$ and $x = +d$. Points $A$, $B$, and $C$ lie on the positive $y$-axis at $y = 0$, $y = d$, and $y = 2d$, respectively. Which of the following correctly ranks the magnitude of the electric field $E$ at points $A$, $B$, and $C$? • Nerd Notes

AP Physics

Unit 1 - Vectors and Kinematics

MCQ

Mathematical

Beginner

Step	Reasoning
Identify the goal and principle needed to determine the electric field ranking.	The question asks for a ranking of electric field magnitudes at points along the perpendicular bisector of a dipole, which requires calculating or analyzing the net field vector via electric field superposition.
Evaluate the net electric field magnitude at point A (the origin, $y = 0$). \[ E_A = \dfrac{1}{4\pi\varepsilon_0}\dfrac{q}{d^2} + \dfrac{1}{4\pi\varepsilon_0}\dfrac{q}{d^2} = \dfrac{1}{4\pi\varepsilon_0}\dfrac{2q}{d^2} \]	Point A lies directly between the two charges. The positive charge at $x = -d$ creates a field to the right, and the negative charge at $x = +d$ also creates a field to the right, leading to maximum constructive addition.
Derive the general expression for the electric field magnitude at any point along the perpendicular bisector $(0, y)$. \[ E(y) = 2 E_{\text{single}} \cos\theta = 2 \left(\dfrac{1}{4\pi\varepsilon_0}\dfrac{q}{d^2 + y^2}\right) \left(\dfrac{d}{\sqrt{d^2 + y^2}}\right) = \dfrac{1}{4\pi\varepsilon_0}\dfrac{2qd}{(d^2 + y^2)^{3/2}} \]	To compare points B and C at non-zero y-coordinates, we must express $E(y)$ as a function of $y$.
Compare the resulting field magnitudes as $y$ increases from $y = 0$ to $y = d$ and $y = 2d$. \[ E_A = \dfrac{1}{4\pi\varepsilon_0}\dfrac{2q}{d^2}, \quad E_B = \dfrac{1}{4\pi\varepsilon_0}\dfrac{\sqrt{2}q}{2d^2}, \quad E_C = \dfrac{1}{4\pi\varepsilon_0}\dfrac{2q}{5\sqrt{5}d^2} \]	As $y$ increases, the denominator $(d^2 + y^2)^{3/2}$ increases monotonically, which means $E(y)$ strictly decreases as distance from the origin along the y-axis increases.

Why each choice is correct or incorrect:

(A) Incorrectly assumes electric field magnitude increases with distance from the dipole axis, reversing the inverse-distance dependence.

(B) Incorrectly assumes that the electric field along the perpendicular bisector is uniform regardless of distance.

(C) This is the correct answer. The net electric field magnitude is greatest at the midpoint between opposite charges and decreases monotonically with increasing distance along the perpendicular bisector.

(D) Confuses opposite charges with like charges, incorrectly assuming the fields cancel out at the midpoint to give a local minimum at point A.
