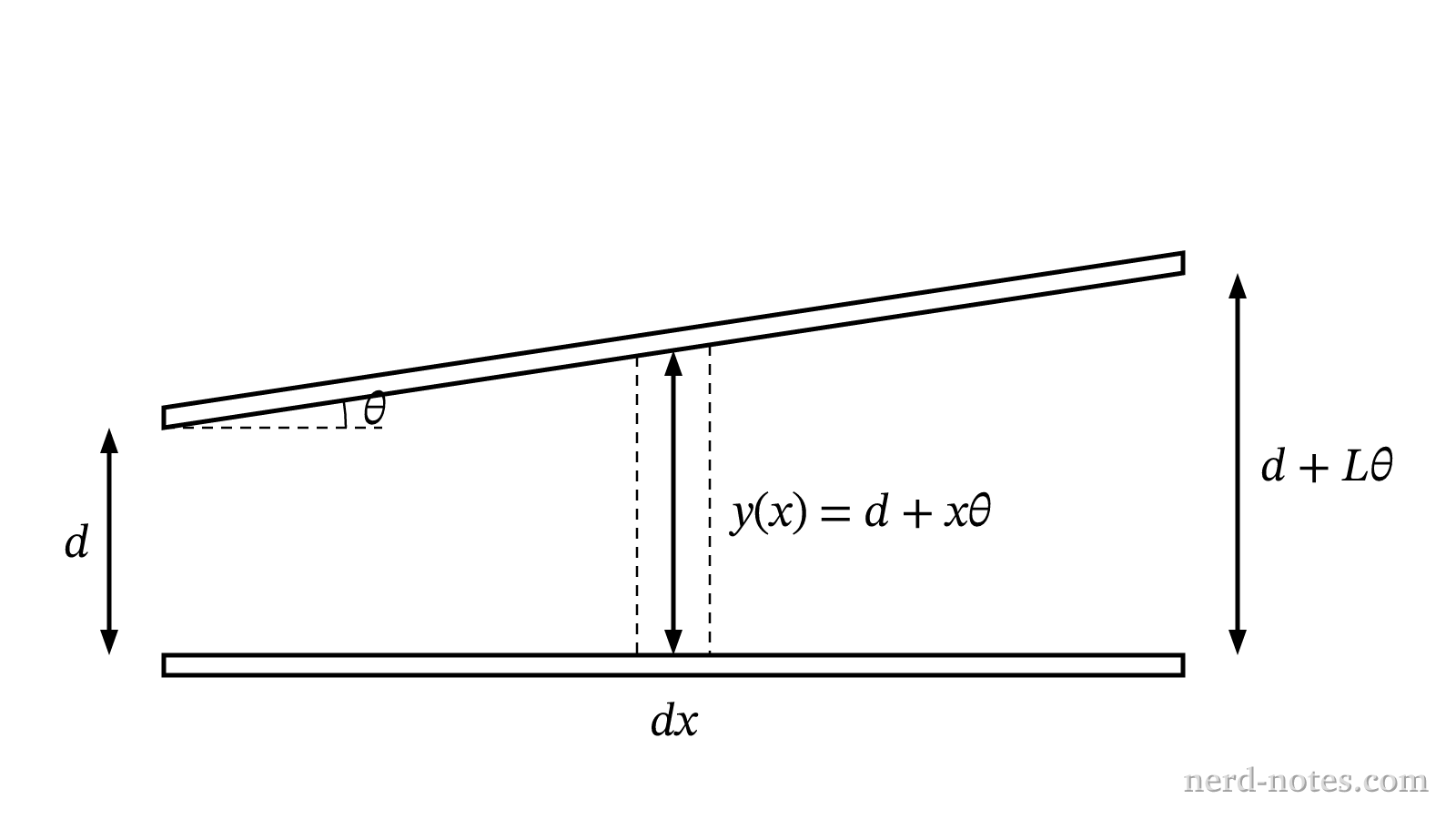

A capacitor consists of two rectangular conducting plates of length $L$ and width $W$ tilted at a small angle $\theta$ relative to one another, such that the plate separation increases linearly from $d$ at $x = 0$ to $d + L\theta$ at $x = L$, where $L\theta \ll d$. Let $C_0 = \dfrac{\varepsilon_0 W L}{d}$ be the capacitance of an ideal parallel-plate capacitor of identical dimensions with uniform separation $d$. Which of the following expressions represents the best approximation for the total capacitance $C$ of the tilted-plate capacitor? • Nerd Notes

AP Physics

Unit 1 - Vectors and Kinematics

MCQ

Mathematical

Advanced

Step	Reasoning
Identify the differential capacitance element $dC$ across the length of the plates. \[ dC = \dfrac{\varepsilon_0 W \, dx}{y(x)} \]	Because the plates are conductors, each infinitesimal cross-section at position $x$ is at a constant potential difference, meaning the infinitesimal strips act as parallel capacitors whose capacitances add directly.
Express the separation distance $y(x)$ as a function of position $x$ and set up the integral for total capacitance $C$. \[ C = \int_0^L \dfrac{\varepsilon_0 W \, dx}{d + x\theta} \]	The gap varies linearly along the length from $d$ at $x = 0$ to $d + L\theta$ at $x = L$ for small angles $\theta$.
Evaluate the integral. \[ C = \dfrac{\varepsilon_0 W}{\theta} \left[ \ln(d + x\theta) \right]_0^L = \dfrac{\varepsilon_0 W}{\theta} \ln\left(\dfrac{d + L\theta}{d}\right) = \dfrac{\varepsilon_0 W}{\theta} \ln\left(1 + \dfrac{L\theta}{d}\right) \]	Integrating $\dfrac{1}{d + x\theta}$ with respect to $x$ yields a logarithmic form.
Apply the Taylor series approximation $\ln(1 + u) \approx u – \dfrac{u^2}{2}$ for $u = \dfrac{L\theta}{d} \ll 1$. \[ C \approx \dfrac{\varepsilon_0 W}{\theta} \left( \dfrac{L\theta}{d} – \dfrac{L^2\theta^2}{2d^2} \right) = \dfrac{\varepsilon_0 W L}{d} \left(1 – \dfrac{L\theta}{2d}\right) = C_0 \left(1 – \dfrac{L\theta}{2d}\right) \]	Since $L\theta \ll d$, expanding to second order in $u$ reveals the leading correction to the standard parallel-plate formula $C_0 = \dfrac{\varepsilon_0 W L}{d}$.

Why each choice is correct or incorrect:

(A) This is the correct answer, obtained by integrating the parallel strip elements along the length and expanding $\ln(1 + u)$ to first order in $\theta$.

(B) Incorrectly predicts an increase in capacitance with tilt, violating the physical principle that increasing the average plate separation decreases capacitance.

(C) Incorrectly evaluates the second term of the Taylor expansion $\ln(1+u) \approx u – \dfrac{u^2}{2}$, omitting the factor of 1/2.

(D) Combines a sign error (predicting capacitance increases) with a missing factor of 1/2 in the series expansion.
