11.8 Resistor Capacitor (RC) Circuits
BeginnerMCQGraphicalMathematicalConceptual25.6k

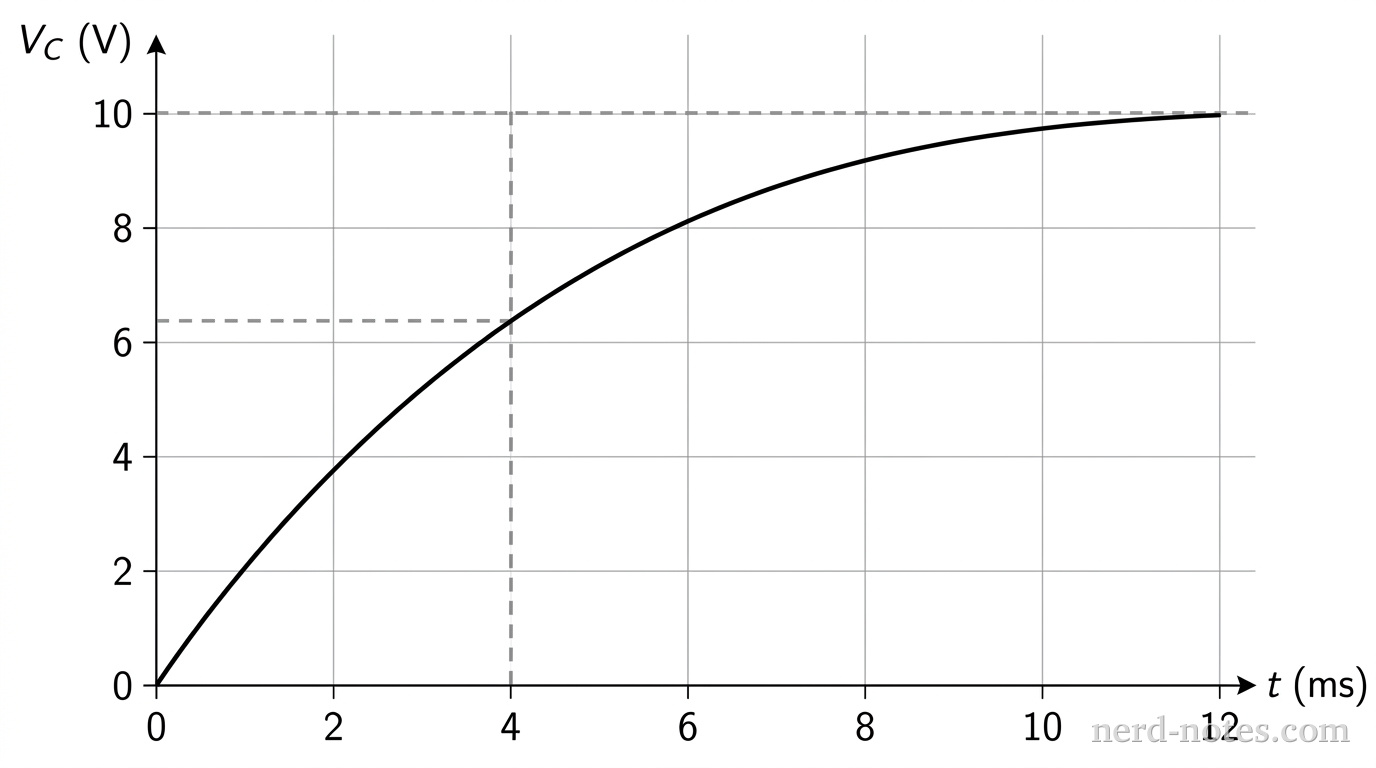

A quantitative line graph showing capacitor potential difference V_C in volts on the vertical axis versus time t in milliseconds on the horizontal axis. The vertical axis ranges from 0 to 10 V with grid lines and tick marks labeled 0, 2, 4, 6, 8, 10. The horizontal axis ranges from 0 to 12 ms with grid lines and tick marks labeled 0, 2, 4, 6, 8, 10, 12. A horizontal dashed line is drawn at V_C = 10 V. A smooth continuous solid curve starts at (0, 0), rises smoothly, passing through (2.8 ms, 5.0 V) and (4.0 ms, 6.3 V), and asymptotically approaches V_C = 10 V. Dashed vertical and horizontal guidelines connect t = 4.0 ms on the time axis to V_C = 6.3 V on the potential axis. No other labels, lines, text, or axes appear.

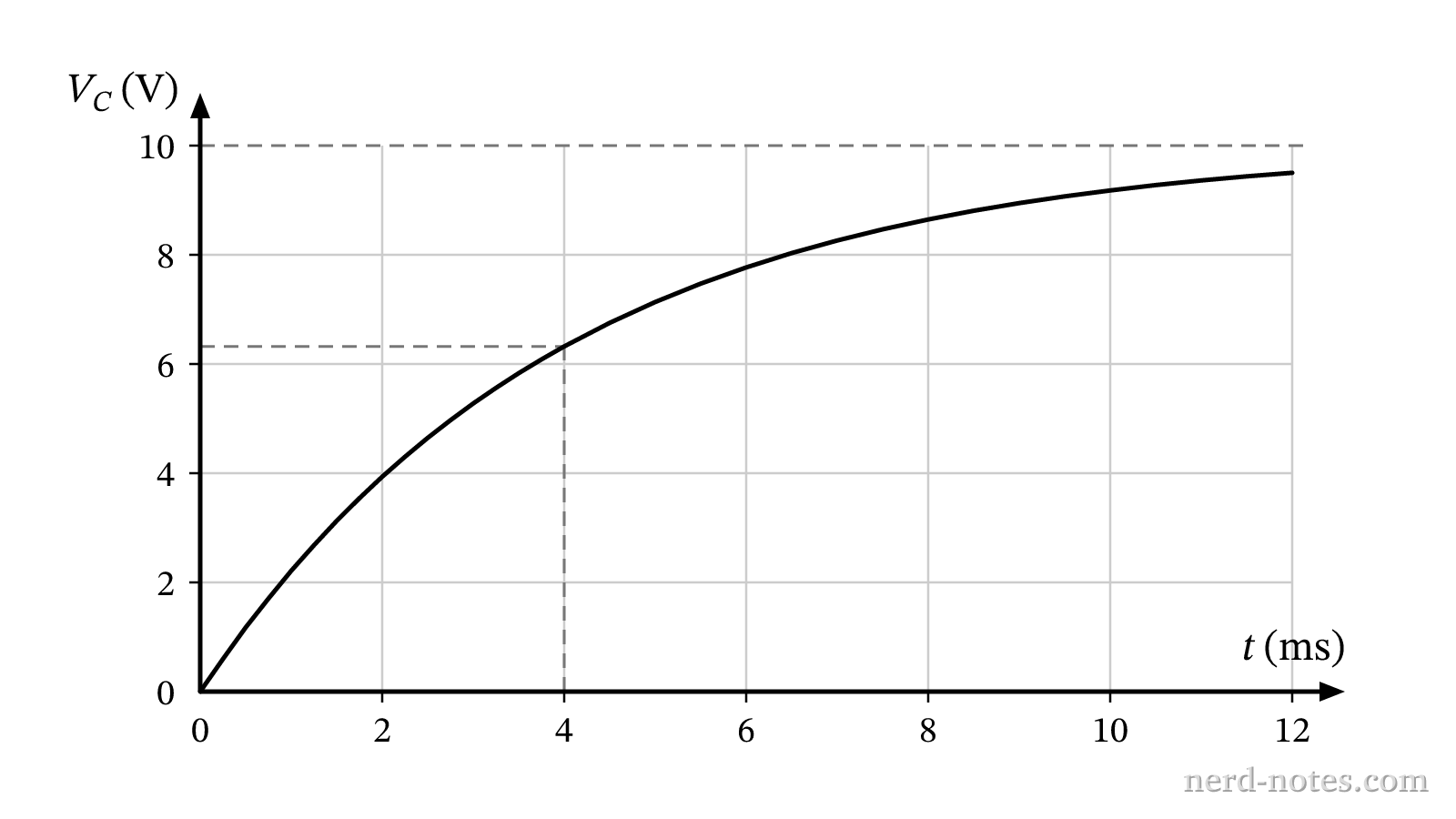

Capacitor potential difference V_C versus time t.
An uncharged capacitor is connected in series with a resistor, an ideal battery with potential difference \(V_0 = 10\text{ V}\), and an open switch. At time \(t = 0\), the switch is closed. The graph shows the measured potential difference \(V_C\) across the capacitor as a function of time \(t\) in milliseconds. The potential difference asymptotically approaches \(10\text{ V}\), reaching \(5.0\text{ V}\) at \(t = 2.8\text{ ms}\) and \(6.3\text{ V}\) at \(t = 4.0\text{ ms}\). Based on the graph, what is the time constant \(\tau\) of the circuit?
