11.5 Compound Direct Current Circuits
BeginnerMCQGraphicalMathematical24.5k
Terminal voltage versus current for a non-ideal battery.
Terminal voltage versus current for a non-ideal battery.

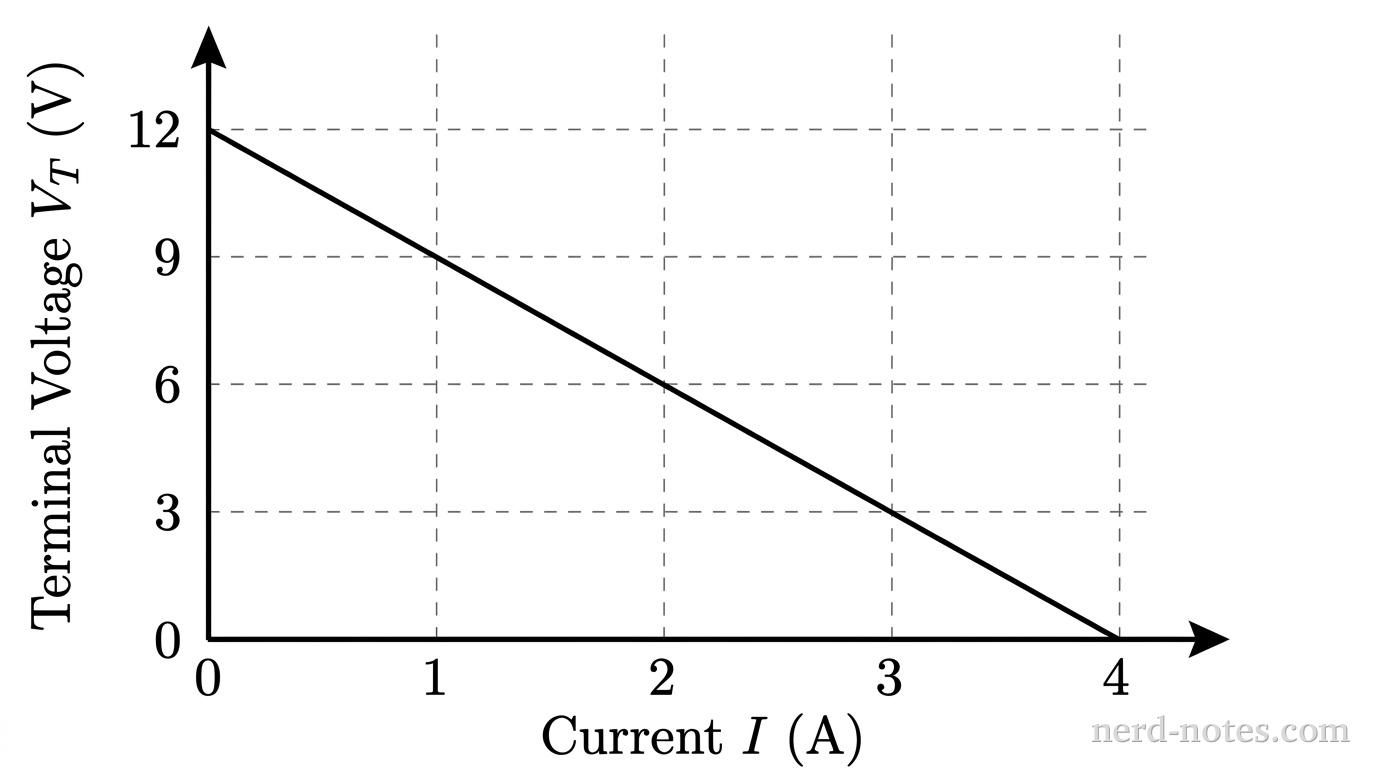

The graph shows the terminal voltage \(V_T\) as a function of current \(I\) for a non-ideal battery. An external load resistor of resistance \(R = 9.0\text{ }\Omega\) is connected across the terminals of this battery. What is the terminal voltage across the battery when connected to this load resistor?
