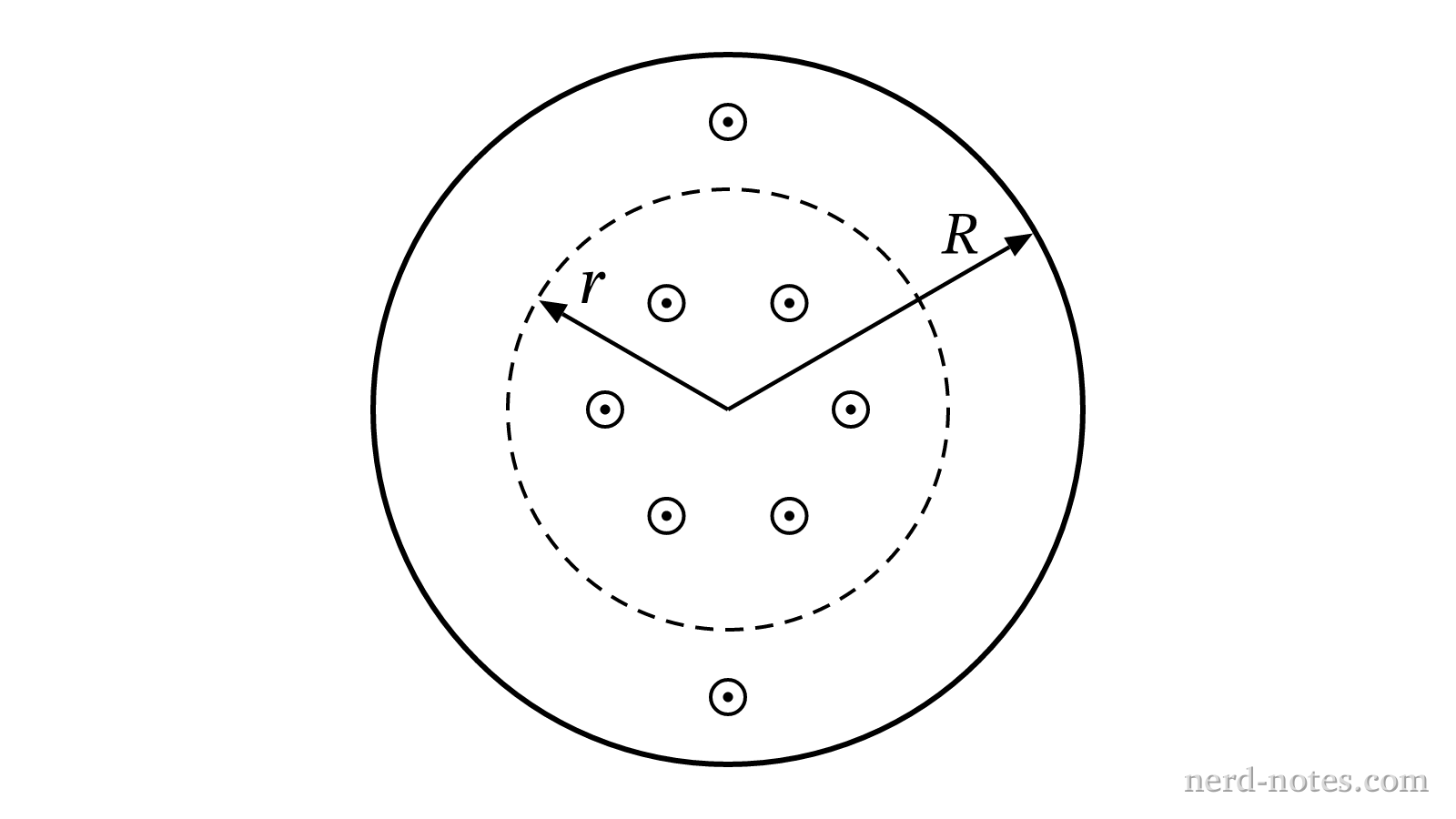

A long, solid cylindrical conductor of radius $R$ carries a non-uniform current directed along its central axis. The current density inside the conductor varies with radial distance $r$ from the axis according to $J(r) = J_0 \left(1 - \dfrac{r}{R}\right)$ for $r \le R$, where $J_0$ is a positive constant. Which of the following expressions gives the magnitude of the magnetic field $B(r)$ inside the conductor at a distance \(r

AP Physics

Unit 1 - Vectors and Kinematics

MCQ

Mathematical

Advanced

Step	Reasoning
Identify Ampère’s law as the tool connecting the magnetic field along a closed circular path to the enclosed current. \[ \oint \vec{B} \cdot d\vec{\ell} = \mu_0 I_{\text{enc}} \]	The question asks for the magnetic field magnitude $B(r)$ inside a cylindrically symmetric current distribution.
Evaluate the line integral around a concentric circular path of radius $r < R$. \[ \oint \vec{B} \cdot d\vec{\ell} = B(r) \cdot 2\pi r \]	Cylindrical symmetry implies that the magnetic field is tangential and uniform in magnitude along the path of radius $r$.
Set up and integrate the enclosed current $I_{\text{enc}}(r)$ using thin cylindrical shells of area $dA = 2\pi r’ \, dr’$. \[ \begin{align} I_{\text{enc}}(r) &= \int_0^r J(r’) \, dA = \int_0^r J_0 \left(1 – \dfrac{r’}{R}\right) (2\pi r’) \, dr’ \\ &= 2\pi J_0 \int_0^r \left(r’ – \dfrac{r’^2}{R}\right) dr’ \\ &= 2\pi J_0 \left[ \dfrac{r^2}{2} – \dfrac{r^3}{3R} \right] \end{align} \]	Because current density depends on radial position $r’$, total enclosed current requires integrating $J(r’) \, dA$ from $r’ = 0$ to $r’ = r$.
Substitute $I_{\text{enc}}(r)$ back into Ampère’s law and solve for $B(r)$. \[ \begin{align} B(r) \cdot 2\pi r &= \mu_0 \cdot 2\pi J_0 \left( \dfrac{r^2}{2} – \dfrac{r^3}{3R} \right) \\ B(r) &= \mu_0 J_0 r \left( \dfrac{1}{2} – \dfrac{r}{3R} \right) = \dfrac{\mu_0 J_0 r}{2}\left(1 – \dfrac{2r}{3R}\right) \end{align} \]	Equating the line integral from Step 2 to $\mu_0 I_{\text{enc}}(r)$ allows solving directly for the field magnitude.

Why each choice is correct or incorrect:

(A) Incorrectly assumes that the enclosed current is given by multiplying the local current density at radius $r$ by the total cross-sectional area, $I_{\text{enc}} = J(r) \pi r^2$, instead of integrating $J(r’) \, dA$.

(B) Omits the factor of $r’$ in the differential area element by incorrectly using $dA = 2\pi \, dr’$ rather than $dA = 2\pi r’ \, dr’$.

(C) Evaluates $\int_0^r r’ \, dr’$ incorrectly as $r^2$ rather than $\dfrac{r^2}{2}$, dropping the factor of $\dfrac{1}{2}$ during integration.

(D) This is the correct answer.
