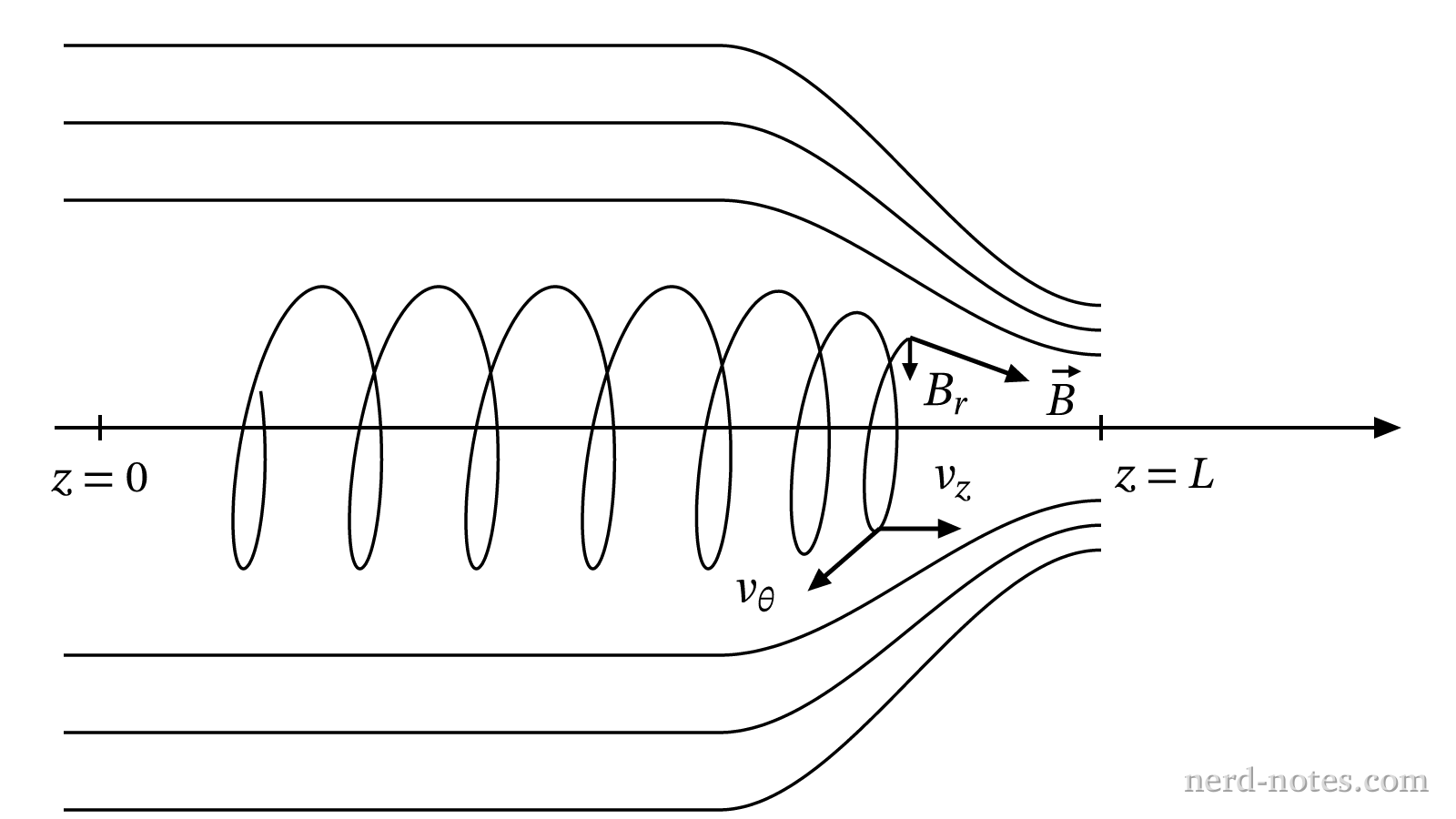

A positively charged particle moves with velocity $\vec{v}$ in a region containing a non-uniform magnetic field $\vec{B}$ aligned generally along the $z$-axis (a magnetic bottle configuration). Near the “neck” of the bottle at $z > 0$, the magnetic field lines converge toward the $z$-axis, introducing a radial magnetic field component $B_r < 0$ directed toward the axis. The particle spirals around the $z$-axis with an azimuthal velocity component $v_\theta$ while traveling in the $+z$-direction with axial speed $v_z$. As the particle approaches the neck, its axial speed $v_z$ decreases to zero and the particle reflects back toward $z = 0$. Which of the following explanations correctly accounts for the axial deceleration of the particle and the work done by the magnetic field during this reflection?(a) The converging magnetic field lines create an axial gradient in $B_z$ that exerts a direct magnetic force along the $-z$-direction. Because this force opposes the particle’s displacement, the magnetic field performs negative work on the particle, reducing its total kinetic energy until it momentarily stops and reflects. , (b) As the particle moves toward the neck, the spatial variation in magnetic field induces a retarding axial electric field. This induced electric field performs negative work on the particle, decreasing its kinetic energy until its axial velocity reaches zero. , (c) The inward radial field component $B_r$ exerts a retarding axial force $F_z$. The magnetic field does negative work on the axial component of motion while doing an equal amount of positive work on the azimuthal component of motion, resulting in a net work of zero. , (d) The inward radial field component $B_r$ interacts with the particle’s azimuthal velocity $v_\theta$ via $q(\vec{v}_\theta \times \vec{B}_r)$ to produce a retarding axial force $F_z$. The magnetic force performs zero work on the particle because $\vec{F}_B$ is perpendicular to $\vec{v}$ at every instant, continuously converting axial kinetic energy into transverse kinetic energy until $v_z = 0$. :

A positively charged particle moves with velocity $\vec{v}$ in a region containing a non-uniform magnetic field $\vec{B}$ aligned generally along the $z$-axis (a magnetic bottle configuration). Near the "neck" of the bottle at $z > 0$, the magnetic field lines converge toward the $z$-axis, introducing a radial magnetic field component $B_r < 0$ directed toward the axis. The particle spirals around the $z$-axis with an azimuthal velocity component $v_\theta$ while traveling in the $+z$-direction with axial speed $v_z$. As the particle approaches the neck, its axial speed $v_z$ decreases to zero and the particle reflects back toward $z = 0$. Which of the following explanations correctly accounts for the axial deceleration of the particle and the work done by the magnetic field during this reflection? • Nerd Notes

AP Physics

Unit 1 - Vectors and Kinematics

MCQ

Mathematical

Advanced

Step	Reasoning
Identify the origin of the retarding axial force from the magnetic force expression. \[ \vec{F}_B = q(\vec{v} \times \vec{B}) \]	The question asks for the mechanism responsible for decelerating the particle’s axial motion $v_z$.
Evaluate the axial component of the cross product in cylindrical coordinates. \[ F_z = \left[ q(\vec{v} \times \vec{B}) \right]_z = q(v_\theta B_r – v_r B_\theta) = q v_\theta B_r \]	The converging geometry introduces a radial magnetic field component $B_r$ directed toward the axis, which interacts with the spiraling particle’s azimuthal velocity $v_\theta$.
Evaluate the instantaneous power and total work done by the magnetic field. \[ P = \vec{F}_B \cdot \vec{v} = q(\vec{v} \times \vec{B}) \cdot \vec{v} = 0 \implies W = \int P\,dt = 0 \]	The question asks to account for the work done by the magnetic force on the particle.
Relate zero total work to the partitioning of kinetic energy. \[ \Delta K = \Delta K_z + \Delta K_\perp = 0 \implies \Delta K_\perp = -\Delta K_z \]	Since the magnetic force does zero work on the particle, its total kinetic energy $K = K_z + K_\perp$ remains constant throughout the motion, transferring axial kinetic energy into transverse gyrational energy.

Why each choice is correct or incorrect:

(A) Incorrectly claims that the magnetic force performs negative work and reduces the particle’s total kinetic energy. Magnetic forces are always perpendicular to velocity and perform zero work.

(B) Fails to recognize that the static magnetic field configuration does not produce an induced electric field, and incorrectly claims that the particle loses total kinetic energy.

(C) Misinterprets work as a quantity that can be done separately on orthogonal velocity components. The magnetic force is perpendicular to the total velocity vector $\vec{v}$ at every instant, so the instantaneous power $\vec{F}_B \cdot \vec{v}$ is strictly zero, not a combination of positive and negative work components.

(D) This is the correct answer. The cross product of the azimuthal velocity $v_\theta$ with the inward radial field $B_r$ produces a retarding axial force, while $\vec{F}_B \perp \vec{v}$ guarantees zero net work, conserving total kinetic energy by converting axial kinetic energy to transverse kinetic energy.
