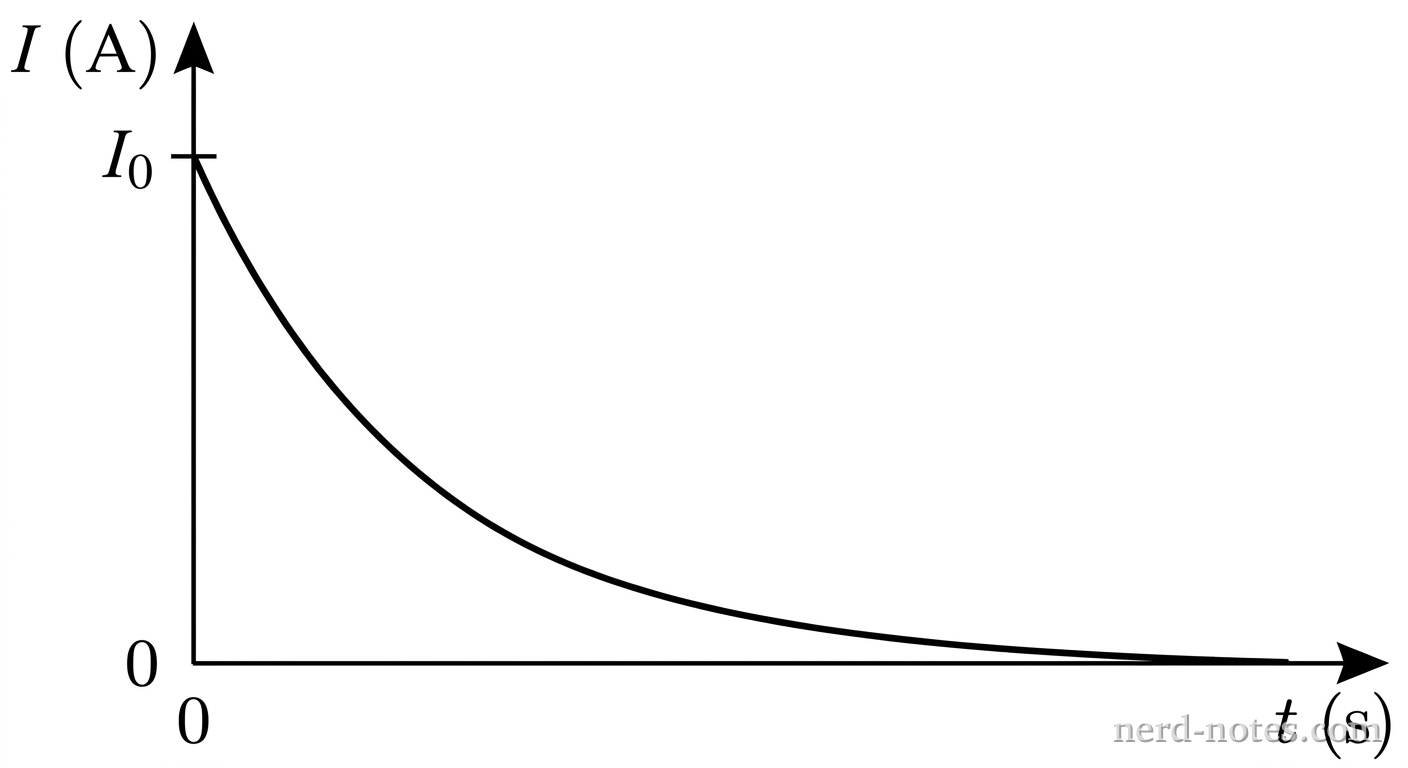

A circuit containing a resistor of resistance $R$ and an inductor of inductance $L$ initially carries a steady-state current $I_0$. At time $t = 0$, the power source is bypassed, allowing the current to decay through the resistor as shown in the $I(t)$ graph below. Which of the following claims correctly describes the magnitude of the potential difference $|V_L|$ across the inductor as time progresses, based on the features of the graph?(a) The potential difference $|V_L|$ is zero at $t = 0$ because the current reaches its maximum value $I_0$ at that instant. , (b) The potential difference $|V_L|$ increases over time because the magnitude of the slope of the $I(t)$ graph increases as current decays. , (c) The potential difference $|V_L|$ is maximum at $t = 0$ and decreases toward zero because $|V_L|$ is proportional to the magnitude of the slope of the $I(t)$ graph. , (d) The potential difference $|V_L|$ remains constant over time because it is determined by the area under the $I(t)$ curve, which is fixed. :

A circuit containing a resistor of resistance $R$ and an inductor of inductance $L$ initially carries a steady-state current $I_0$. At time $t = 0$, the power source is bypassed, allowing the current to decay through the resistor as shown in the $I(t)$ graph below. Which of the following claims correctly describes the magnitude of the potential difference $|V_L|$ across the inductor as time progresses, based on the features of the graph? • Nerd Notes

AP Physics

Unit 1 - Vectors and Kinematics

MCQ

Mathematical

Intermediate

Step	Reasoning
Relate the magnitude of the potential difference across the inductor $\|V_L\|$ to the current $I(t)$. \[ \|V_L\| = L \left\| \dfrac{dI}{dt} \right\| \]	The question asks about the magnitude of the potential difference across the inductor, which is governed by Faraday’s law of induction applied to self-inductance.
Connect the derivative $\dfrac{dI}{dt}$ to a visual feature of the given graph. \[ \text{Slope} = \dfrac{dI}{dt} \]	The rate of change of current with respect to time corresponds directly to the instantaneous slope of the $I(t)$ curve.
Analyze how the magnitude of the slope behaves as a function of time for exponential decay. \[ \left\| \dfrac{dI}{dt} \right\| = \left\| -\dfrac{I_0}{\tau} e^{-t/\tau} \right\| = \dfrac{I_0}{\tau} e^{-t/\tau} \]	Evaluating the slope of the exponential decay curve $I(t) = I_0 e^{-t/\tau}$ determines how $\|V_L\|$ evolves over time.
Synthesize the slope behavior to select the correct physical claim.	At $t = 0$, the curve is at its steepest point (maximum magnitude of slope), so $\|V_L\|$ is at its maximum value. As $t \to \infty$, the curve flattens out and the slope approaches zero, causing $\|V_L\|$ to decay exponentially toward zero.

Why each choice is correct or incorrect:

(A) Incorrectly assumes $|V_L|$ depends on the value of $I$ rather than its derivative $dI/dt$; at maximum current, the magnitude of the slope is actually at its peak, not zero.

(B) Incorrectly asserts that the magnitude of the slope increases; exponential decay becomes flatter over time, meaning the slope magnitude decreases.

(C) This is the correct answer. The potential difference across the inductor depends directly on the magnitude of the slope $|dI/dt|$, which is greatest at $t = 0$ and decays toward zero.

(D) Incorrectly connects voltage across an inductor to the area under the $I(t)$ curve (which gives total charge transferred, $Q = \int I\,dt$) rather than to the slope of the curve.
