AP Physics C: E&M
13.2 Electromagnetic Induction
13.1 Magnetic Flux
AdvancedMCQMathematical23.3k

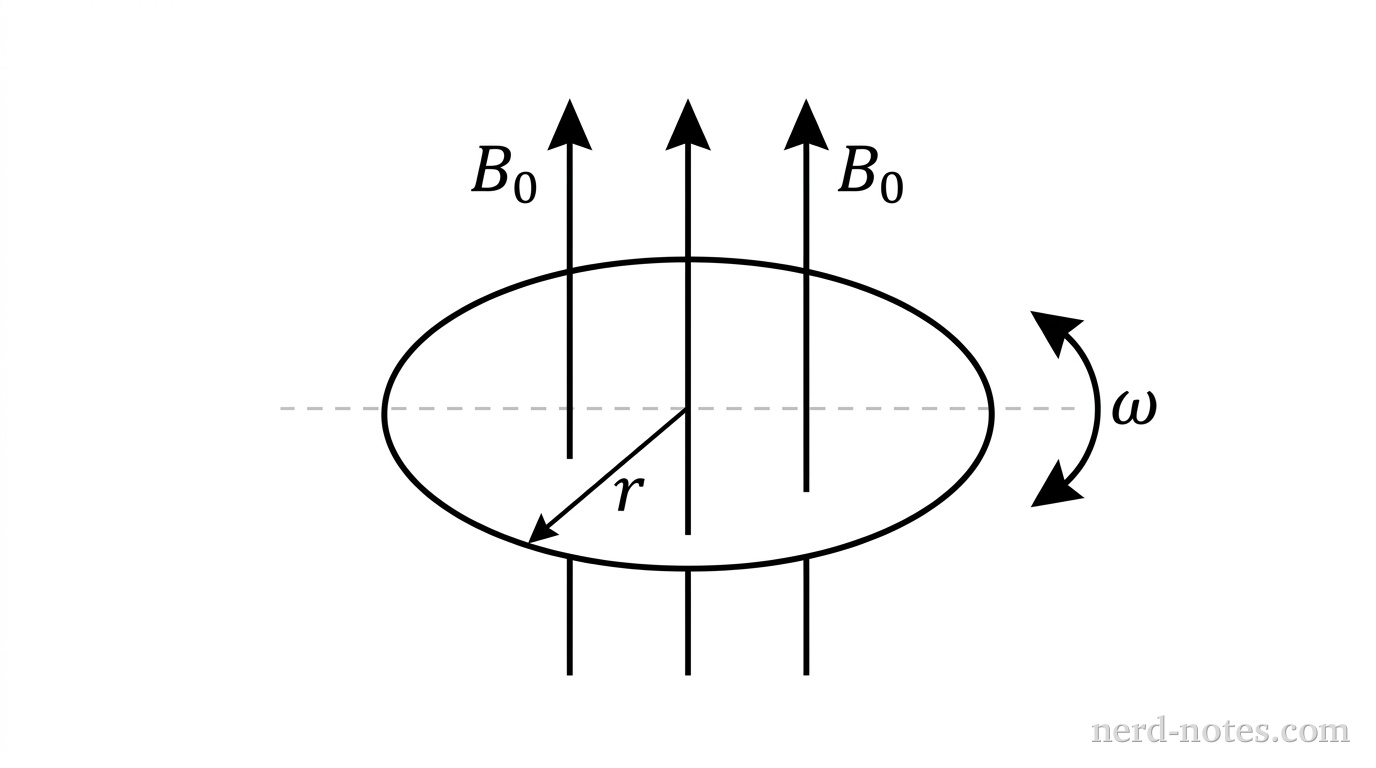

A 3D perspective diagram showing a circular loop of wire with radius r sitting flat in the xy-plane. Three parallel vertical arrows labeled B_0 point upward in the +z direction passing perpendicularly through the interior of the loop. A dashed line passes horizontally through the center of the loop along the x-axis, representing the axis of rotation. A curved arrow around the dashed line indicates a 180-degree rotation of the loop at constant angular speed omega. No other labels, lines, text, or axes appear.

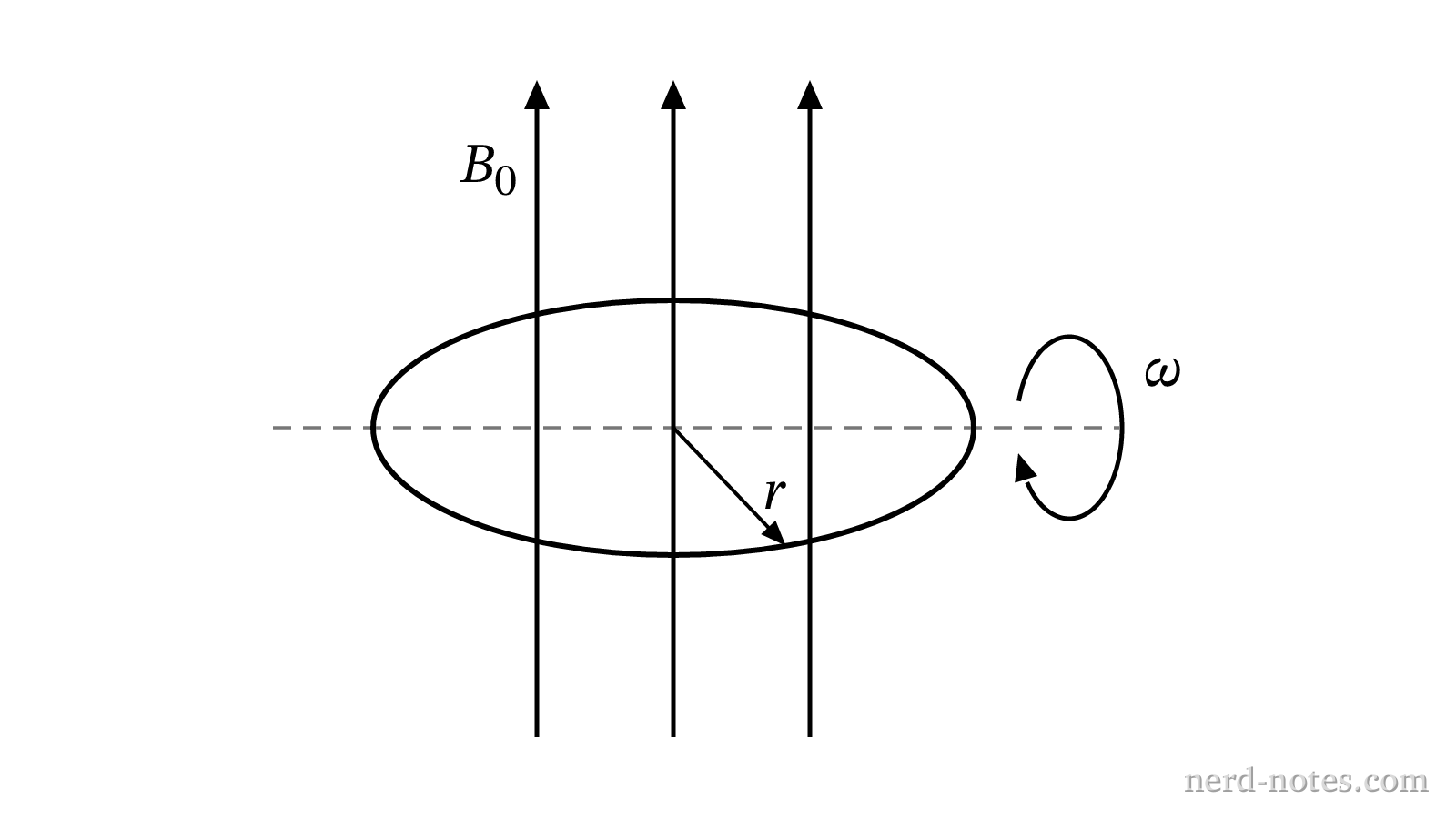

A circular coil rotating in a uniform magnetic field.
A flat circular coil consists of \(N\) tightly wound turns of wire, has radius \(r\), and has total electrical resistance \(R\). The coil lies initially in the \(xy\)-plane within a uniform, constant magnetic field \(\vec{B} = B_0 \hat{k}\). The coil is then rotated by \(180^\circ\) at a constant angular speed \(\omega\) about a fixed diameter parallel to the \(x\)-axis. Which of the following expressions represents the total magnitude of electric charge \(Q\) that passes through any cross-section of the wire during this rotation?
