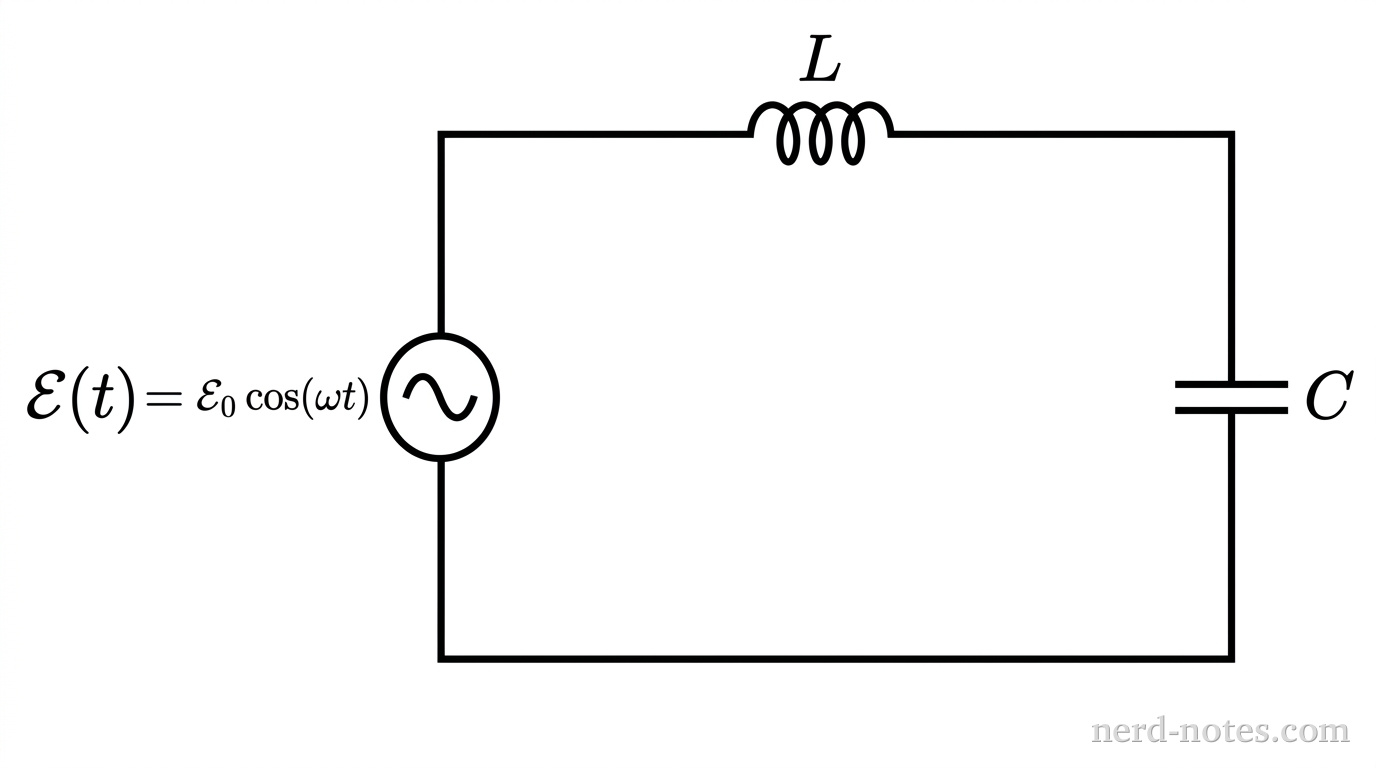

A circuit consists of an ideal inductor of inductance $L$ and an ideal capacitor of capacitance $C$ connected in series with a time-varying voltage source that provides an electromotive force $\mathcal{E}(t) = \mathcal{E}_0 \cos(\omega t)$. The charge on the capacitor oscillates according to $q(t) = Q_{\text{max}} \cos(\omega t)$, where \(Q

AP Physics

Unit 1 - Vectors and Kinematics

MCQ

Mathematical

Advanced

Step	Reasoning
Apply Kirchhoff’s loop rule to the series LC circuit driven by the time-varying voltage source. \[ \mathcal{E}(t) – v_L – v_C = 0 \implies \mathcal{E}_0 \cos(\omega t) – L \dfrac{dI}{dt} – \dfrac{q}{C} = 0 \]	To relate the driving voltage $\mathcal{E}(t)$ to the physical quantities in the circuit, sum the potential differences around the closed loop to zero.
Express current in terms of charge to formulate the second-order differential equation for charge. \[ L \dfrac{d^2 q}{dt^2} + \dfrac{q}{C} = \mathcal{E}_0 \cos(\omega t) \]	Because current is the rate of change of charge ($I = \dfrac{dq}{dt}$), the inductive voltage drop depends on the second time derivative of charge ($\dfrac{dI}{dt} = \dfrac{d^2q}{dt^2}$).
Substitute the proposed solution $q(t) = Q_{\text{max}} \cos(\omega t)$ into the differential equation. \[ \dfrac{dq}{dt} = -\omega Q_{\text{max}} \sin(\omega t) \implies \dfrac{d^2 q}{dt^2} = -\omega^2 Q_{\text{max}} \cos(\omega t) \]	Differentiating $q(t)$ twice with respect to time gives the charge acceleration needed for the inductive back-EMF term.
Substitute $\dfrac{d^2q}{dt^2}$ into the loop equation and solve for the amplitude $Q_{\text{max}}$. \[ L \left(-\omega^2 Q_{\text{max}} \cos(\omega t)\right) + \dfrac{Q_{\text{max}}}{C} \cos(\omega t) = \mathcal{E}_0 \cos(\omega t) \\ \left( \dfrac{1}{C} – L\omega^2 \right) Q_{\text{max}} = \mathcal{E}_0 \\ Q_{\text{max}} = \dfrac{\mathcal{E}_0}{\dfrac{1}{C} – L\omega^2} = \dfrac{\mathcal{E}_0 C}{1 – \omega^2 LC} \]	Substituting the second derivative converts the differential equation into an algebraic equation from which $\cos(\omega t)$ cancels out.

Why each choice is correct or incorrect:

(A) Incorrectly drops the negative sign when differentiating $\cos(\omega t)$ twice, resulting in $+\omega^2$ and an addition sign in the denominator.

(B) Mistakenly uses $\omega \sqrt{LC}$ instead of $\omega^2 LC$ in the denominator, failing to square the frequency ratio $\omega/\omega_0$.

(C) This is the correct answer.

(D) Ignores the electrostatic potential difference $q/C$ across the capacitor in Kirchhoff’s loop rule, balancing the driving voltage solely against the inductor’s back-EMF.
