Induced EMF \(\mathcal{E}\) as a function of time \(t\).
Induced EMF \(\mathcal{E}\) as a function of time \(t\).

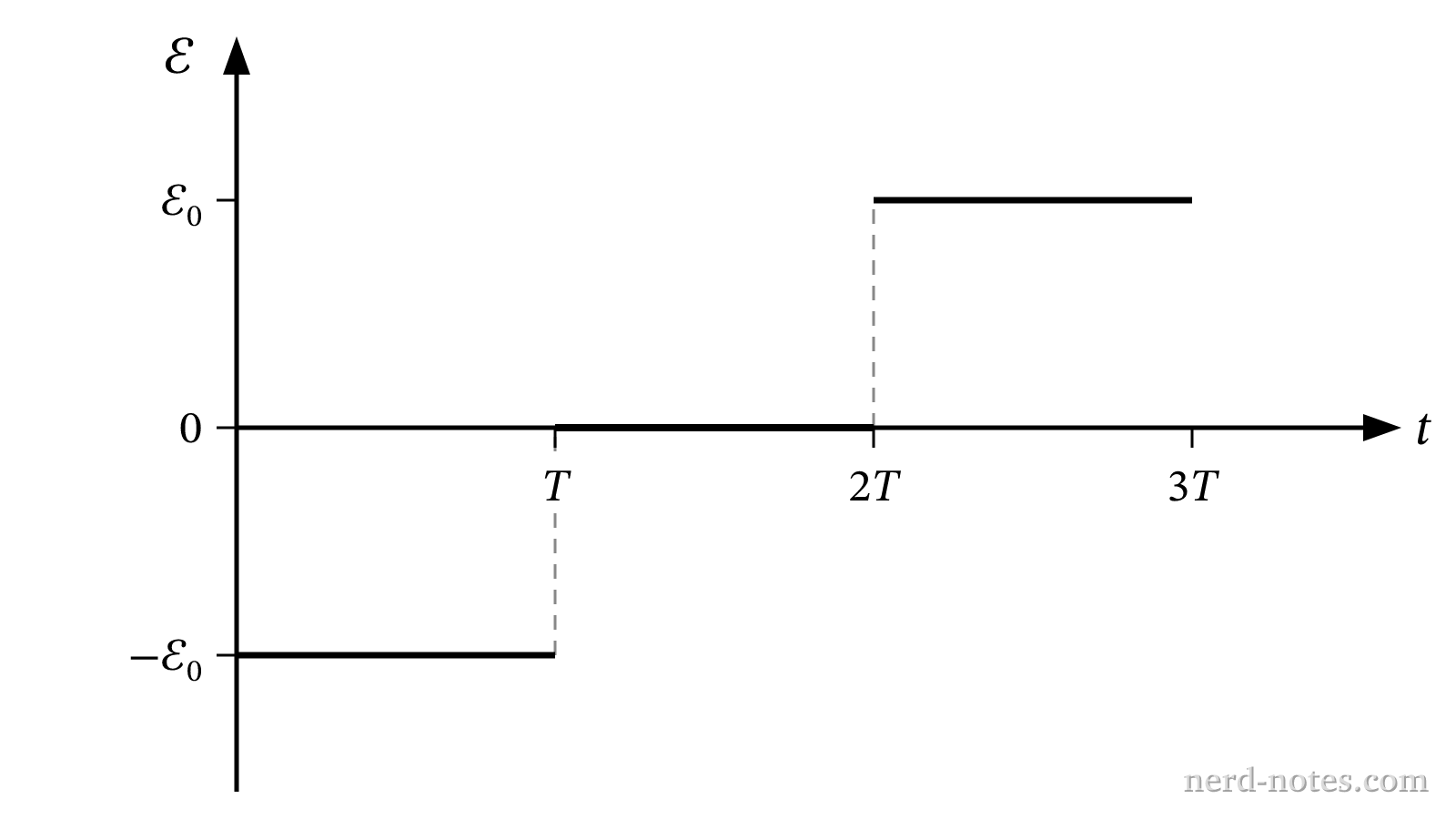

A conducting loop is fixed in a region with a magnetic field directed perpendicular to the plane of the loop. The induced electromotive force (EMF) \(\mathcal{E}\) in the loop is measured as a function of time \(t\) and is shown in the graph. At time \(t = 0\), the magnetic flux through the loop is zero (\(\Phi_B = 0\)). Which of the following graphs best represents the magnetic flux \(\Phi_B\) through the loop as a function of time \(t\)?
