3.3 Potential Energy
IntermediateMCQGraphicalMathematicalConceptual21.8k

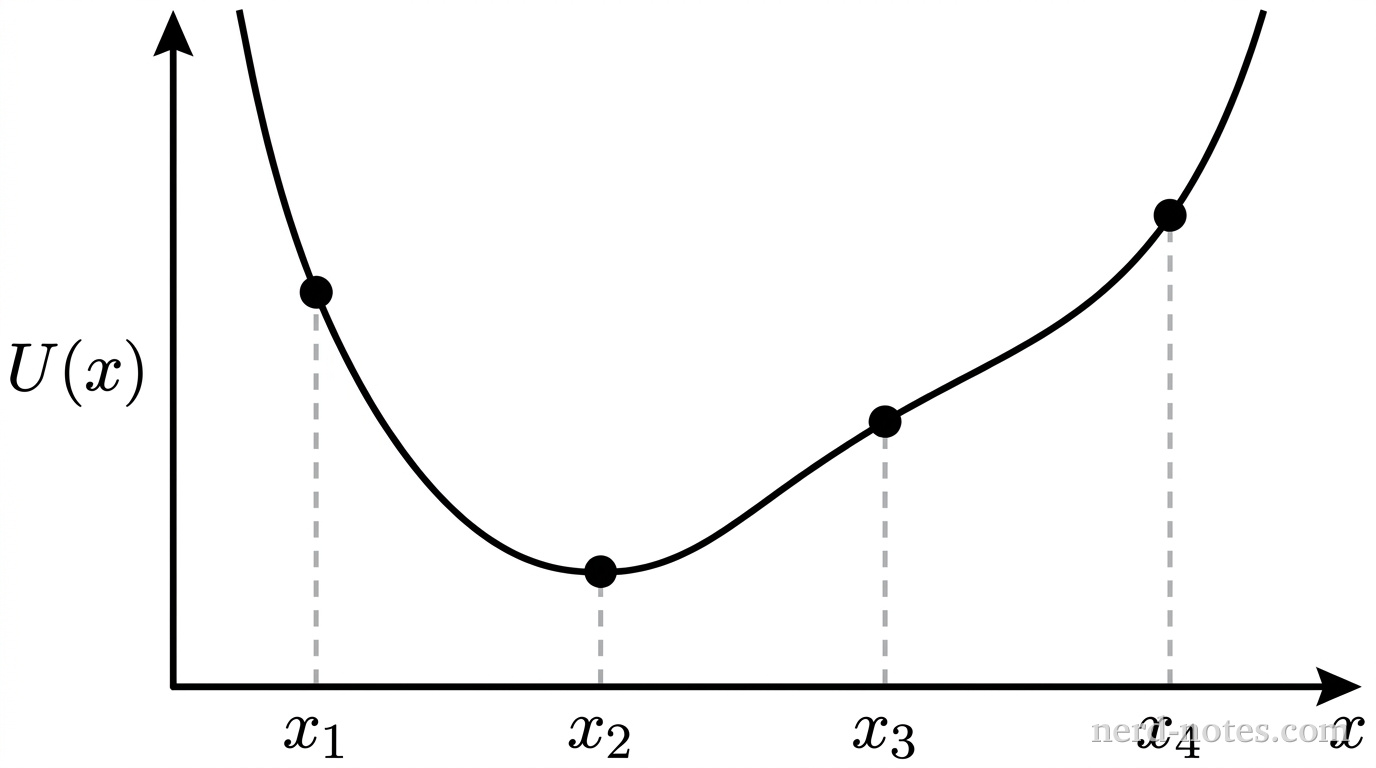

A 2D Cartesian graph with a horizontal axis labeled x and a vertical axis labeled U(x), with no gridlines. A single continuous smooth solid curve represents potential energy. Starting at the top left with high potential energy, the curve slopes steeply downward to the right through a solid dot labeled x_1, reaches a smooth rounded local minimum with a horizontal tangent at a solid dot labeled x_2, ascends with a moderate positive slope through a solid dot labeled x_3, and curves upward more steeply through a solid dot labeled x_4. From each of the four dots, a vertical dashed line extends straight down to the horizontal axis where the corresponding position labels x_1, x_2, x_3, and x_4 appear along the axis. No other labels, lines, text, or axes appear.

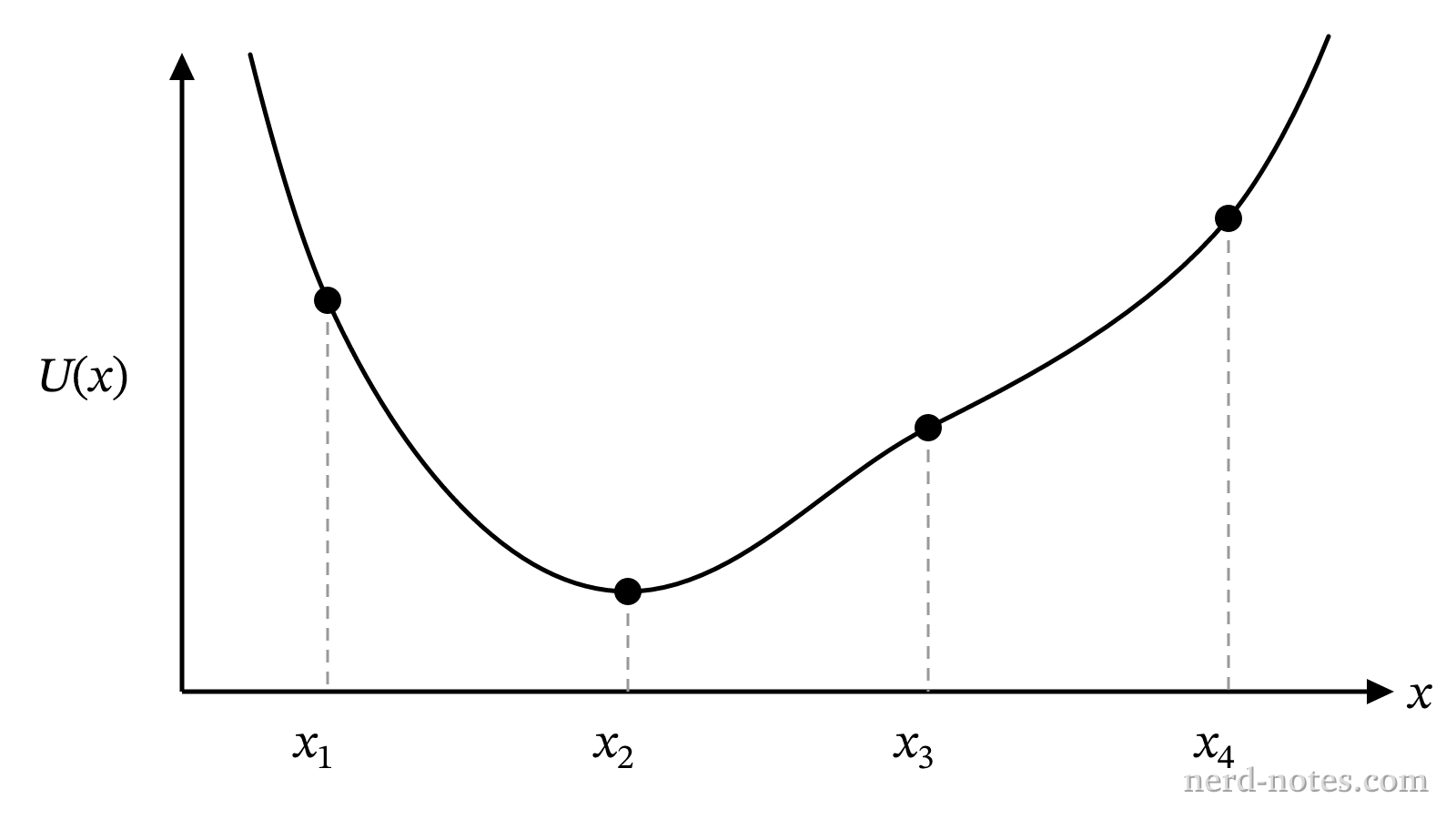

Graph of potential energy U(x) as a function of position x.
A particle of mass \(m\) is constrained to move along the \(x\)-axis in a region where its potential energy \(U(x)\) varies with position as shown in the graph. Four locations along the \(x\)-axis are labeled \(x_1\), \(x_2\), \(x_3\), and \(x_4\), where \(x_2\) corresponds to a local minimum of \(U(x)\). Which of the following correctly ranks the \(x\)-component of the net conservative force \(F_x\) exerted on the particle at these four positions from greatest to least?

Log In to Continue

Accounts are free! Log in to try this question, see explanations, save progress, and more!
