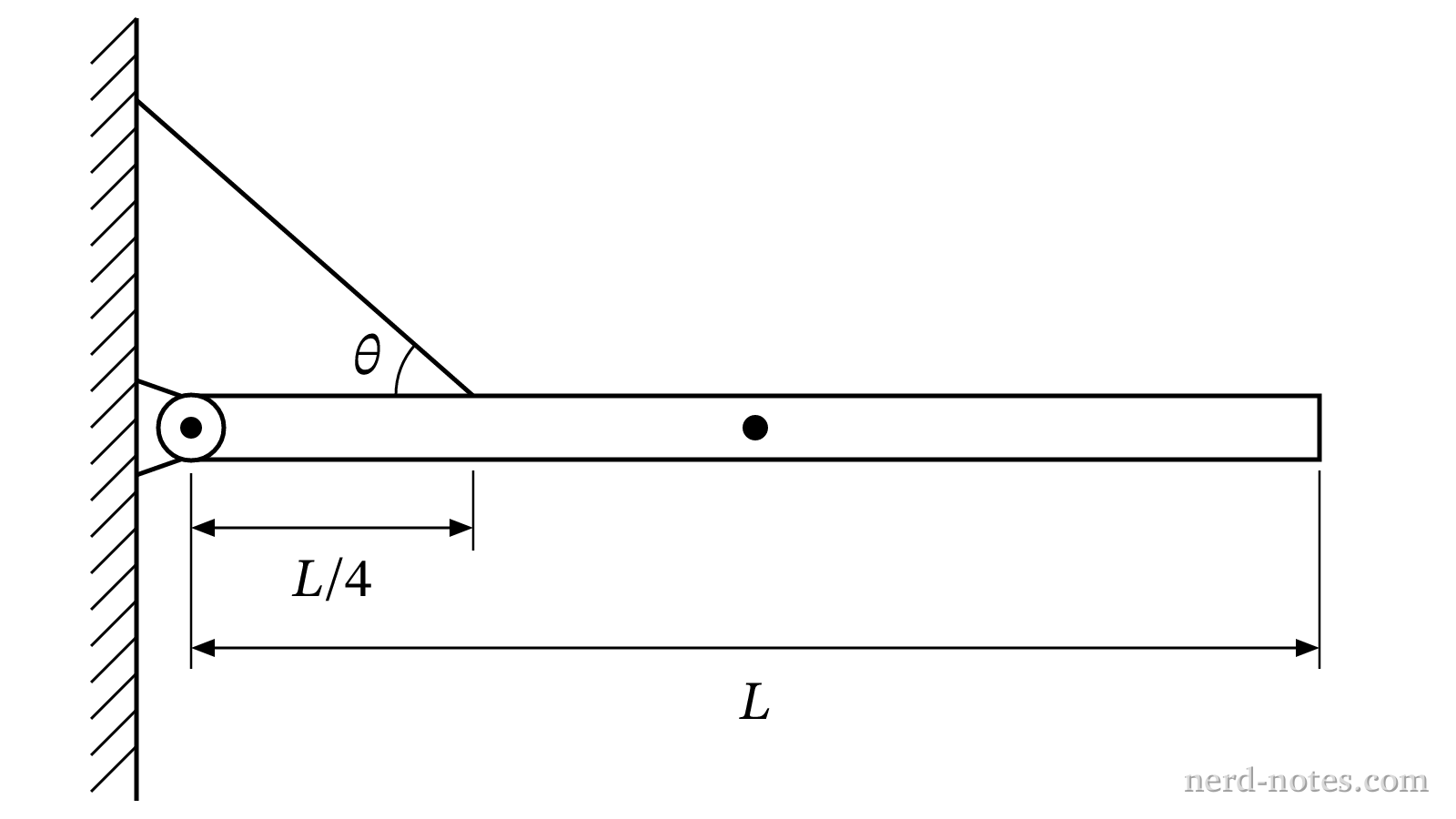

A uniform beam held horizontally by a pivot and a cable.
A uniform beam held horizontally by a pivot and a cable.
A uniform rigid beam of length \(L\) and weight \(W\) is attached to a vertical wall by a frictionless pivot at its left end and held in a horizontal orientation. A support cable is attached to the beam at a distance \(\dfrac{L}{4}\) from the pivot and connects to the wall at an angle \(\theta\) above the beam. A sensor measures the vertical force exerted by the pivot on the beam and records a value directed downward. Which of the following provides the correct physical explanation for this observation?
