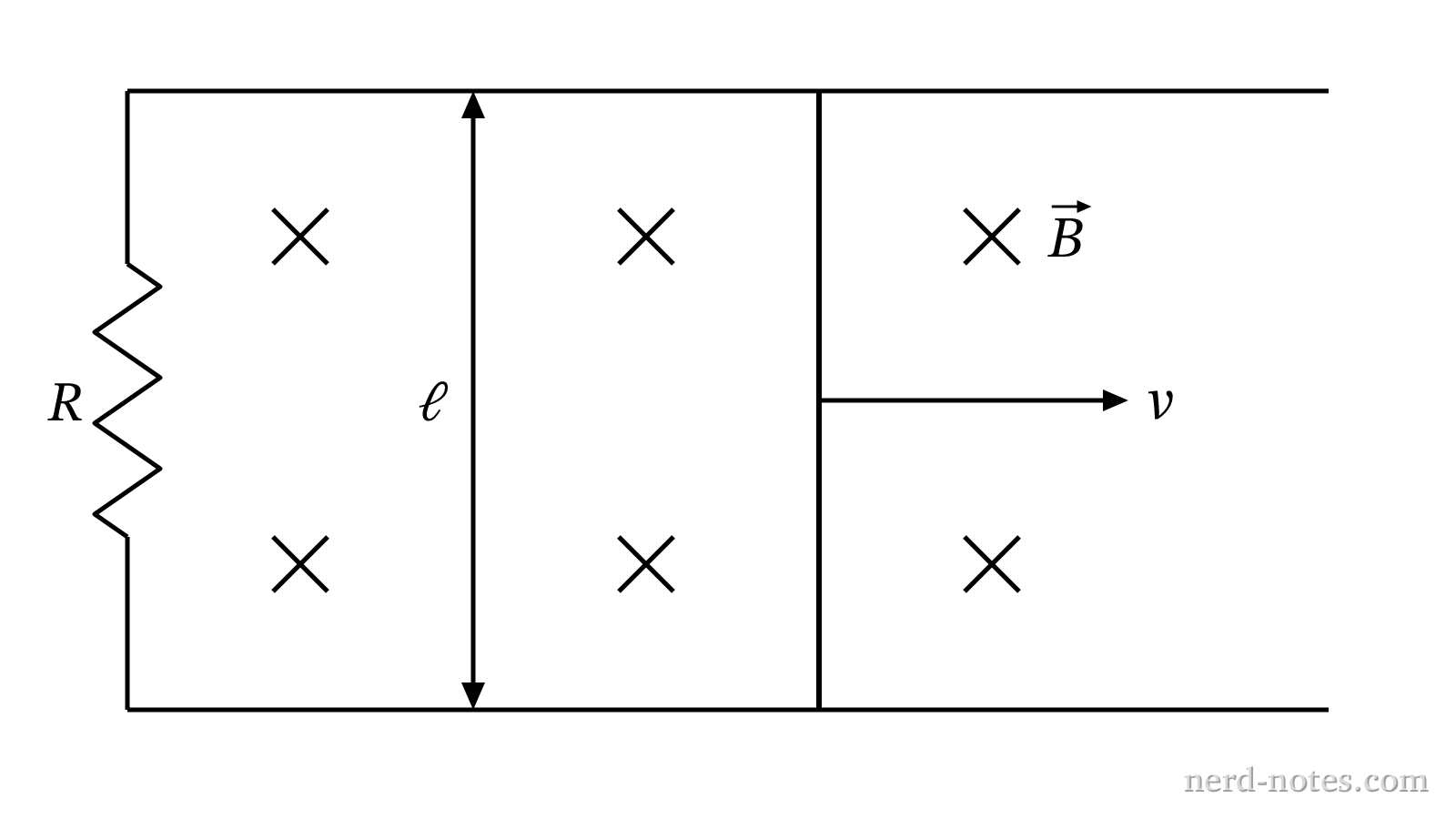

A conducting bar moving at constant speed \(v\) along parallel rails in a uniform magnetic field \(\vec{B}\).
A conducting bar moving at constant speed \(v\) along parallel rails in a uniform magnetic field \(\vec{B}\).
Two separate circuits, Circuit 1 and Circuit 2, each consist of a conducting bar of length \(\ell\) sliding horizontally to the right at a constant speed \(v\) along a pair of frictionless, parallel conducting rails separated by distance \(\ell\). Both circuits are located in identical, uniform magnetic fields \(\vec{B}\) directed perpendicular to the plane of the rails, and the rails have negligible resistance. Circuit 1 contains a load resistor of resistance \(R\), while Circuit 2 contains a load resistor of resistance \(2R\). Which row in the table correctly compares the induced electromotive force \(\mathcal{E}_2\), the magnitude of the magnetic braking force \(F_{B,2}\), and the rate of electrical energy dissipation \(P_2\) in Circuit 2 to the corresponding quantities in Circuit 1?

RowInduced EMF \(\mathcal{E}_2\)Magnetic Force \(F_{B,2}\)Dissipated Power \(P_2\)
A\(\mathcal{E}_1\)\(\dfrac{1}{2}F_{B,1}\)\(\dfrac{1}{2}P_1\)
B\(\dfrac{1}{2}\mathcal{E}_1\)\(\dfrac{1}{2}F_{B,1}\)\(\dfrac{1}{4}P_1\)
C\(\mathcal{E}_1\)\(2F_{B,1}\)\(2P_1\)
D\(\mathcal{E}_1\)\(\dfrac{1}{2}F_{B,1}\)\(\dfrac{1}{4}P_1\)
