IntermediateMCQDrawing RepresentationsMathematicalConceptual24.7k
Circuit schematic with four identical lightbulbs and an ideal battery.
Circuit schematic with four identical lightbulbs and an ideal battery.

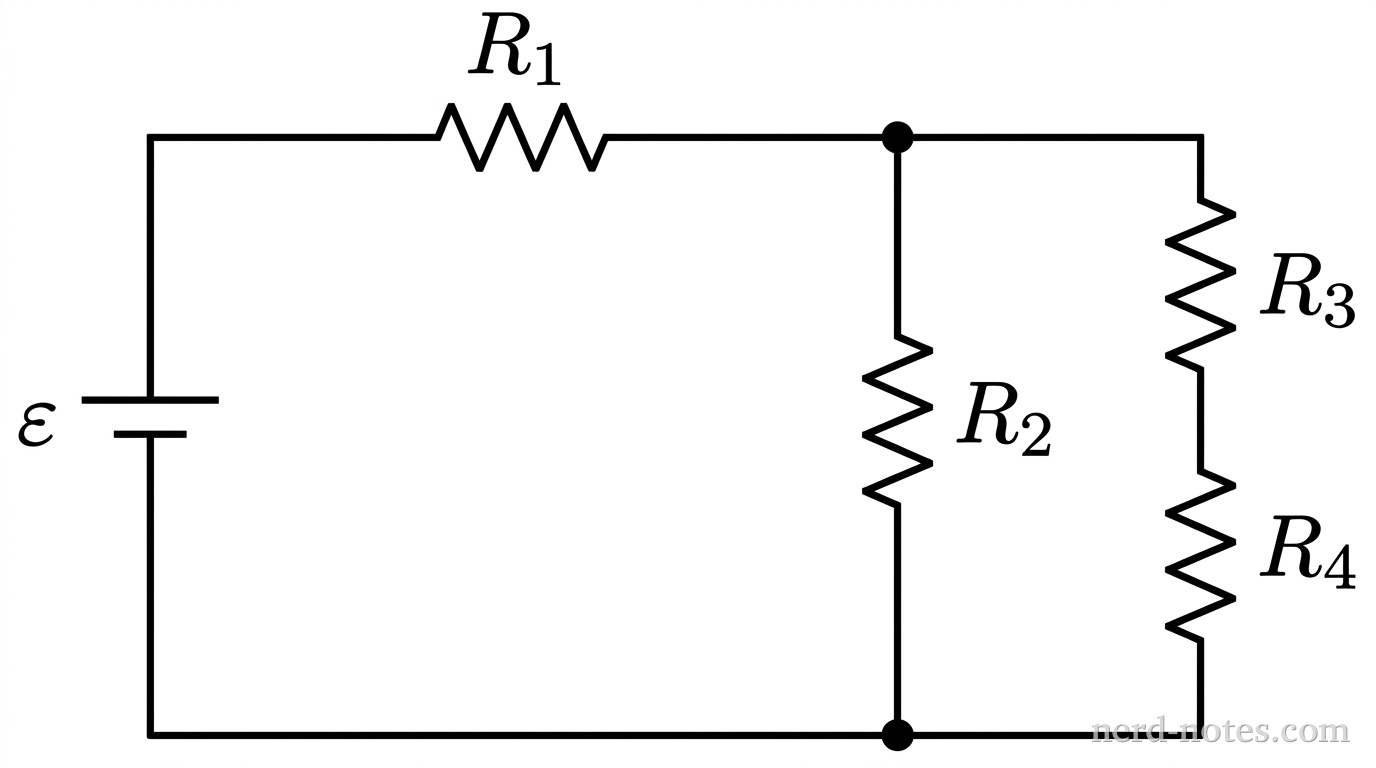

A circuit contains an ideal battery of potential difference \(\varepsilon\) connected to four identical lightbulbs labeled 1, 2, 3, and 4, each having a constant resistance \(R\). Bulb 1 is connected in series with the battery in the main circuit line, which then connects to a parallel combination of two branches: Branch A contains only bulb 2, while Branch B contains bulbs 3 and 4 connected in series with each other. Which of the following correctly ranks the brightness (power dissipated \(P\)) of the four lightbulbs?
