AdvancedMCQGraphicalMathematicalConceptual15.7k

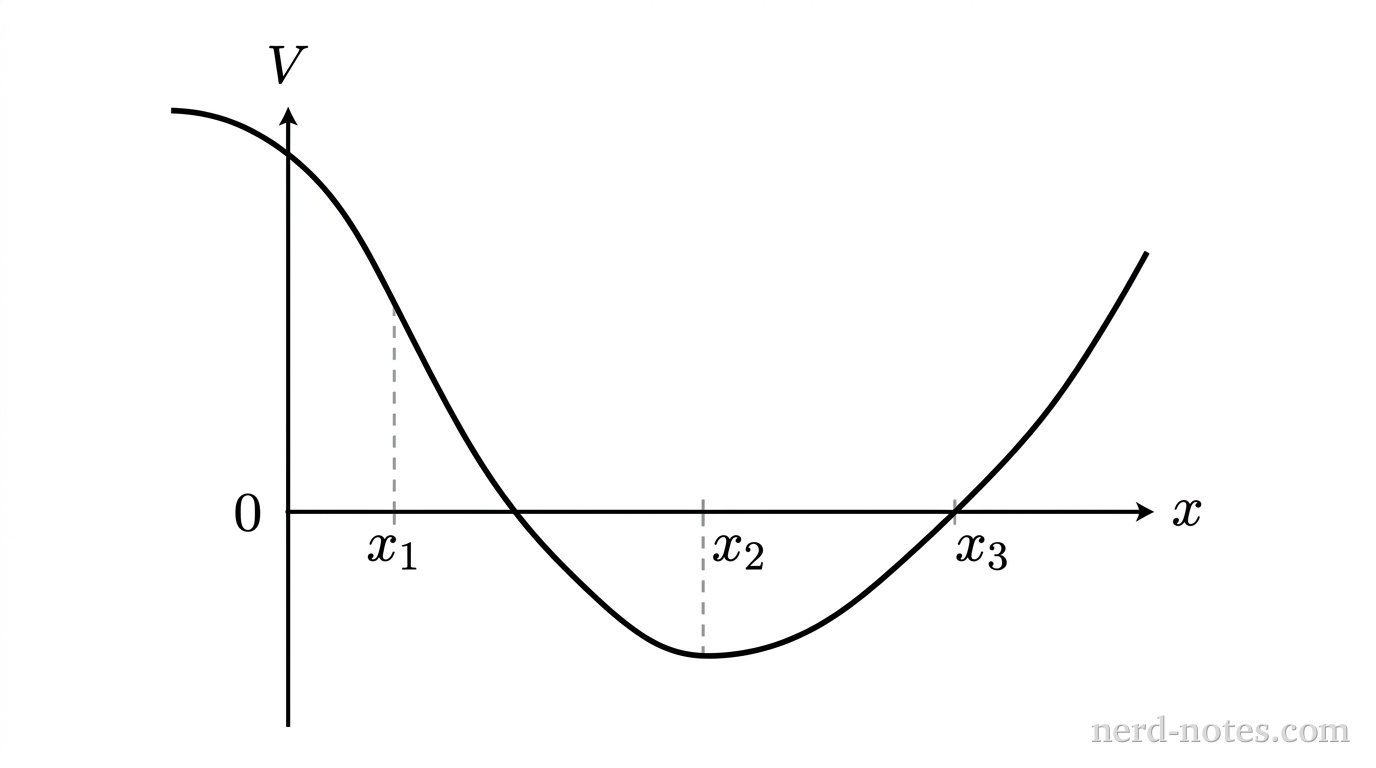

Electric potential V as a function of position x.
Electric potential V as a function of position x.
The graph shows the electric potential \(V\) as a function of position \(x\) along a line in an electrostatic field. Three specific positions along the line are labeled \(x_1\), \(x_2\), and \(x_3\). Which of the following claims correctly compares the electric field strength at two of these positions and identifies the direction of the electrostatic force exerted on an electron placed along this line?
