13.2 Images Formed by Mirrors
AdvancedMCQMathematicalProportional AnalysisConceptual21.8k

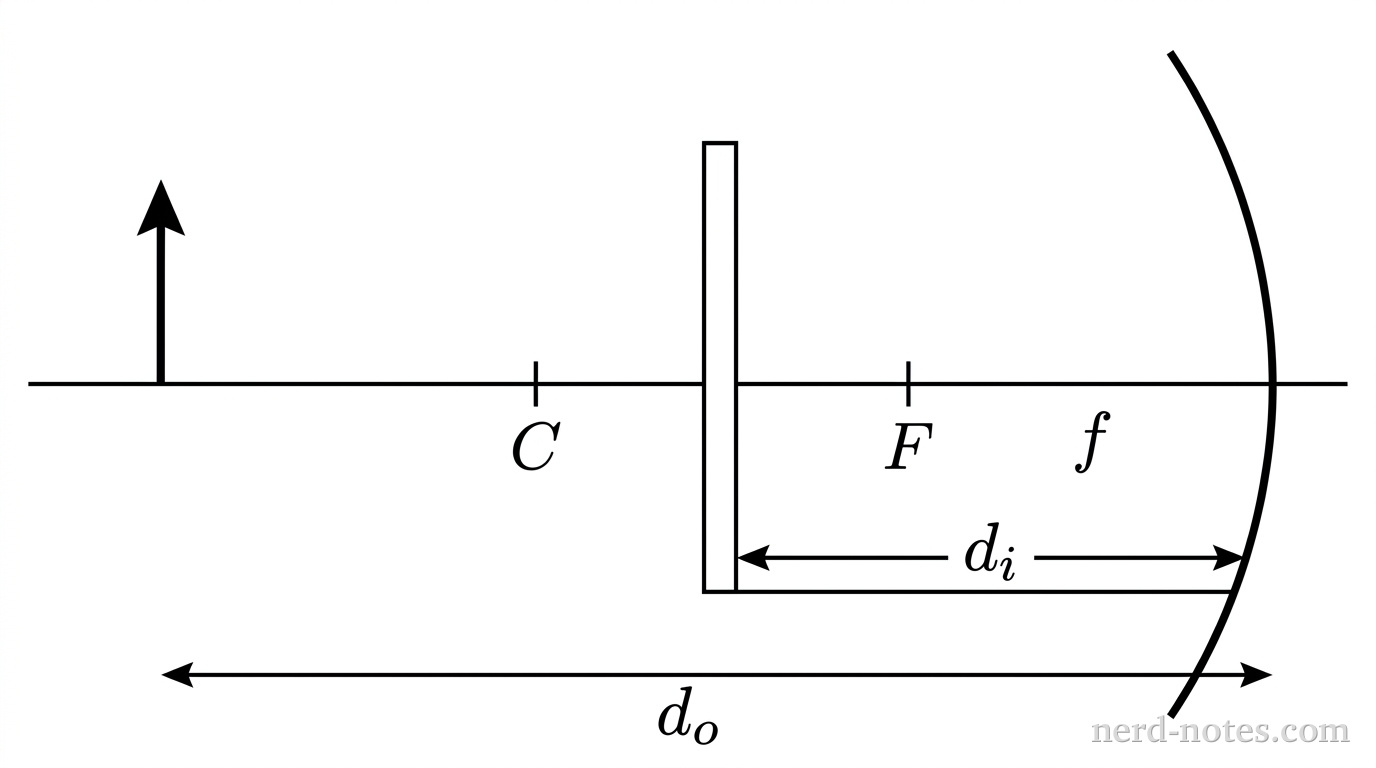

A horizontal line represents the optical bench axis. On the right, a concave spherical mirror is shown as a vertical curved arc with its reflective concave surface facing left. Along the axis to the left of the mirror, two tick marks are labeled F and C, where F is located a distance f from the mirror vertex and C is located a distance 2f from the vertex. To the left of C, a vertical upward-pointing arrow represents the illuminated object. A horizontal double-headed dimension arrow below the axis extends from the object arrow to the mirror vertex, labeled d_o. A vertical rectangular viewing screen stands between F and C, with a horizontal double-headed dimension arrow extending from the screen to the mirror vertex, labeled d_i. No other labels, lines, text, or axes appear.

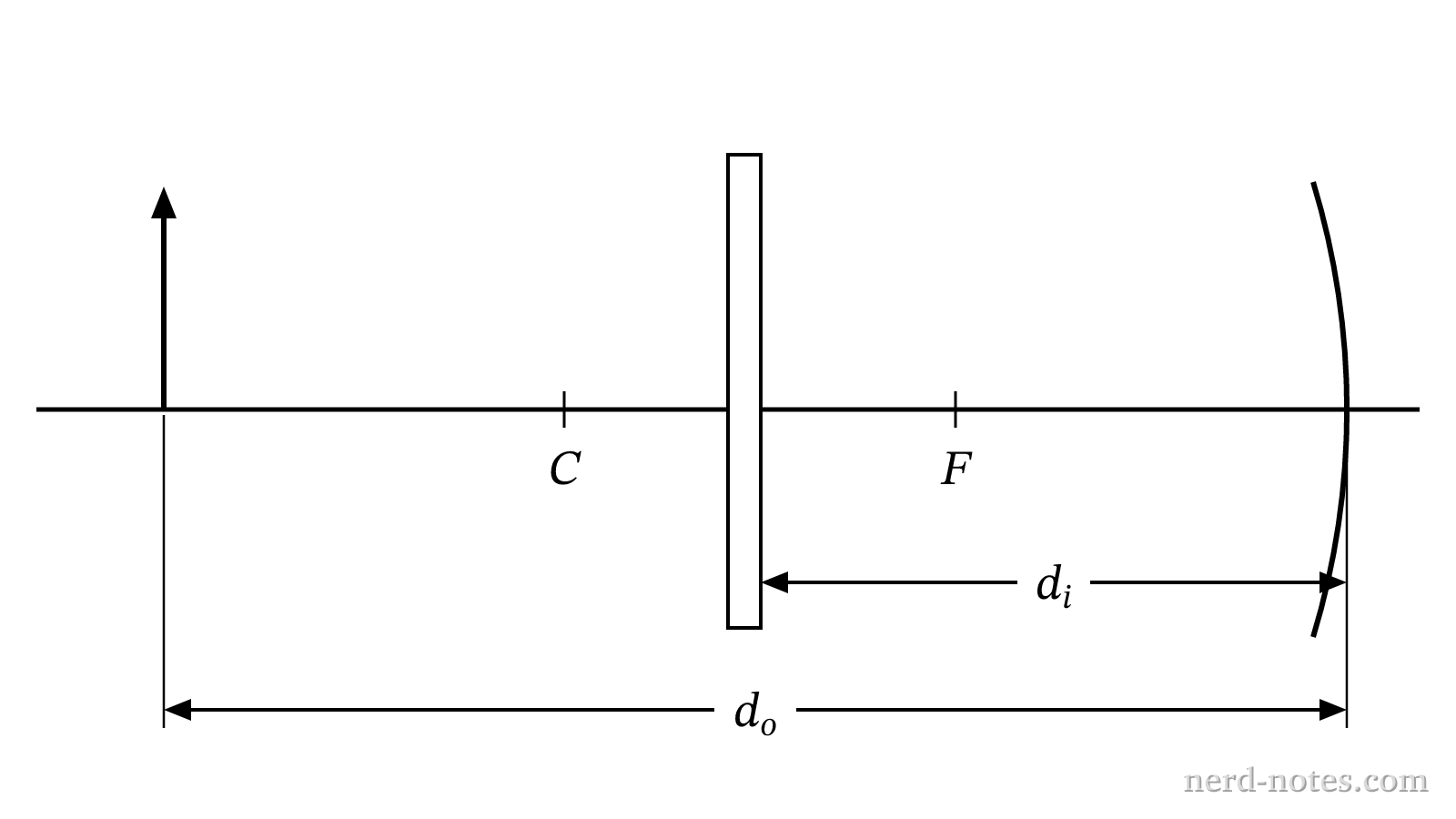

Experimental setup showing the concave mirror, object, and viewing screen on an optical bench.
A student conducts an experiment to determine the radius of curvature \(R\) of a concave spherical mirror using an optical bench. The student places an illuminated object at several positions such that \(d_o > f\) and records the corresponding distances \(d_i\) to a viewing screen where sharp real images are formed. The student linearizes the data by plotting \(\dfrac{1}{d_i}\) on the vertical axis as a function of \(\dfrac{1}{d_o}\) on the horizontal axis. Which of the following correctly identifies the theoretical slope of the best-fit line and the relationship used to determine the radius of curvature \(R\) from the vertical intercept \(b\)?
