AP Physics 2
13.4 Images Formed by Lenses
IntermediateMCQMathematicalConceptual15.7k

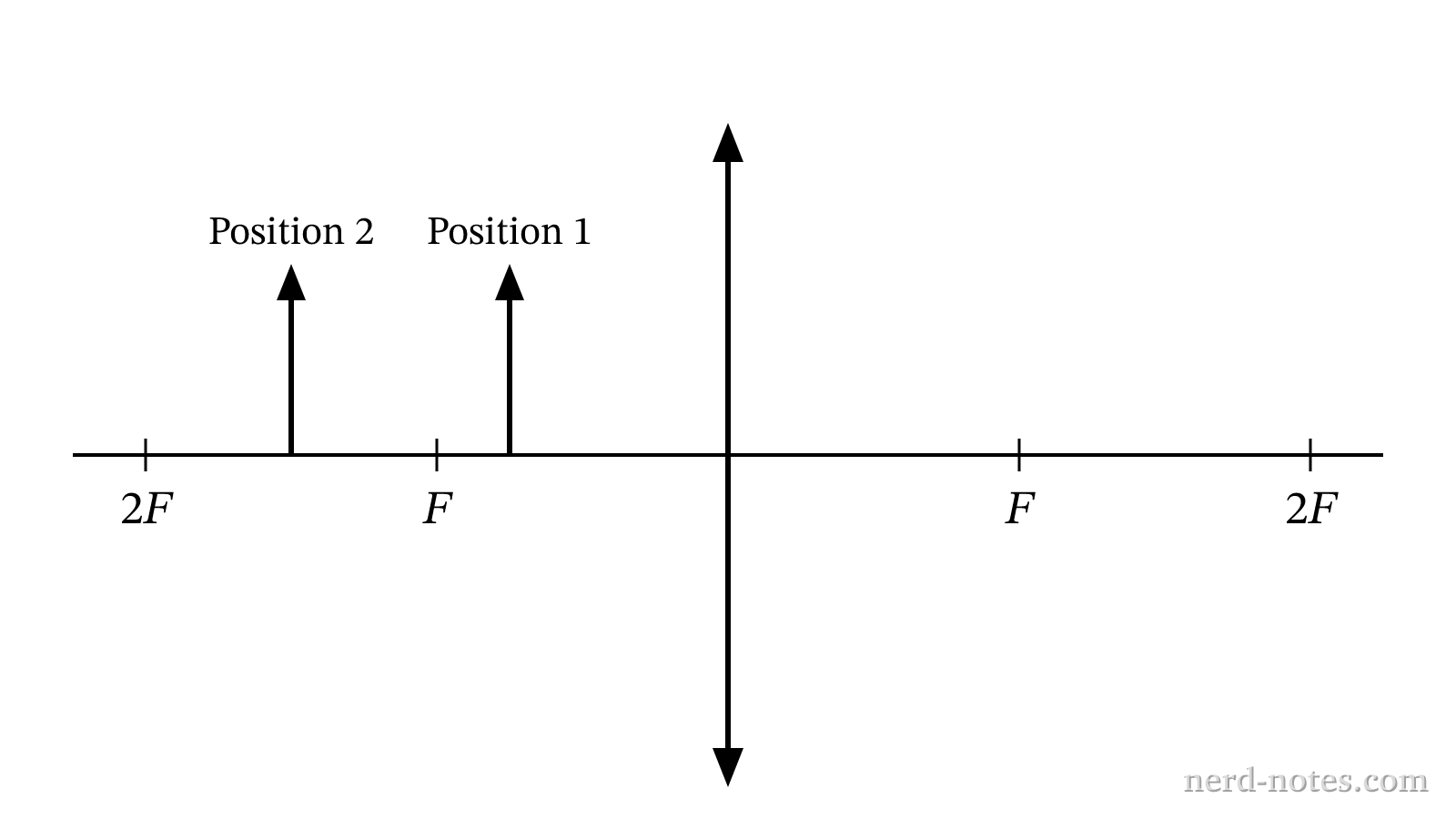

An object placed at two locations along the principal axis of a converging lens.
An object placed at two locations along the principal axis of a converging lens.
An illuminated object is placed along the principal axis of a thin converging lens of focal length \(f\). In Trial 1, the object is positioned at a distance of \(0.75f\) from the lens. In Trial 2, the object is positioned at a distance of \(1.5f\) from the lens. Which row in the table correctly classifies the type and size of the image formed relative to the object in each trial?

RowImage in Trial 1 (\(d_o = 0.75f\))Image in Trial 2 (\(d_o = 1.5f\))
AVirtual and larger than the objectReal and larger than the object
BVirtual and larger than the objectReal and smaller than the object
CReal and larger than the objectReal and larger than the object
DVirtual and smaller than the objectReal and larger than the object
