13.3 Refraction
AdvancedMCQMathematicalProportional Analysis15.3k

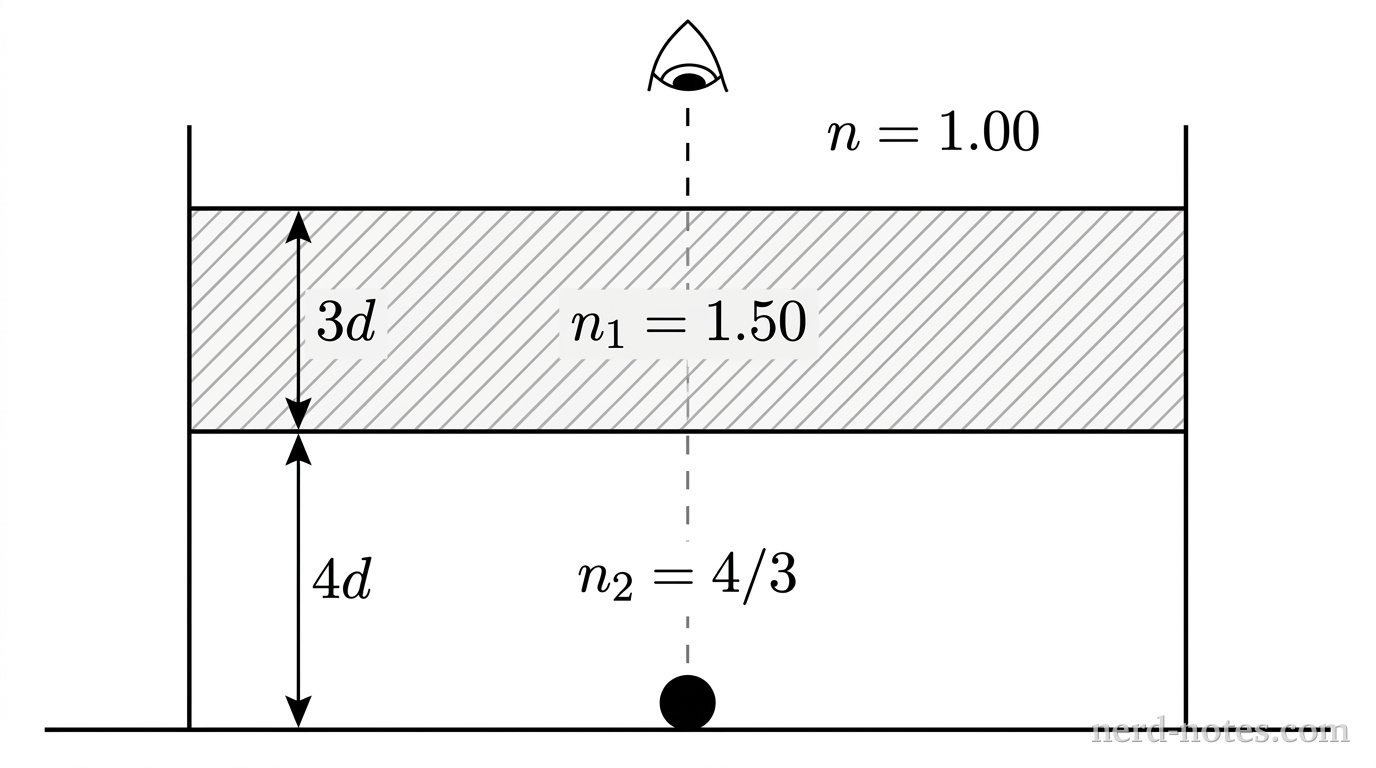

A cross-sectional schematic diagram of an open rectangular tank viewed from the side. The tank rests on a flat horizontal surface. Inside the tank are two distinct horizontal fluid layers separated by a horizontal interface line. The top layer has a vertical double-headed dimension arrow labeled 3d on the left and is labeled n_1 = 1.50 in its center with light-gray diagonal hatching. The bottom layer has a vertical double-headed dimension arrow labeled 4d on the left and is labeled n_2 = 4/3 in its center with unshaded fill. A small solid black circle representing a coin rests centered on the bottom floor of the tank. Above the top surface of the liquid, in the air region labeled n = 1.00, an eye icon looks vertically downward toward the coin along a vertical dashed line. No other labels, lines, text, or axes appear.
Side view of the two-layer liquid tank and observer.
A transparent rectangular tank contains two immiscible liquids at rest. The upper liquid layer has thickness 3d and index of refraction n_1 = 1.50, while the lower liquid layer has thickness 4d and index of refraction n_2 = 4/3. A small coin rests at the bottom of the tank directly beneath both liquid layers. An observer in air (n_air = 1.00) looks down at the coin from directly above along a line of sight nearly perpendicular to the upper liquid surface. What is the ratio of the coin's total apparent depth to its actual depth, d_apparent / d_actual?
