AP Physics C: Mechanics
2.5 Newton’s Second Law
2.3 Newton’s Third Law
AdvancedMCQMathematicalProportional Analysis24.5k

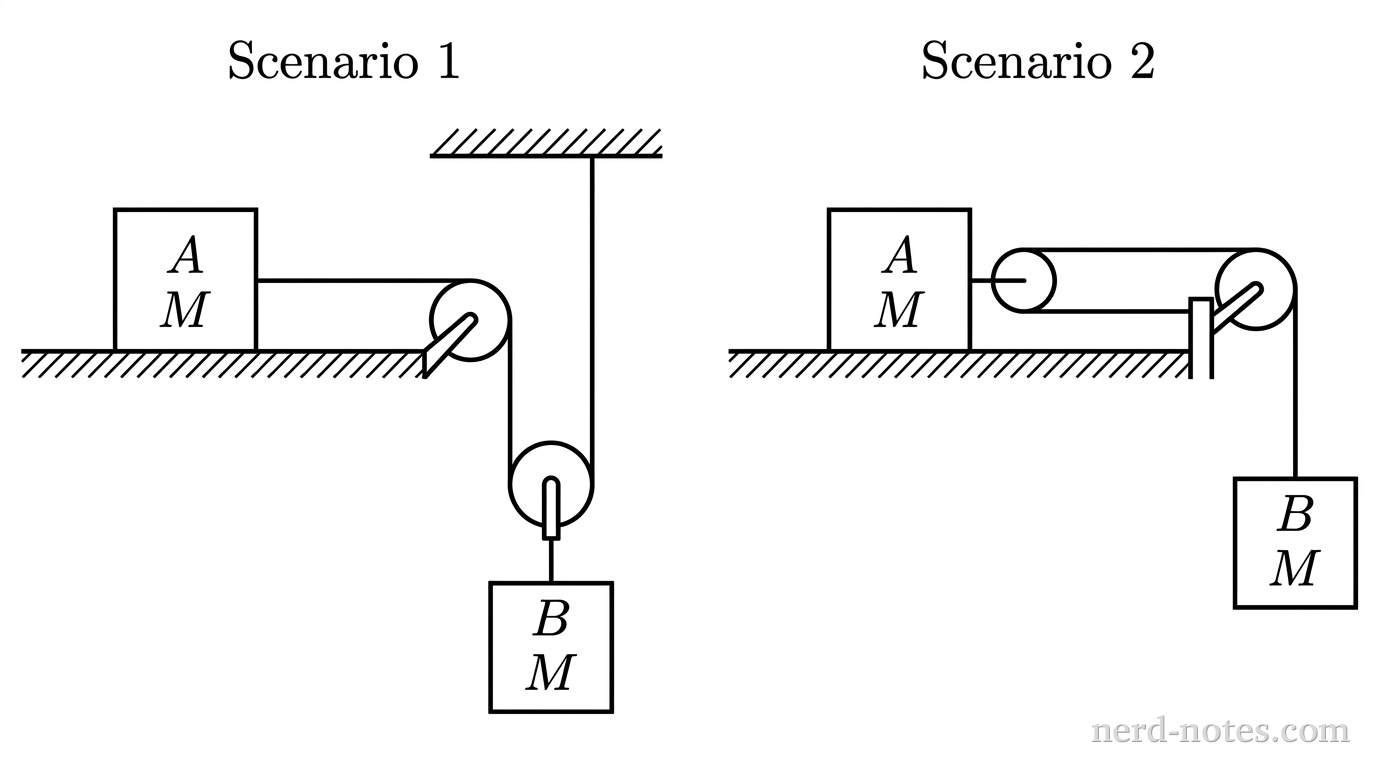

Two schematic diagrams side by side labeled Scenario 1 on the left and Scenario 2 on the right. In Scenario 1, a horizontal surface supports a square labeled A of mass M. A horizontal line extends rightward from block A to the top of a circular fixed pulley at the edge of the surface. A line goes vertically down from the fixed pulley, wraps around the bottom of a circular movable pulley supporting a suspended square labeled B of mass M, and extends vertically upward to a horizontal hatched ceiling. In Scenario 2, the horizontal surface supports a square labeled A of mass M with a small circular movable pulley attached to its right side. Two parallel horizontal lines extend rightward from block A: the lower line attaches to a vertical post at the table edge, and the upper line wraps around the pulley on block A and passes over the fixed pulley at the edge, extending vertically downward to a suspended square labeled B of mass M. No other labels, lines, text, or axes appear.
Two pulley configurations connecting block A on a horizontal surface to hanging block B.
A block A of mass M on a frictionless horizontal table is connected to a hanging block B of mass M by an ideal, massless cord and ideal pulleys. In Scenario 1, the cord has one end fixed to the ceiling, loops under a light movable pulley from which block B is suspended, passes over a fixed pulley at the edge of the table, and connects directly to block A. In Scenario 2, block B hangs directly from the end of the cord, which passes over the fixed pulley, loops around a light movable pulley attached to block A, and terminates at a fixed anchor near the edge of the table. After both systems are released from rest, what is the ratio of the downward acceleration of block B in Scenario 2 to that in Scenario 1, \(\dfrac{a_{B,2}}{a_{B,1}}\)?
