AdvancedMCQConceptual17.7k

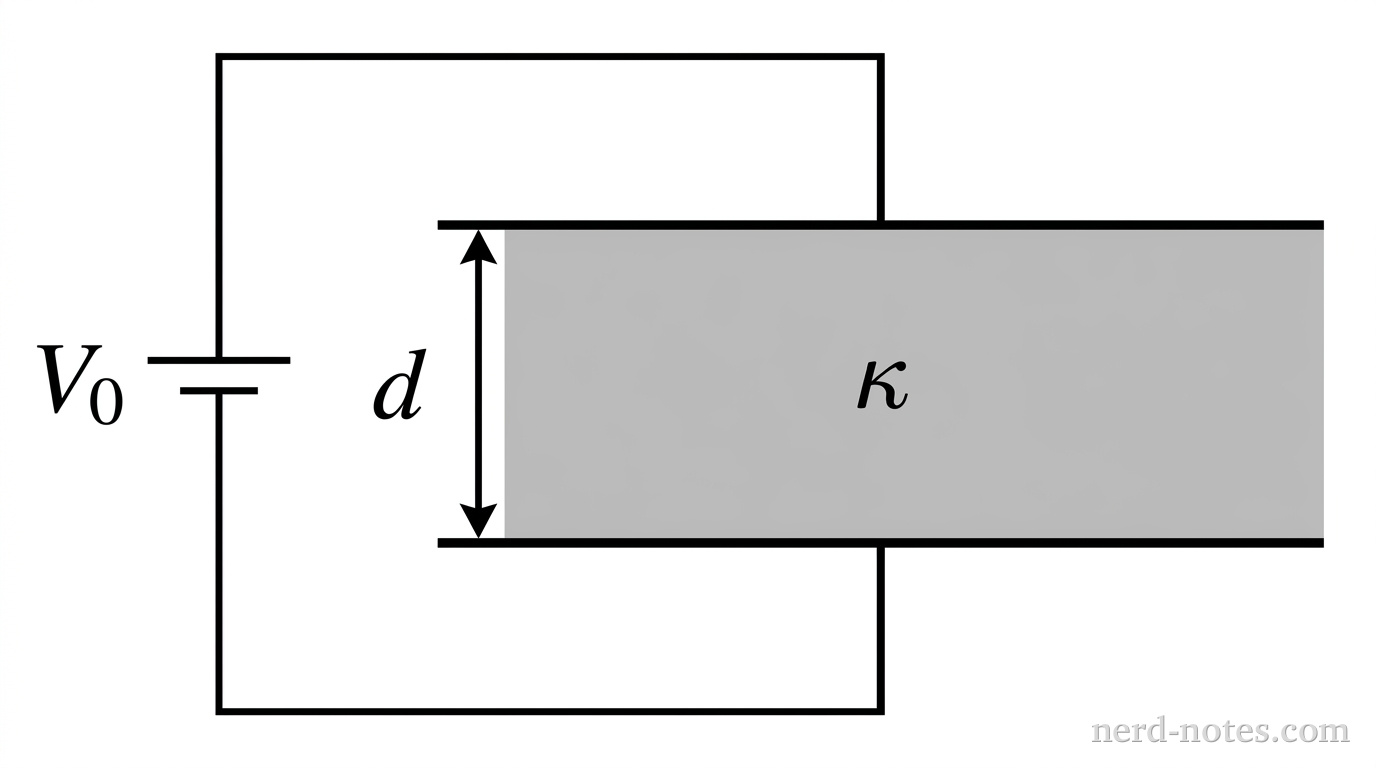

A schematic diagram showing a parallel-plate capacitor connected to a DC voltage source. Two horizontal parallel lines of equal length represent the conducting plates separated by a vertical distance \(d\). A shaded rectangular block fills the entire region between the top and bottom plates, labeled with the symbol \(\kappa\). Conducting wire lines extend from the top and bottom plates to the terminals of a battery symbol on the left, labeled with the potential difference \(V_0\). A vertical double-headed arrow spanning between the inner faces of the plates is labeled \(d\). No other labels, lines, text, or axes appear.
A parallel-plate capacitor filled with a dielectric slab and connected to a battery of potential difference \(V_0\).
An ideal parallel-plate capacitor with plate separation \(d\) is connected to a battery that maintains a constant potential difference \(V_0\). A slab of linear dielectric material with dielectric constant \(\kappa > 1\) is slowly inserted between the plates until it completely fills the space. Two students disagree on the outcome: one asserts that dielectric polarization must reduce the net electric field between the plates, while the other asserts that the net electric field cannot change because the potential difference and plate separation remain fixed. Which of the following explanations correctly resolves this apparent contradiction?
