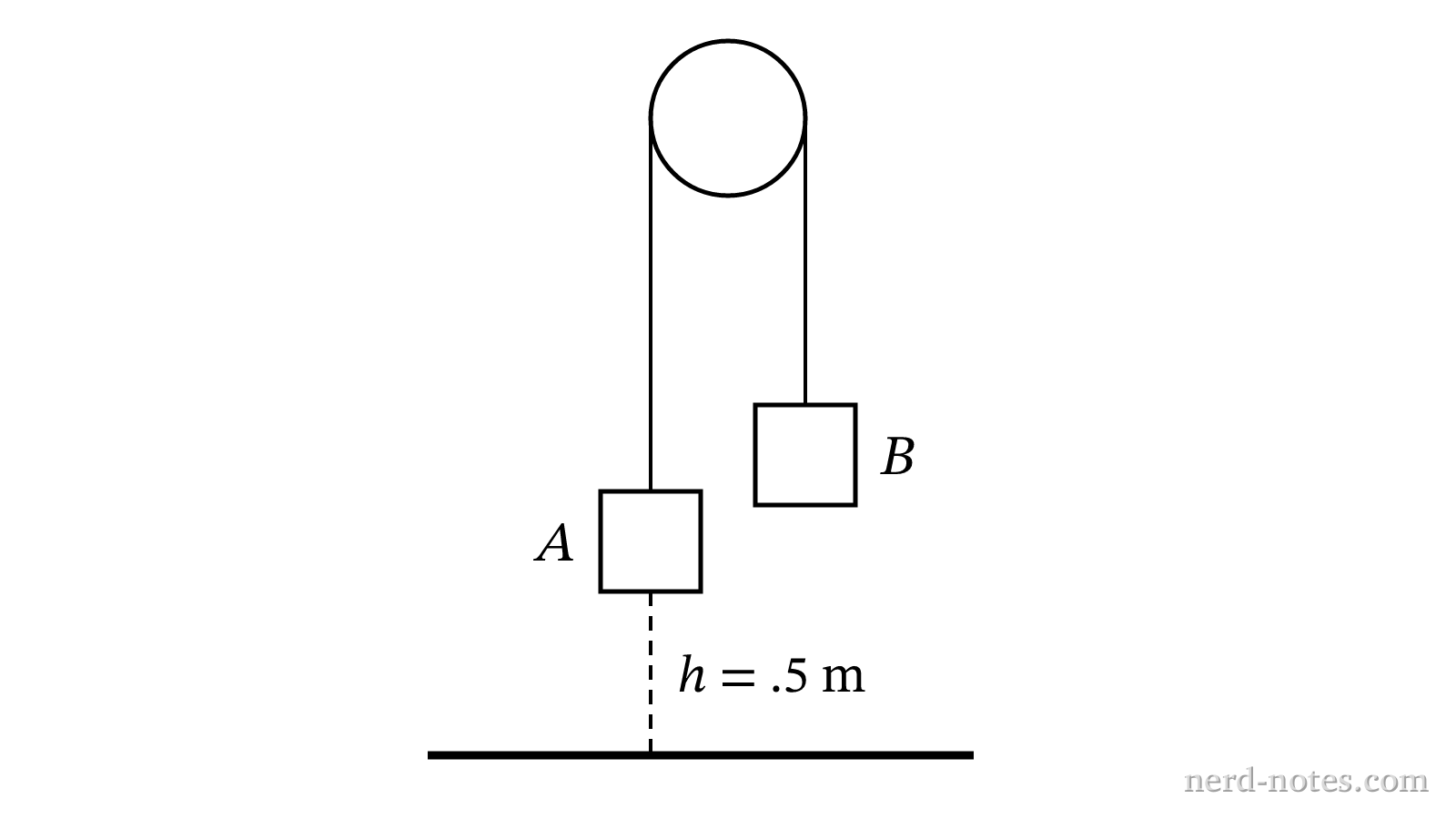

Part a: Calculate the acceleration of the system
| Step | Formula Derivation | Reasoning |
|---|---|---|
| 1 | [katex] F_{\text{net,A}} = m_A \cdot a [/katex] | Net force on mass A equals mass times acceleration. |
| 2 | [katex] F_{\text{net,B}} = m_B \cdot a [/katex] | Net force on mass B equals mass times acceleration. |
| 3 | [katex] F_{\text{net,A}} = T – m_A \cdot g [/katex] | Tension upwards minus weight of A downwards. |
| 4 | [katex] F_{\text{net,B}} = m_B \cdot g – T [/katex] | Weight of B downwards minus tension upwards. |
| 5 | [katex] m_A \cdot a = T – m_A \cdot g [/katex] | Substitute step 1 into step 3. |
| 6 | [katex] m_B \cdot a = m_B \cdot g – T [/katex] | Substitute step 2 into step 4. |
| 7 | [katex] m_A \cdot a + m_B \cdot a = m_B \cdot g – m_A \cdot g [/katex] | Add step 5 and step 6 equations. |
| 8 | [katex] a = \frac{(m_B – m_A) \cdot g}{m_A + m_B} [/katex] | Solve for acceleration . |
Use the given number from the problem.
| Step | Formula Derivation | Reasoning |
|---|---|---|
| 9 | [katex] a = \frac{(2.4 – 3.2) \cdot 9.8}{3.2 + 2.4} [/katex] | Plug in known values. |
| 10 | [katex] a = \frac{-0.8 \cdot 9.8}{5.6} [/katex] | Simplify the numerator and denominator. |
| 11 | [katex] a = -1.4 , \text{m/s}^2 [/katex] | Calculate the acceleration. |
[katex] \boxed{a = -1.4 , \text{m/s}^2} [/katex] Negative sign indicates downward direction.
Part b: Calculate the tension in the string
| Step | Formula Derivation | Reasoning |
|---|---|---|
| 1 | [katex] T = m_A \cdot (g + a) [/katex] | Tension equals mass A times (gravity plus acceleration). |
Using the previously calculated acceleration:
| Step | Formula Derivation | Reasoning |
|---|---|---|
| 2 | [katex] T = 3.2 \cdot (9.8 – 1.4) [/katex] | Plug in known values for mass and acceleration |
| 3 | [katex] T = 3.2 \cdot 8.4 [/katex] | Simplify the terms in the parentheses. |
| 4 | [katex] T = 26.88 , \text{N} [/katex] | Calculate the tension. |
[katex] \boxed{T = 26.88 , \text{N}} [/katex]
Part c: Calculate the final speed of mass A before it hits the ground
| Step | Formula Derivation | Reasoning |
|---|---|---|
| 1 | [katex] v = \sqrt{2 \cdot} [/katex] | a |
| 2 | [katex] v = \sqrt{2 \cdot 1.4 \cdot 0.5} [/katex] | Plug in the magnitude of and . |
| 3 | [katex] v = \sqrt{1.4} [/katex] | Calculate the expression under the square root. |
| 4 | [katex] v = 1.18 , \text{m/s} [/katex] | Find the square root to get the final velocity. |
[katex] \boxed{v = 1.18 , \text{m/s}} [/katex]
