| Step | Reasoning |
|---|---|
| Identify the relationship between impulse and the change in the momentum vector. \[ \vec{J} = \Delta \vec{p} = M(\vec{v}_f – \vec{v}_i) \] |
The question asks for the impulse vector, which is defined by the impulse-momentum theorem as the change in the linear momentum of the object. |

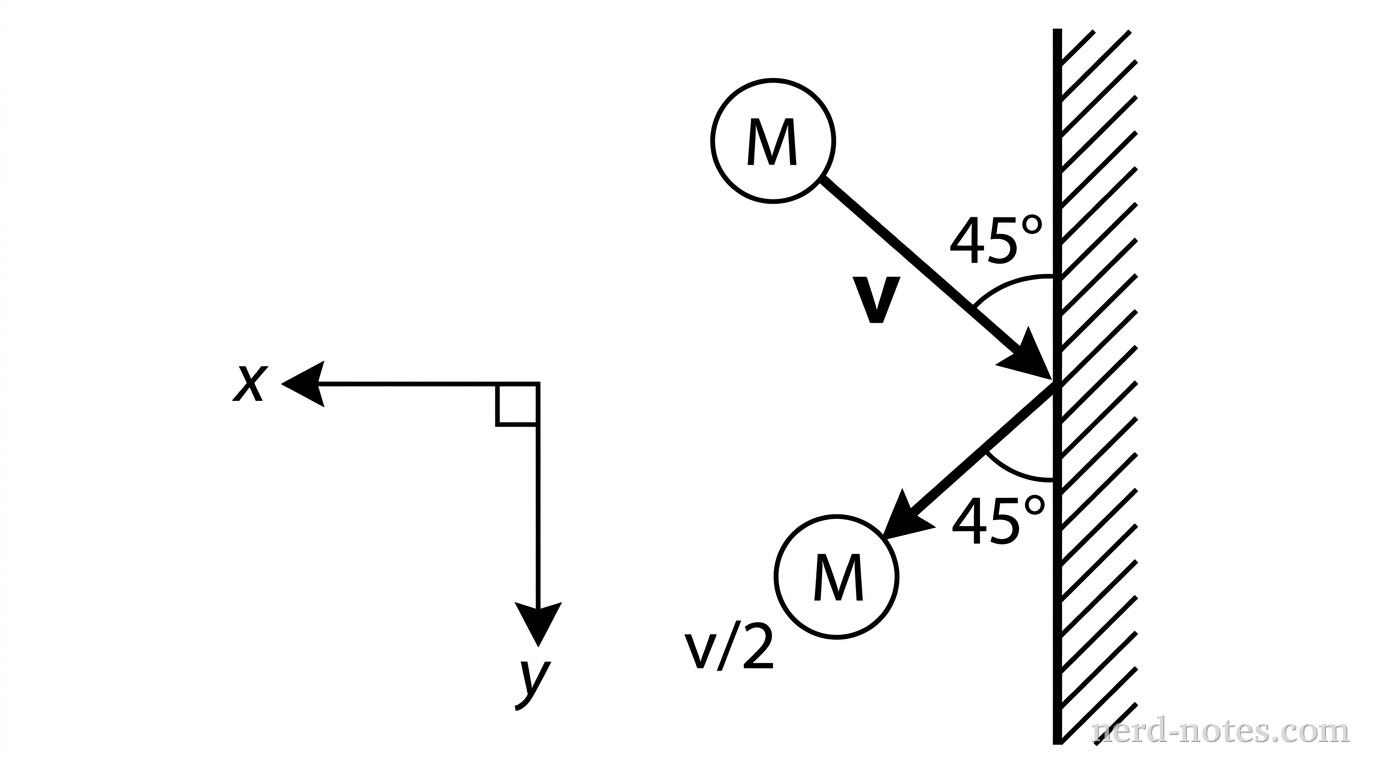

| Decompose the initial velocity into x and y components using the given geometry. \[ \vec{v}_i = \langle -v \sin 45^\circ, v \cos 45^\circ \rangle = \langle -\dfrac{v\sqrt{2}}{2}, \dfrac{v\sqrt{2}}{2} \rangle \] |
To perform vector subtraction, we must resolve the velocities into the specified coordinate system. With the angle \(45^\circ\) relative to the wall surface, the x-component (normal) uses sine and the y-component (parallel) uses cosine. Since positive x is away from the wall and positive y is the direction of initial travel, the ball moves in the negative x-direction initially. |
| Decompose the final velocity into x and y components. \[ \vec{v}_f = \langle \dfrac{v}{2} \sin 45^\circ, \dfrac{v}{2} \cos 45^\circ \rangle = \langle \dfrac{v\sqrt{2}}{4}, \dfrac{v\sqrt{2}}{4} \rangle \] |
The final velocity has a magnitude of \(\dfrac{v}{2}\) and moves away from the wall (positive x) while continuing in the same parallel direction (positive y). |
| Calculate the components of the impulse vector by subtracting initial momentum from final momentum. \[ \begin{align*} J_x &= M \left( \dfrac{v\sqrt{2}}{4} – \left( -\dfrac{v\sqrt{2}}{2} \right) \right) = M \left( \dfrac{v\sqrt{2}}{4} + \dfrac{2v\sqrt{2}}{4} \right) = \dfrac{3Mv\sqrt{2}}{4} \\ J_y &= M \left( \dfrac{v\sqrt{2}}{4} – \dfrac{v\sqrt{2}}{2} \right) = -\dfrac{Mv\sqrt{2}}{4} \end{align*} \] |
Subtracting the components yields the change in momentum in each direction. |
| Combine the components into the final vector expression. \[ \vec{J} = \dfrac{3Mv\sqrt{2}}{4} \hat{i} – \dfrac{Mv\sqrt{2}}{4} \hat{j} = \dfrac{Mv\sqrt{2}}{4} (3\hat{i} – \hat{j}) \] |
The vector is the sum of its scaled unit vectors. |
Why each choice is correct or incorrect:
(A) This is the correct answer.
(B) Incorrectly adds the y-components of velocity instead of finding the difference, resulting in a positive j-term.
(C) Incorrectly calculates the change in the x-component as \( v_{fx} – v_{ix} \) without accounting for the fact that the initial x-velocity was in the negative direction.
(D) Only accounts for the impulse in the x-direction, ignoring the fact that the loss of speed also changed the momentum component parallel to the wall.
