| Step | Reasoning |
|---|---|

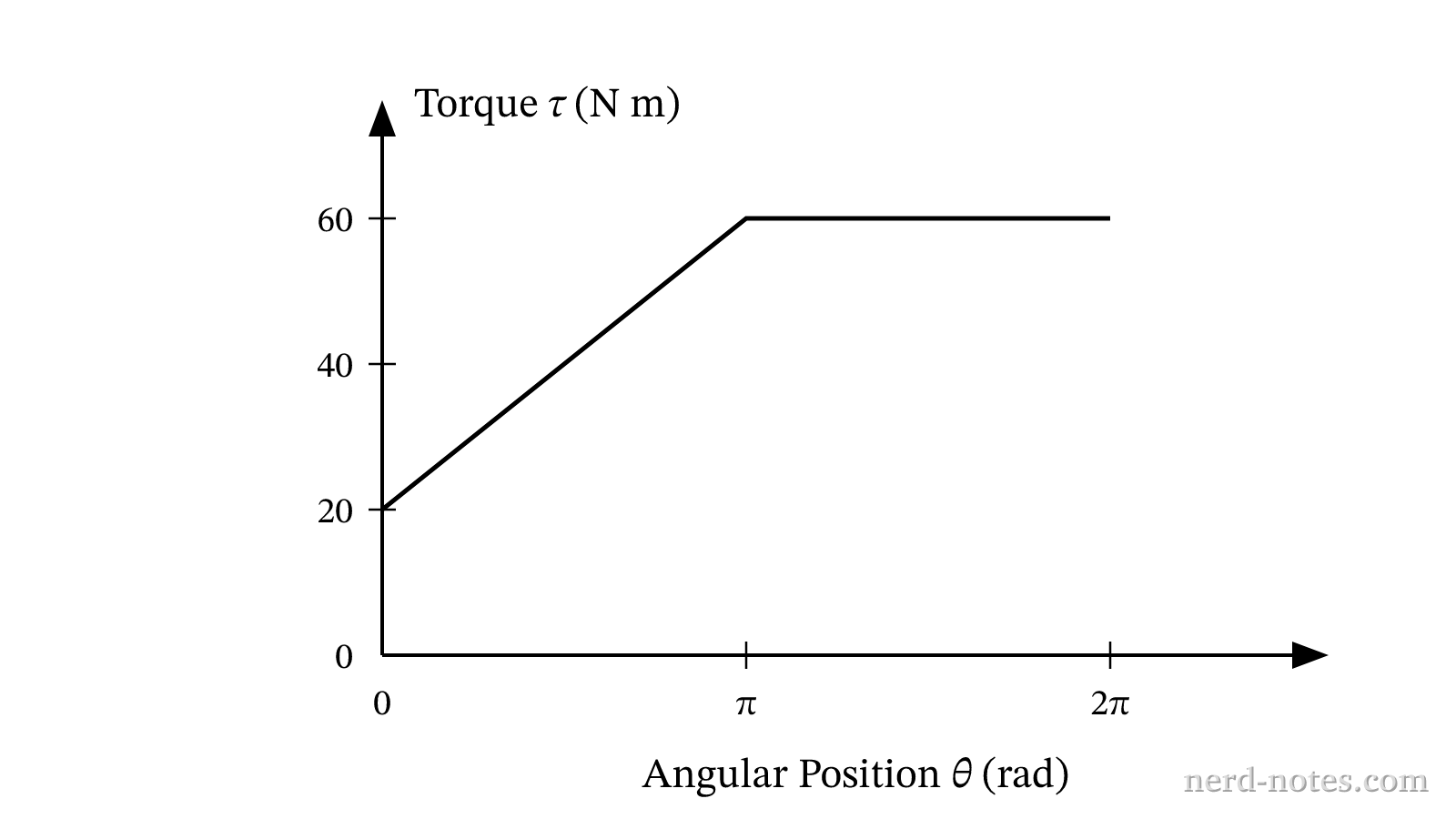

| Identify the relationship between torque-angle graphs and work. \[ W = \int \tau d\theta \] |
The question asks for total rotational work, and the given representation is a graph of torque vs. angular position. |
| Divide the area under the graph into two distinct geometric regions based on the segments shown. \[ W_{total} = A_1 + A_2 \] |
The graph changes behavior at \(\pi \text{ rad}\), so the total area is the sum of the area from \(0\) to \(\pi\) and the area from \(\pi\) to \(2\pi\). |
| Calculate the area of the first segment from \(\theta = 0\) to \(\theta = \pi\). \[ A_1 = \frac{1}{2}(\tau_{initial} + \tau_{mid}) \Delta\theta_1 = \frac{1}{2}(20 \text{ N}\cdot\text{m} + 60 \text{ N}\cdot\text{m})(\pi \text{ rad}) = 40\pi \text{ J} \] |
This segment is a trapezoid with parallel vertical sides of 20 and 60 and a width of \(\pi\). |
| Calculate the area of the second segment from \(\theta = \pi\) to \(\theta = 2\pi\). \[ A_2 = \tau_{max} \Delta\theta_2 = (60 \text{ N}\cdot\text{m})(2\pi \text{ rad} – \pi \text{ rad}) = 60\pi \text{ J} \] |
This segment is a rectangle with a height of 60 and a width of \(\pi\). |
| Sum the areas to find the total work. \[ W_{total} = 40\pi \text{ J} + 60\pi \text{ J} = 100\pi \text{ J} \] |
Total work is the cumulative area under the entire function over the specified interval. |
Why each choice is correct or incorrect:
(A) This result assumes the torque increases linearly over the entire \(2\pi\) interval, resulting in an average torque of \(40 \text{ N}\cdot\text{m}\) applied over \(2\pi\).
(B) This result neglects the initial \(20 \text{ N}\cdot\text{m}\) of torque at \(\theta = 0\), treating the first segment as a simple triangle with area \(\frac{1}{2}(60)(\pi)\).
(C) This is the correct answer; it correctly calculates the sum of the trapezoidal and rectangular areas under the graph.
(D) This result incorrectly applies the maximum torque of \(60 \text{ N}\cdot\text{m}\) to the entire angular displacement of \(2\pi\).
