| Step | Reasoning |
|---|---|
| Identify the relationship between translational acceleration \(a\) and the forces acting on the spheres. \[ F_{net} = Mg \sin\theta – f_s = Ma \] |
The question asks for a comparison of accelerations, which are determined by the net force in the translational direction. |
| Relate the static friction force \(f_s\) to the rotational inertia \(I\) of the spheres using the rolling without slipping condition. \[ \tau = f_s R = I\alpha \] |
The friction force provides the torque necessary for rotation, and its magnitude depends on the rotational inertia and the angular acceleration. |
| Substitute the rolling condition \(\alpha = \dfrac{a}{R}\) into the torque equation and solve for friction. \[ f_s = I \dfrac{a}{R^2} \] |
This allows the friction force to be expressed in terms of the translational acceleration and the geometry of the object. |
| Combine the translational and rotational equations to solve for acceleration. \[ Mg \sin\theta – I \dfrac{a}{R^2} = Ma \implies a = \dfrac{g \sin\theta}{1 + \dfrac{I}{MR^2}} \] |
Substituting friction back into the translational equation reveals how acceleration depends on the object’s rotational inertia. |

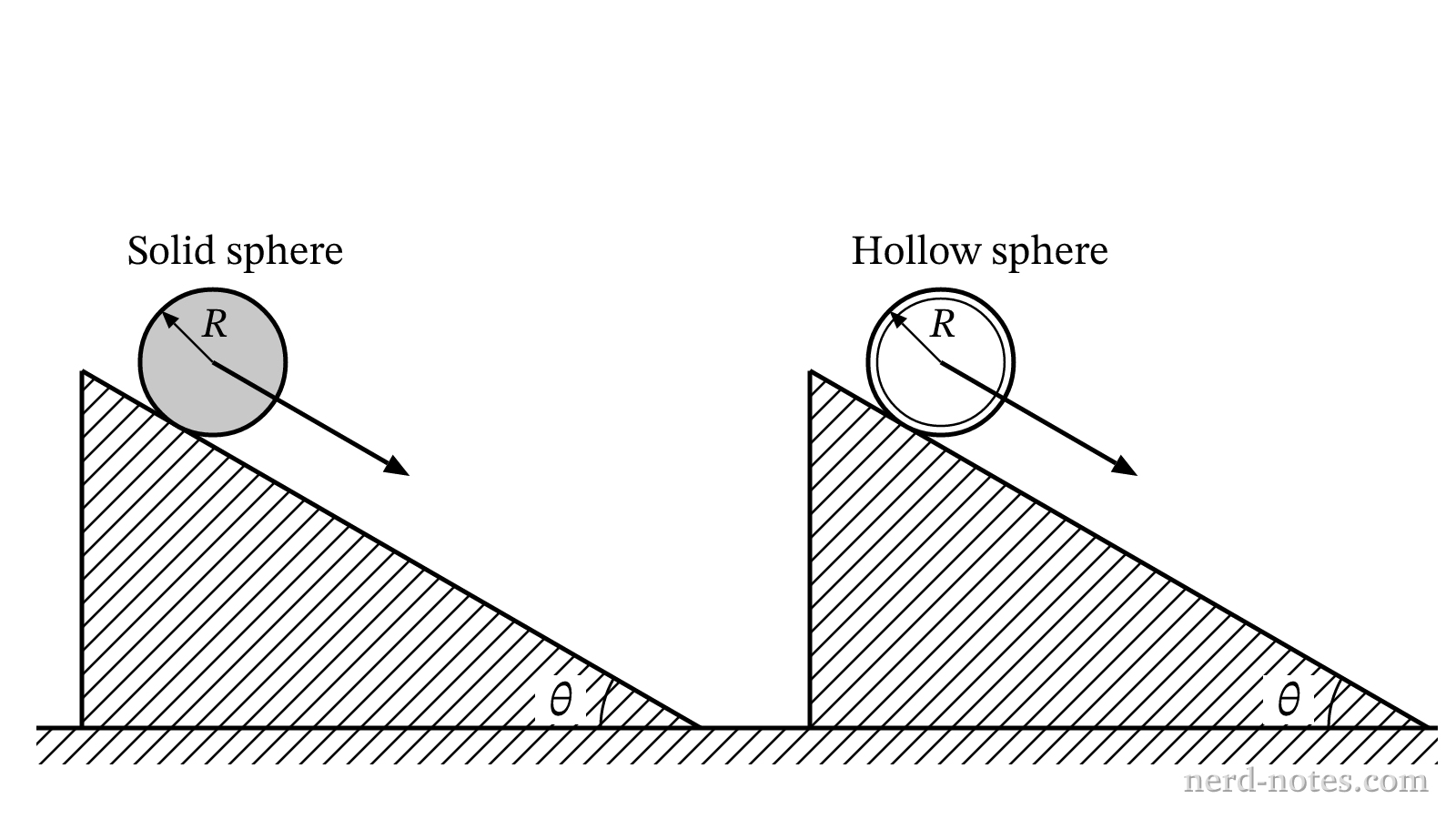

| Compare the rotational inertia of a solid sphere and a hollow sphere. \[ I_{solid} = \dfrac{2}{5}MR^2, \quad I_{hollow} = \dfrac{2}{3}MR^2 \] |
The denominator of the acceleration expression shows that as \(I\) increases, \(a\) decreases. |
| Conclude which sphere has the greater acceleration based on the inertia values. \[ a_{solid} = \dfrac{5}{7}g \sin\theta \approx 0.71g \sin\theta \quad > \quad a_{hollow} = \dfrac{3}{5}g \sin\theta = 0.60g \sin\theta \] |
Since \(I_{solid} < I_{hollow}\), the solid sphere will have a higher acceleration because a smaller portion of the gravitational force is diverted into providing torque. |
Why each choice is correct or incorrect:
(A) This is the correct answer.
(B) Gravity acts at the center of mass, so it exerts no torque about the center of mass; also, the hollow sphere has less acceleration, not more.
(C) While the solid sphere does have a greater acceleration, it requires less frictional force to roll, not more, because \(f_s = I a / R^2\) and its smaller \(I\) outweighs its larger \(a\) in this proportional relationship.
(D) This is a common misconception that neglects the fact that a portion of the potential energy must be converted to rotational kinetic energy (or that friction reduces the net translational force).
