| Step | Reasoning |
|---|---|
| Identify the target quantity and the primary relationship for fluid pressure and velocity. \[P_1 + \dfrac{1}{2}\rho v_1^2 = P_2 + \dfrac{1}{2}\rho v_2^2\] |

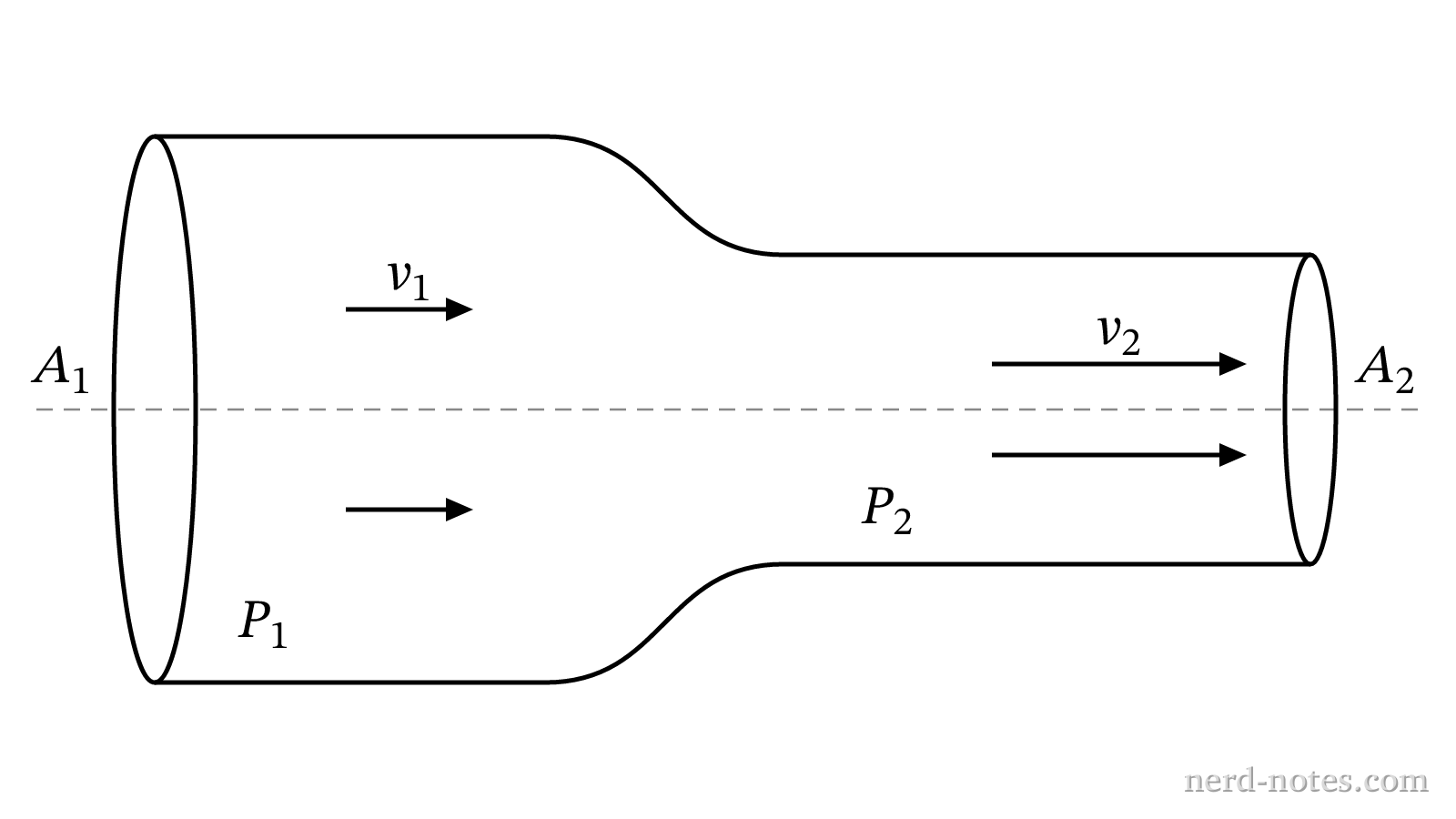

The question asks for the pressure \(P_2\) at a different location in the pipe, which requires Bernoulli’s principle for a horizontal pipe. |
| Isolate the unknown pressure \(P_2\) in terms of the initial conditions and the unknown speed \(v_2\). \[P_2 = P_1 + \dfrac{1}{2}\rho(v_1^2 – v_2^2)\] |
Since the pipe is horizontal, the potential energy terms cancel, allowing for a direct relationship between pressure and kinetic energy density. |
| Determine the speed at the constriction \(v_2\) in terms of the known variables. \[A_1 v_1 = A_2 v_2 \implies v_2 = \dfrac{A_1}{A_2} v_1\] |
The expression for \(P_2\) must be in terms of the given areas and the initial speed, so the continuity equation is needed to replace \(v_2\). |
| Substitute the expression for \(v_2\) back into the isolated Bernoulli equation and simplify. \[\begin{align*} P_2 &= P_1 + \dfrac{1}{2}\rho \left[ v_1^2 – \left( \dfrac{A_1}{A_2} v_1 \right)^2 \right] \\ P_2 &= P_1 + \dfrac{1}{2}\rho \left[ v_1^2 – \left( \dfrac{A_1}{A_2} \right)^2 v_1^2 \right] \\ P_2 &= P_1 + \dfrac{1}{2}\rho v_1^2 \left[ 1 – \left( \dfrac{A_1}{A_2} \right)^2 \right] \end{align*}\] |
Substituting \(v_2\) allows the final expression to be written entirely in terms of the variables specified in the prompt. |
Why each choice is correct or incorrect:
(A) This is the correct answer.
(B) This expression incorrectly predicts that pressure increases in the constriction because \(A_1 > A_2\) makes the bracketed term positive.
(C) This expression uses the ratio \(A_2/A_1\); because \(A_2 < A_1\), the term in brackets is positive, suggesting pressure increases when speed increases, violating Bernoulli's principle.
(D) This expression fails to square the velocities (and thus the area ratios) as required by Bernoulli’s equation and omits the factor of \(1/2\) from the kinetic energy density.
