| Step | Derivation/Formula | Reasoning |
|---|---|---|

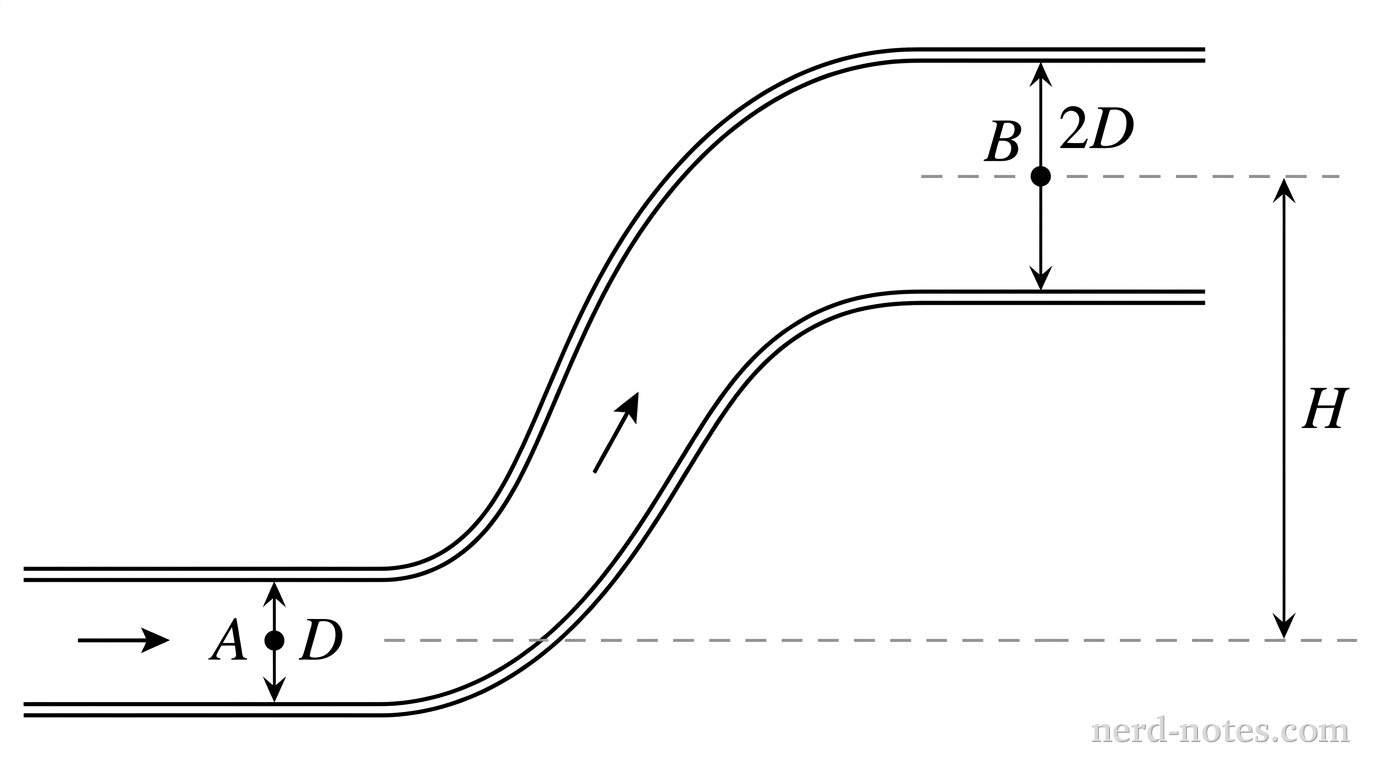

| 1 | \[A_A = \pi\left(\frac{D}{2}\right)^2\] | At Point A, the pipe diameter is \(D\), so the cross-sectional area is found using the area formula for a circle. |
| 2 | \[A_B = \pi\left(\frac{2D}{2}\right)^2 = \pi D^2\] | At Point B, the pipe diameter is \(2D\), so the radius is \(D\), making the area larger than at Point A. |
| 3 | \[A_A = \frac{\pi D^2}{4}\] | Simplifying the area at Point A shows that \(A_B\) is \(4\) times greater than \(A_A\). |
| 4 | \[A_A v_0 = A_B v_B\] | Use the continuity equation for incompressible fluid flow. Since water density is constant, the volume flow rate is the same at Points A and B. |
| 5 | \[\left(\frac{\pi D^2}{4}\right)v_0 = \left(\pi D^2\right)v_B\] | Substitute the cross-sectional areas into the continuity equation. |
| 6 | \[v_B = \frac{v_0}{4}\] | Solve algebraically for the velocity at Point B. Because the area at Point B is \(4\) times larger, the speed at Point B is \(\frac{1}{4}\) of the speed at Point A. |
| 7 | \[P_A + \frac{1}{2}\rho v_A^2 + \rho g y_A = P_B + \frac{1}{2}\rho v_B^2 + \rho g y_B\] | Apply Bernoulli’s equation between Points A and B. The pressure, kinetic energy density, and gravitational potential energy density terms are related along the flow. |
| 8 | \[P_0 + \frac{1}{2}\rho v_0^2 + \rho g y_A = P_B + \frac{1}{2}\rho\left(\frac{v_0}{4}\right)^2 + \rho g(y_A + H)\] | Substitute \(P_A = P_0\), \(v_A = v_0\), \(v_B = \frac{v_0}{4}\), and \(y_B = y_A + H\). |
| 9 | \[P_0 + \frac{1}{2}\rho v_0^2 = P_B + \frac{1}{32}\rho v_0^2 + \rho gH\] | Cancel \(\rho g y_A\) from both sides and simplify \(\frac{1}{2}\rho\left(\frac{v_0}{4}\right)^2 = \frac{1}{32}\rho v_0^2\). |
| 10 | \[P_B = P_0 – \rho gH + \frac{1}{2}\rho v_0^2 – \frac{1}{32}\rho v_0^2\] | Rearrange algebraically to solve for the pressure at Point B. |
| 11 | \[P_B = P_0 – \rho gH + \left(\frac{16}{32} – \frac{1}{32}\right)\rho v_0^2\] | Combine the kinetic energy density terms using a common denominator. |
| 12 | \[\boxed{P_B = P_0 – \rho gH + \frac{15}{32}\rho v_0^2}\] | This matches choice \(\text{(c)}\). Choice \(\text{(a)}\) ignores the speed decrease in the wider pipe. Choice \(\text{(b)}\) uses an incorrect velocity ratio or kinetic term. Choice \(\text{(d)}\) does not follow Bernoulli’s equation and ignores height and flow-speed effects. |
