AP Physics 2
9.4 The First Law of Thermodynamics
IntermediateMCQMathematicalConceptual24.3k

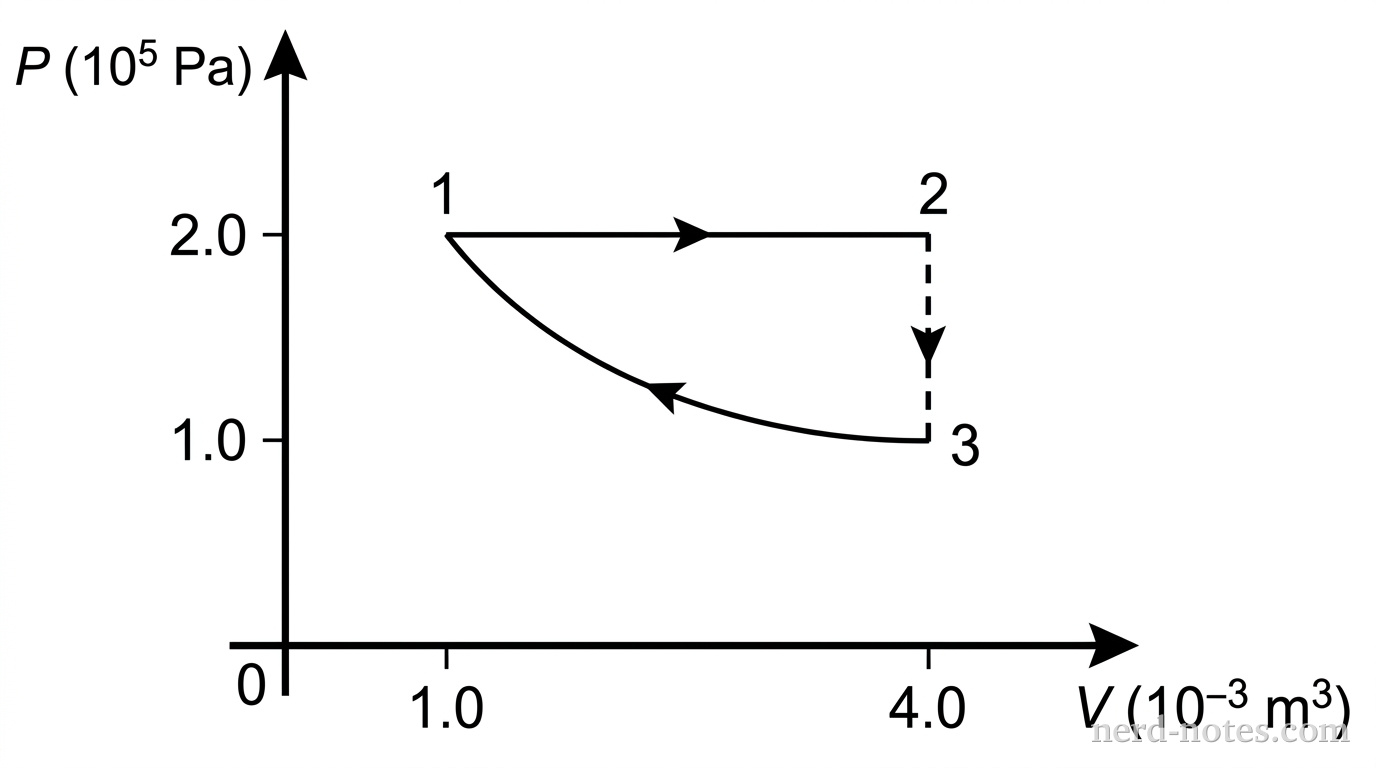

A pressure versus volume graph (PV diagram) displaying a closed three-step thermodynamic cycle labeled 1, 2, and 3. The vertical axis is labeled Pressure P in 10^5 Pa with tick marks at 1.0 and 2.0. The horizontal axis is labeled Volume V in 10^-3 m^3 with tick marks at 1.0 and 4.0. State 1 is located at (1.0, 2.0). A horizontal line with an arrow pointing right connects state 1 to state 2 at (4.0, 2.0), representing an isobaric expansion. A vertical dashed line with an arrow pointing down connects state 2 to state 3 at (4.0, 1.0), representing an isochoric pressure drop. A smooth curve convex downward with an arrow pointing up-left connects state 3 back to state 1, representing an adiabatic compression. No other labels, lines, text, or axes appear.

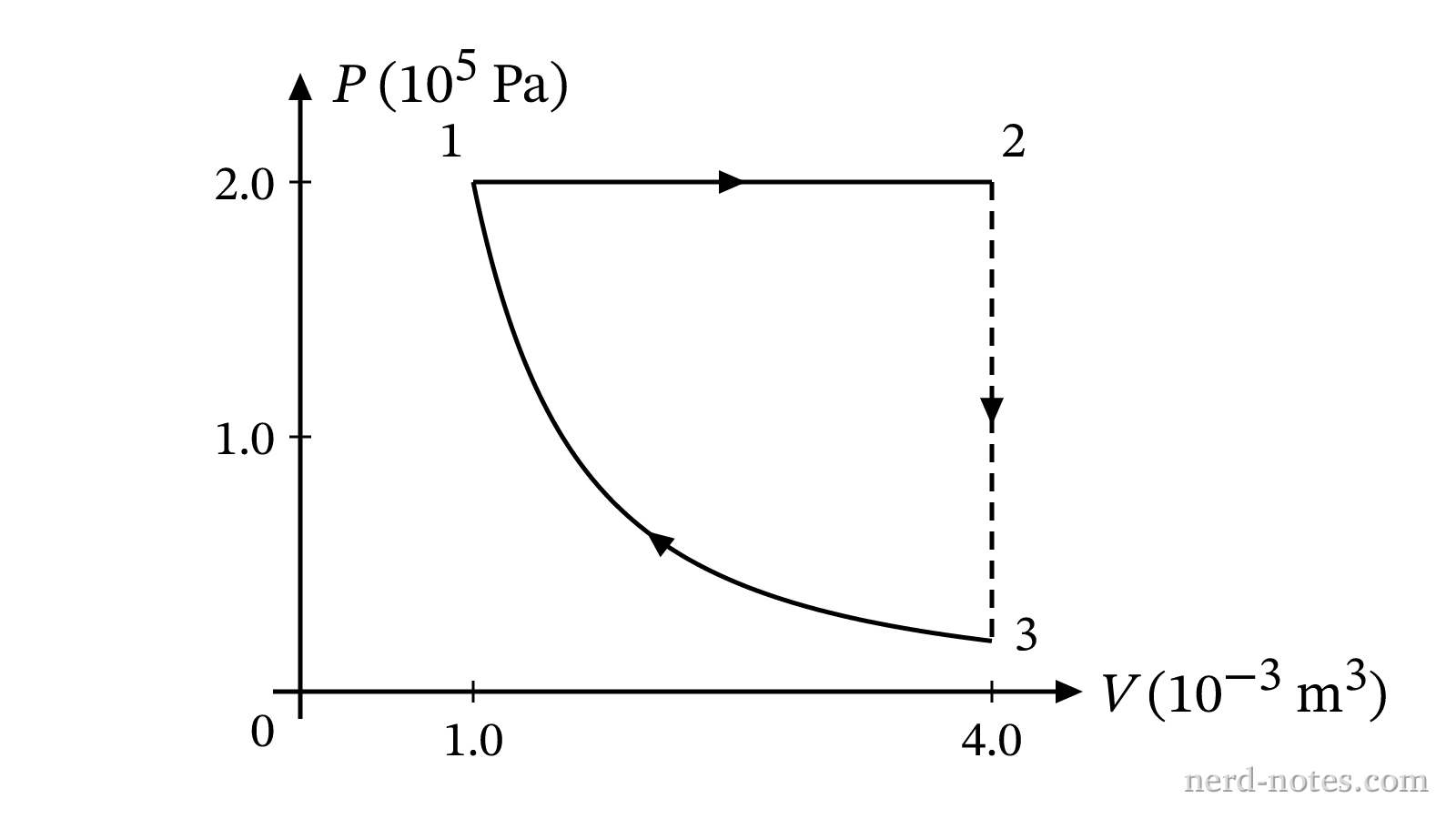

PV diagram for a three-step thermodynamic cycle of a monatomic ideal gas.
A sample of a monatomic ideal gas undergoes the three-step cyclic process \(1 \rightarrow 2 \rightarrow 3 \rightarrow 1\) shown in the \(PV\) diagram. Process \(1 \rightarrow 2\) is an isobaric expansion at a pressure of \(2.0 \times 10^5 \text{ Pa}\) from an initial volume of \(1.0 \times 10^{-3} \text{ m}^3\) to a final volume of \(4.0 \times 10^{-3} \text{ m}^3\). Process \(2 \rightarrow 3\) is an isochoric pressure decrease, and process \(3 \rightarrow 1\) is an adiabatic compression during which \(300 \text{ J}\) of work is done on the gas. What is the thermal efficiency of this cycle?
