14.7 Diffraction
AdvancedMCQGraphicalProportional AnalysisConceptual17.5k
A schematic showing a monochromatic laser beam propagating from the left toward a single slit of width a. Arrows pointing outward on the slit edges indicate the expanding width labeled v. To the right of the slit, a photodetector is positioned at a fixed angle theta_0 relative to the central horizontal axis. No other labels, lines, text, or axes appear.

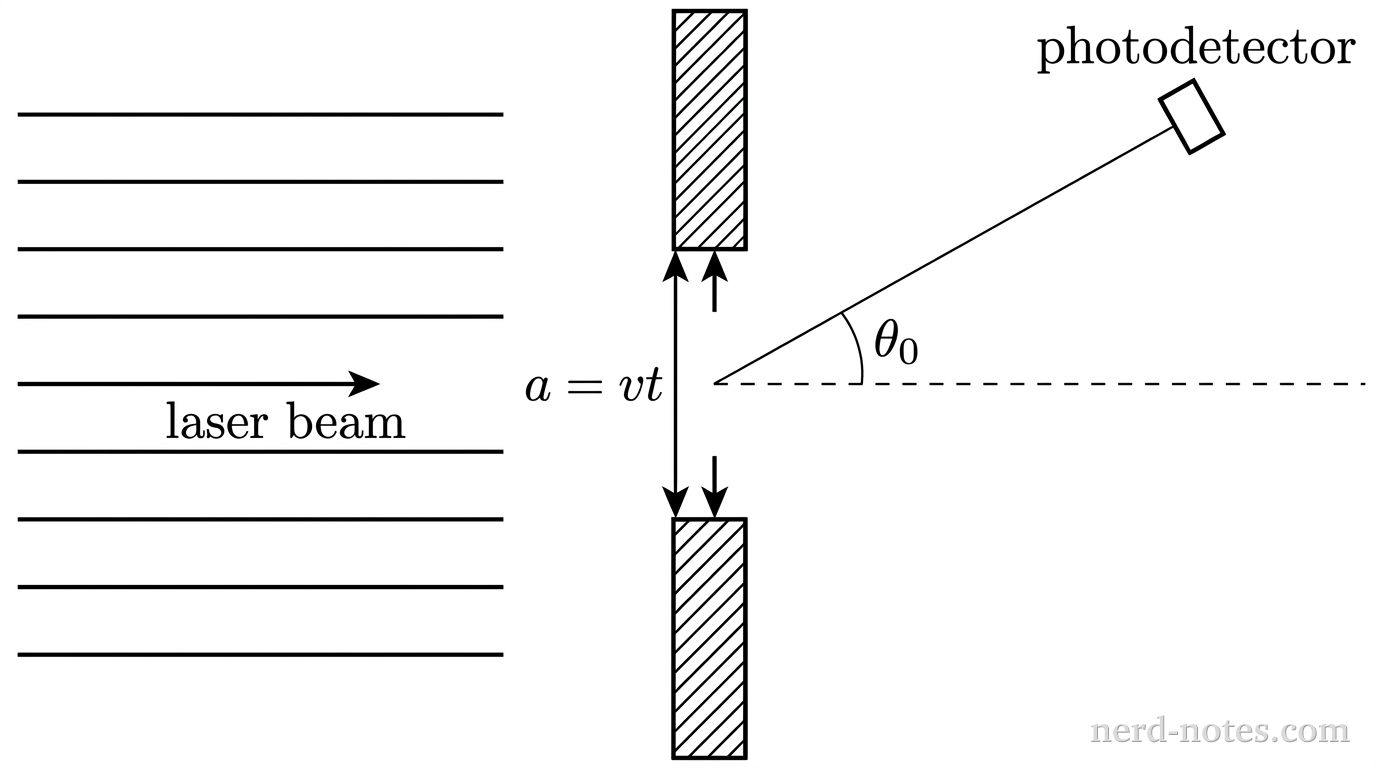

Experimental setup with an expanding single slit and fixed photodetector.
A monochromatic laser beam of wavelength \(\lambda\) is normally incident on a single slit. Starting at time \(t = 0\), the slit width \(a\) is expanded continuously from zero at a constant speed \(v\), such that \(a(t) = vt\). A small photodetector is fixed at a small, constant angle \(\theta_0 > 0\) relative to the central axis. Which of the following graphs best represents the light intensity \(I\) recorded by the photodetector as a function of time \(t\)?
