Electric potential vs. position along the circuit loop.
Electric potential vs. position along the circuit loop.

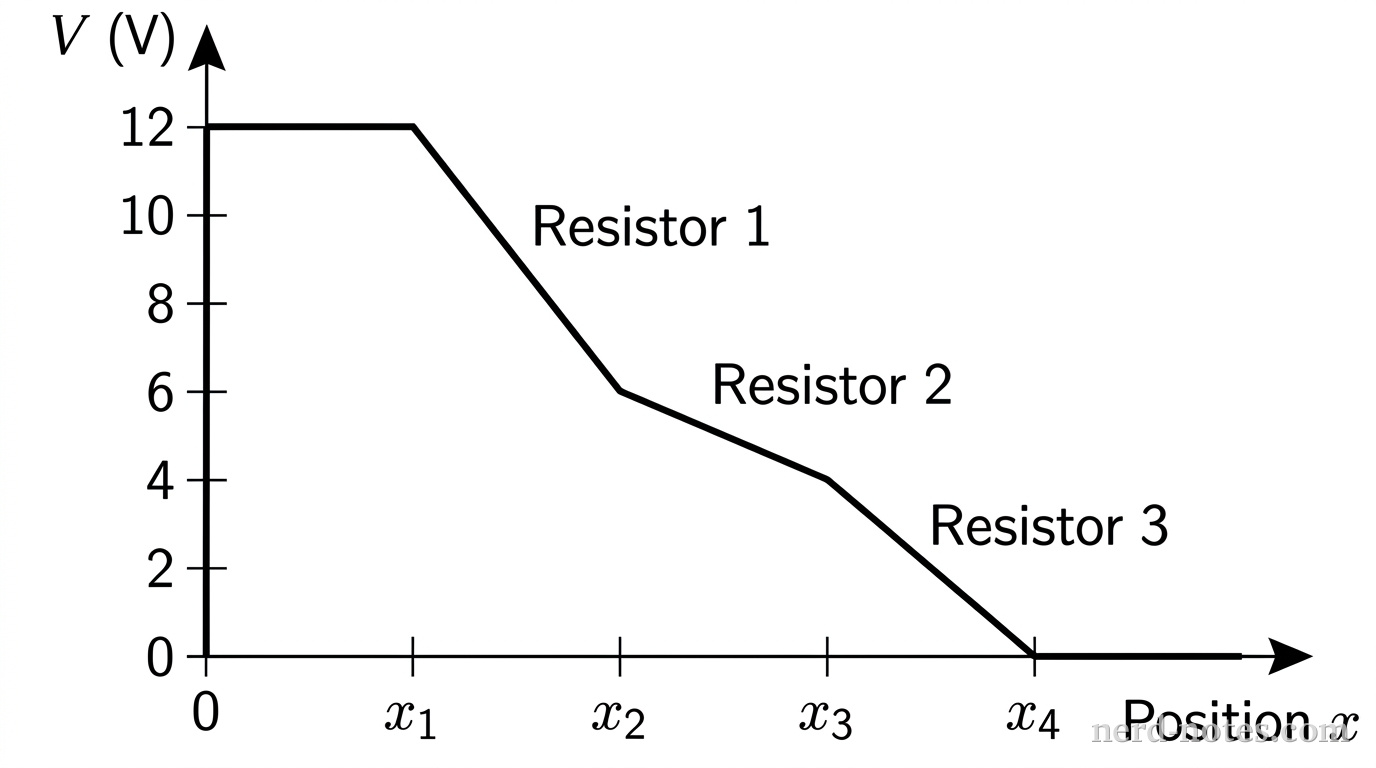

A circuit consists of an ideal battery and three resistors, labeled 1, 2, and 3, connected in a single continuous series loop. A graph of electric potential \(V\) as a function of position \(x\) along the circuit loop is shown. Which of the following correctly ranks the resistances \(R_1\), \(R_2\), and \(R_3\) of the three resistors?
