11.8 Resistor-Capacitor (RC) Circuits
AdvancedMCQMathematicalProportional Analysis18.3k
Two circuit diagrams side by side. Circuit A on the left shows a single loop containing a battery labeled \Delta V_0, a resistor labeled R, and two identical capacitors labeled C connected in series. Circuit B on the right shows a battery labeled \Delta V_0 and a resistor labeled R in the main line, connected to two parallel branches, each containing one capacitor labeled C. No other labels, lines, text, or axes appear.

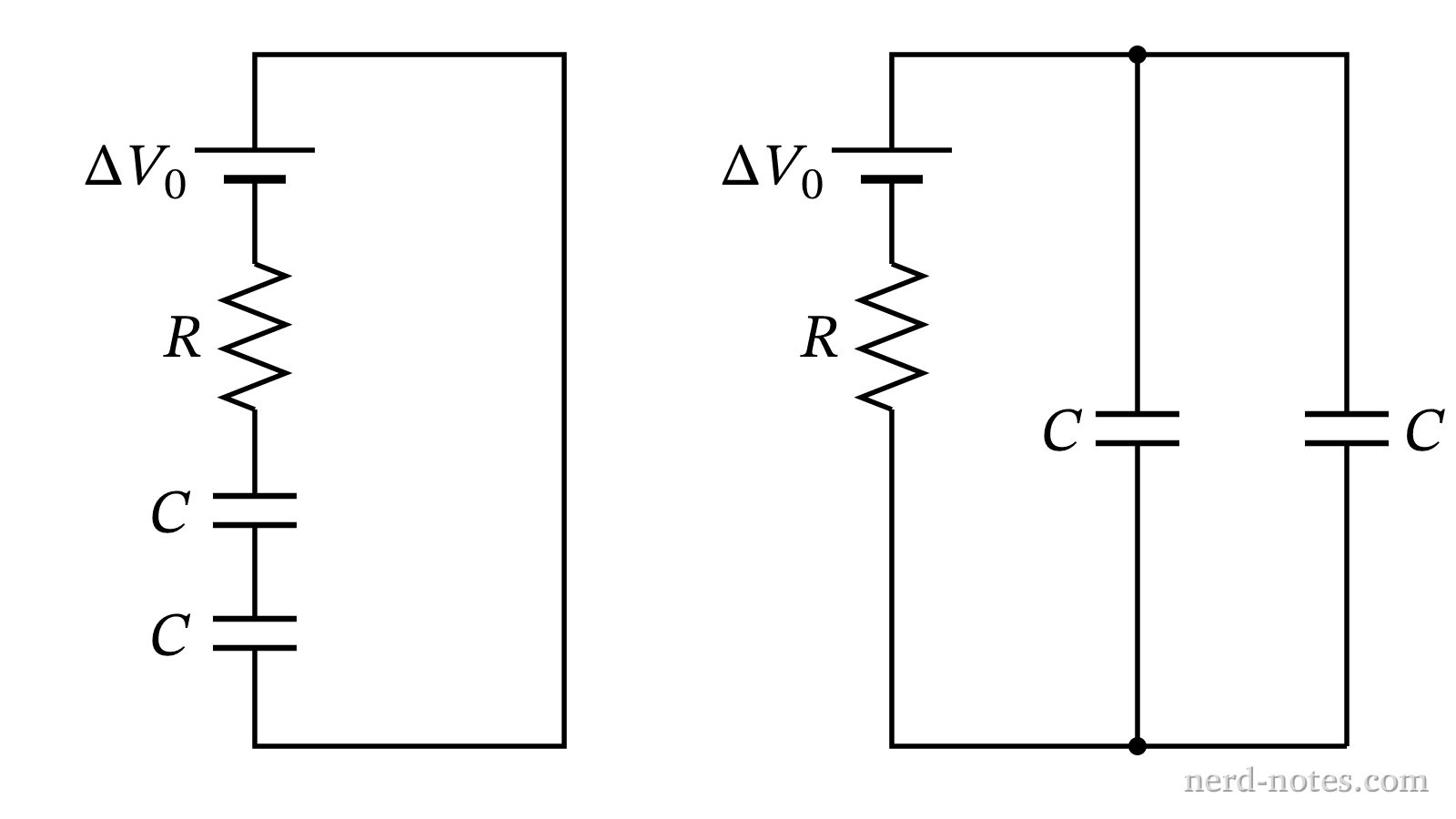

Schematics of the series and parallel capacitor circuit configurations.
Two identical uncharged capacitors, each of capacitance \(C\), are connected in series with a resistor of resistance \(R\) and an ideal battery of potential difference \(\Delta V_0\). The time required for the total electrostatic energy stored in the capacitor system to reach 50% of its maximum possible final value is \(t_{\text{series}}\). The circuit is then reconfigured so that the same two capacitors are connected in parallel with each other and in series with the same resistor and battery. The time required for the parallel system to reach 50% of its maximum possible final value is \(t_{\text{parallel}}\). What is the ratio \(\dfrac{t_{\text{parallel}}}{t_{\text{series}}}\)?
