11.8 Resistor-Capacitor (RC) Circuits
BeginnerMCQConceptual16.5k

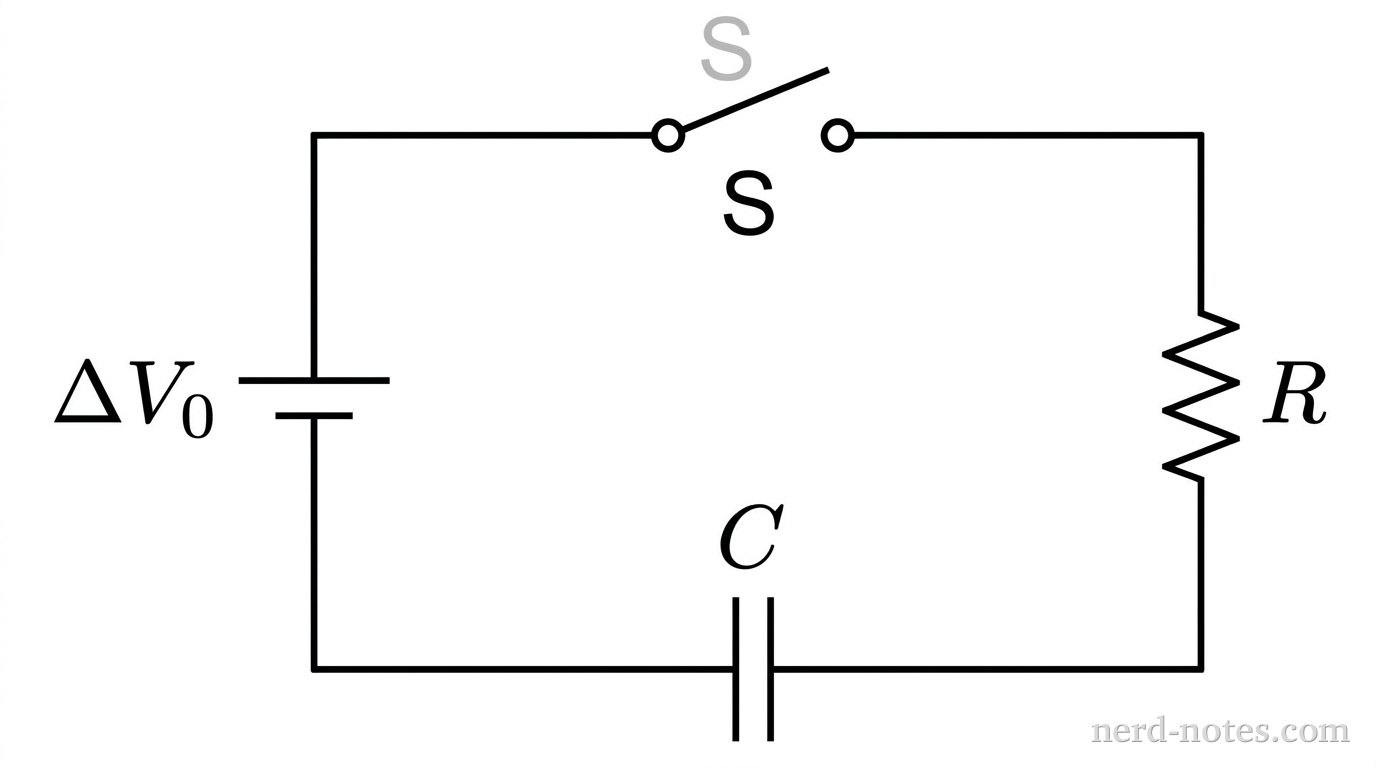

A schematic diagram of a single-loop DC circuit oriented as a rectangle. On the left vertical branch is an ideal battery labeled \(\Delta V_0\) with the longer positive terminal on top. On the top horizontal branch is an open switch S. On the right vertical branch is a resistor labeled R. On the bottom horizontal branch is an uncharged capacitor labeled C. Connecting wires complete the rectangular loop. No other labels or components appear.

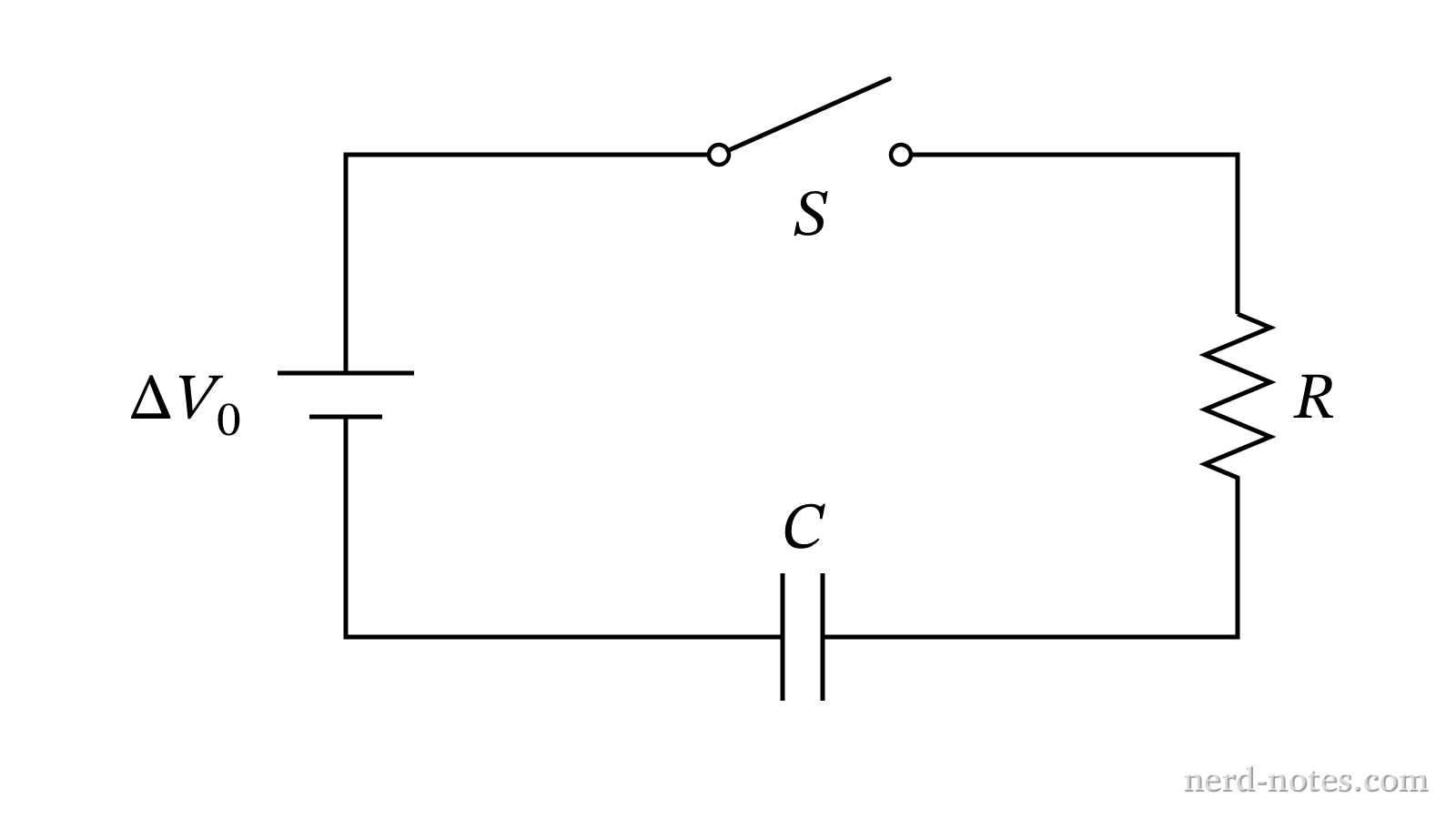

Series RC circuit with open switch.
A circuit is constructed using an ideal battery with potential difference \(\Delta V_0\), an open switch, a resistor of resistance \(R\), and an initially uncharged capacitor of capacitance \(C\), all connected in series. The switch is closed at time \(t = 0\). Which of the following correctly describes the current \(I\) through the resistor and the potential difference \(V_C\) across the capacitor as functions of time \(t\) for \(t > 0\), and provides a valid justification?
