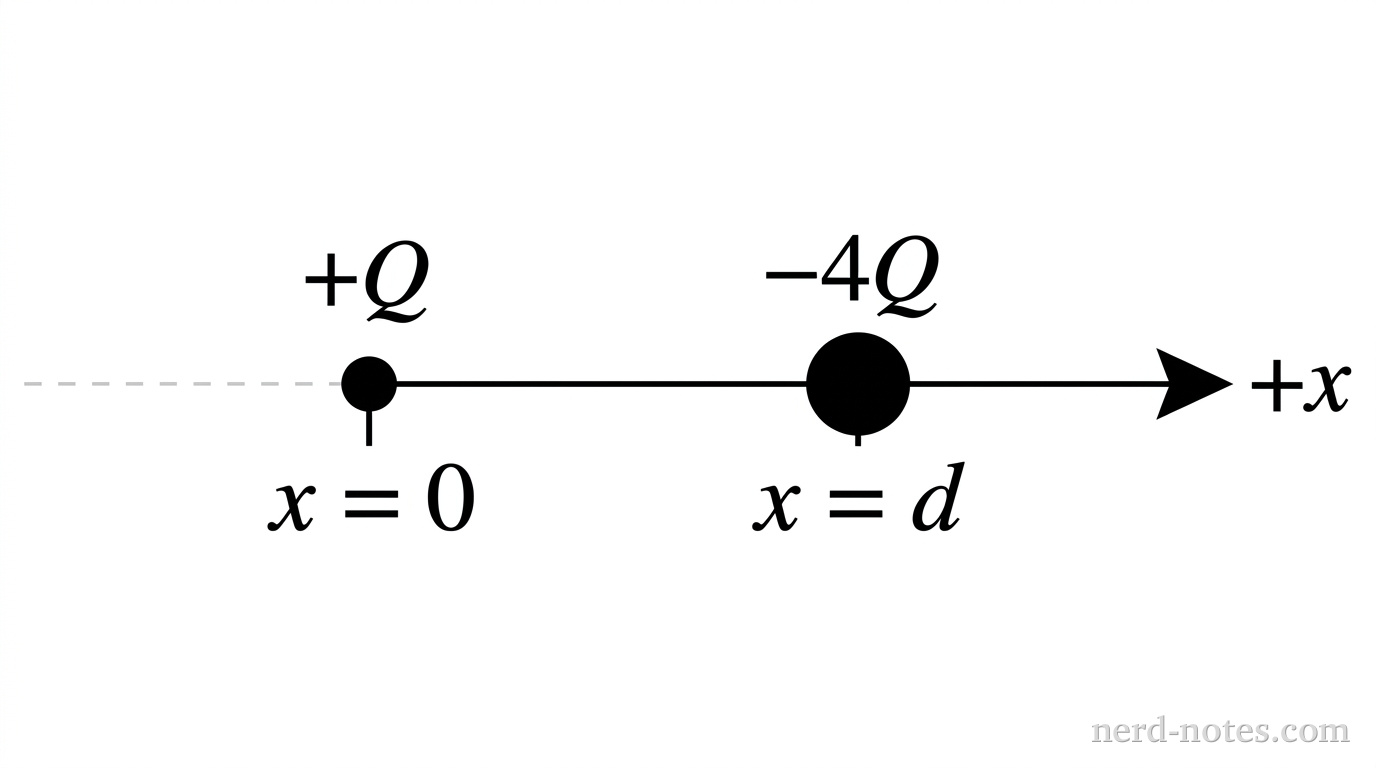

Two point charges are fixed on the $x$-axis: a charge $+Q$ is located at $x = 0$ and a charge $-4Q$ is located at $x = d$, where $d > 0$. Which of the following correctly identifies the position on the $x$-axis where the net electric field is zero, and the direction of the net electric field at $x = 2d$? • Nerd Notes

AP Physics

Unit 1 - Vectors and Kinematics

MCQ

Mathematical

Intermediate

Step	Reasoning
Identify the region on the $x$-axis where the net electric field can be zero.	The net electric field vanishes where the individual field vectors from $+Q$ and $-4Q$ have equal magnitudes and opposite directions. Between $0 < x d$, the $-4Q$ charge is both larger in magnitude and closer than $+Q$, so its field magnitude always strictly exceeds that of $+Q$. Thus, the neutral point must lie in the region $x < 0$.
Set up the magnitude equality for the electric fields in the region $x < 0$. \[ \dfrac{k Q}{x^2} = \dfrac{k (4Q)}{(d – x)^2} \]	For $x < 0$, the field from $+Q$ points in the $-x$-direction and the field from $-4Q$ points in the $+x$-direction. Equating their magnitudes gives the position of zero net field.
Solve for $x$ taking into account that $x < 0$. \[ \dfrac{1}{-x} = \dfrac{2}{d – x} \implies d – x = -2x \implies x = -d \]	Taking the square root of both sides yields $\dfrac{1}{\|x\|} = \dfrac{2}{d – x}$. Since $x < 0$, $\|x\| = -x$.
Calculate the net electric field vector at $x = 2d$ to determine its direction. \[ \vec{E}_{\text{net}}(2d) = \left( \dfrac{k Q}{(2d)^2} – \dfrac{k(4Q)}{d^2} \right) \hat{i} = \left( \dfrac{k Q}{4d^2} – \dfrac{4k Q}{d^2} \right) \hat{i} = -\dfrac{15 k Q}{4d^2} \hat{i} \]	To find the net field direction at $x = 2d$, sum the vector contributions from $+Q$ (at distance $2d$, pointing in the $+x$-direction) and $-4Q$ (at distance $d$, pointing in the $-x$-direction).
Combine both results to select the correct choice.	The net electric field vanishes at $x = -d$ and points in the $-x$-direction at $x = 2d$.

Why each choice is correct or incorrect:

(A) Incorrectly calculates the position as $x = -d/3$ by misapplying the algebraic sign when taking the square root, and incorrectly claims the field at $x = 2d$ points in the $+x$-direction.

(B) Correctly finds $x = -d$ for the zero-field position, but incorrectly assumes the field from $+Q$ dominates at $x = 2d$.

(C) This is the correct answer.

(D) Incorrectly places the zero-field point at $x = 3d$ where the field from $-4Q$ is actually 36 times stronger than that from $+Q$.

Need Help? Ask Phy To Explain
