9.2 Electric Potential
BeginnerMCQGraphical20.7k

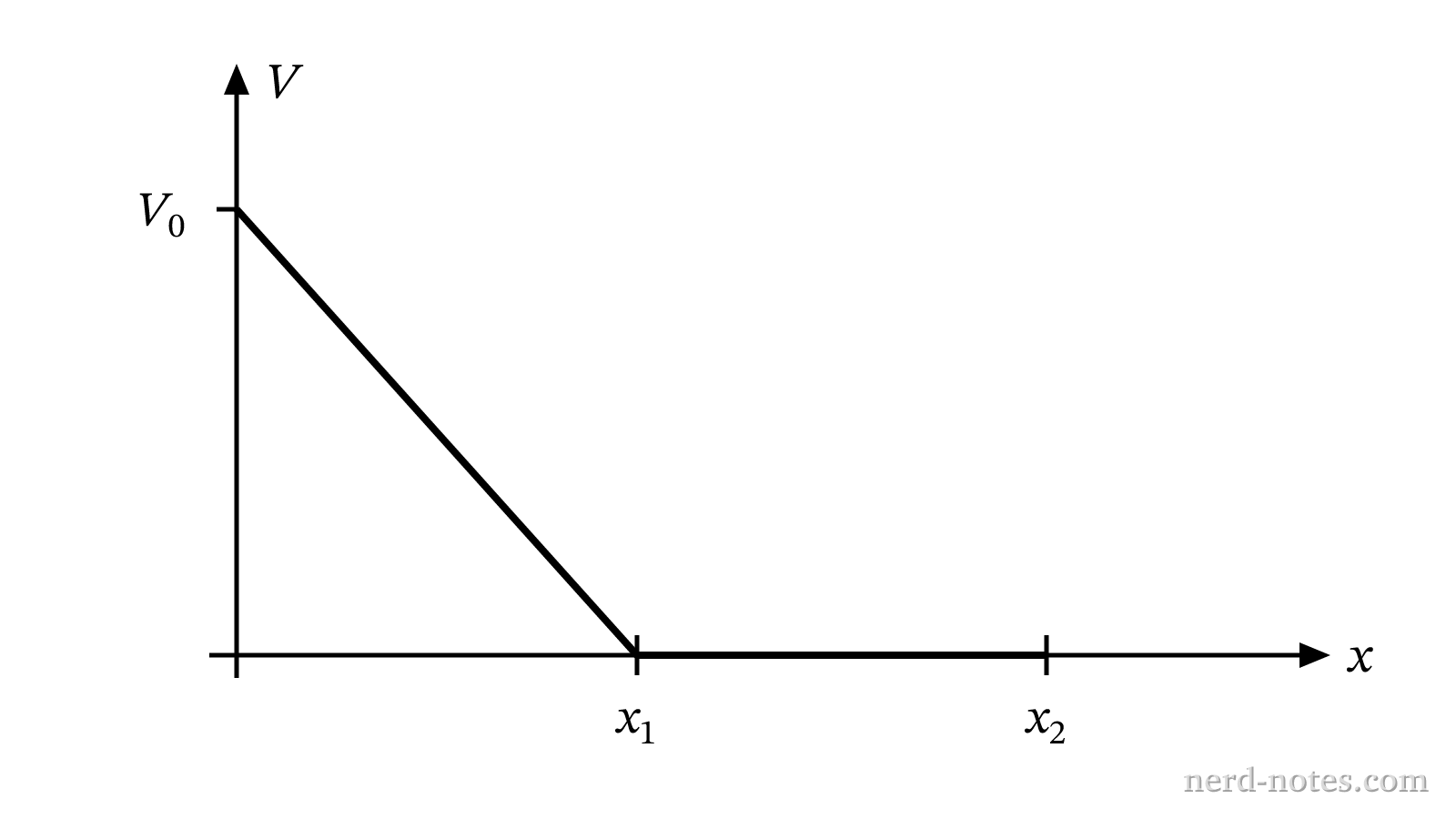

Electric potential V as a function of position x.
Electric potential V as a function of position x.
The graph shows the electric potential \(V\) as a function of position \(x\) along the x-axis in a region of space. Which of the following graphs best represents the x-component of the electric field \(E_x\) as a function of position \(x\) over the interval \(0 < x < x_2\)?
